View larger

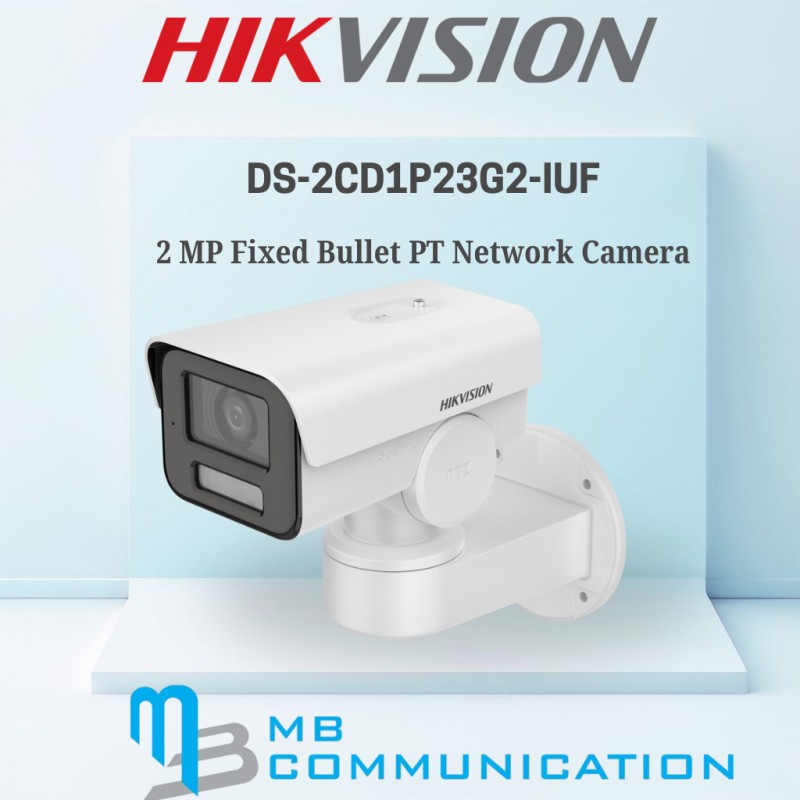

Hikvision DS-2CD1P23G2-IUF
DS-2CD1P23G2-IUF
New product
2 MP Fixed Bullet PT Network Camera
- High quality imaging with 2 MP resolution
- Pan and tilt ability that enables the camera to capture larger and interested areas
- Water and dust resistant (IP66)
- EXIR 2.0, advanced infrared technology with long IR distance
In Stock
WhatsApp
Rating:
Be the first to write a review!
More info
Product Information:
Hikvision DS-2CD1P23G2-IUF Features and Benefits
Features:
Hikvision DS-2CD1P23G2-IUF Description
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON); B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -100° to 100°; Tilt: -20° to 45° |
| Lens Type | Fixed focal lens, 2.8 mm & 4 mm optional |
| Focal Length & FOV | 2.8 mm: HFOV 109°, VFOV 60°, DFOV 129° 4 mm: HFOV 86°, VFOV 47°, DFOV 103° |
| Lens Mount | M12 |
| Aperture | Max. F2.0 |
| DORI (2.8 mm) | D: 40 m, O: 16 m, R: 8 m, I: 4 m |
| DORI (4 mm) | D: 55 m, O: 21 m, R: 11 m, I: 5 m |
| Illuminator | IR, up to 30 m, Smart IR, 850 nm |
| Video Frame Rate | 50 Hz: 25 fps (1080p, 720p) 60 Hz: 30 fps (1080p, 720p) |
| Sub-Stream | 50 Hz: 25 fps (640×480, 640×360) 60 Hz: 30 fps (640×480, 640×360) |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Bit Rate | 32 Kbps to 8 Mbps (CBR/VBR) |
| Audio | Mono (-U), noise filtering (-U), 8/16 kHz sampling |
| Audio Formats | G.711ulaw/alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Network Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Users | Up to 32 (Admin, Operator, User) |
| API Support | ONVIF (Profiles S/G/T), ISAPI, SDK |
| Web Browsers | IE10/11 (plug-in), Chrome 57+, Firefox 52+ |
| Image Features | 120 dB WDR, 3D DNR, BLC, HLC, Day/Night Auto/Schedule |
| Privacy Mask | 4 regions |
| Ethernet | 1 RJ45, 10M/100M self-adaptive |
| On-board Storage | Up to 256 GB (microSD/SDHC/SDXC, -F) |
| Built-in Mic | Yes (-U) |
| Events | Motion detection (human/vehicle), tamper, exception |
| Event Linkage | FTP upload, SD card (-F), email, recording (-F), snapshot |
| Power | 12 VDC ±25% (max 12 W), PoE (802.3af Class 3, max 12.5 W) |
| Material | Front cover: Metal; Body & bracket: Plastic |
| Dimensions | 197.1 × 105 × 225.4 mm (7.8" × 4.1" × 8.9") |
| Weight | 900 g (net), 1520 g (with package) |
| Operating Temp. | -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-condensing) |
| Storage Temp. | -30 °C to 60 °C, ≤95% RH (non-condensing) |
| Language | English, Ukrainian |
| Approvals | CE, FCC, RCM, IC, KC, UL, CB, BIS |
| Environmental | CE-RoHS, WEEE, Reach |
| Protection | IP66 |
