Hikvision DS-2CD1043G2-IUF View larger

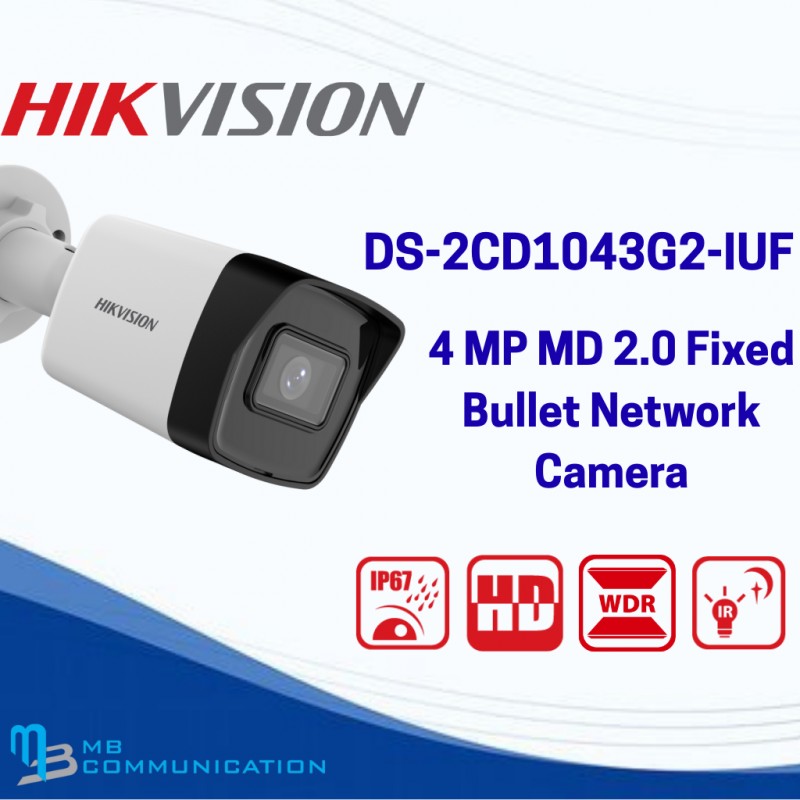

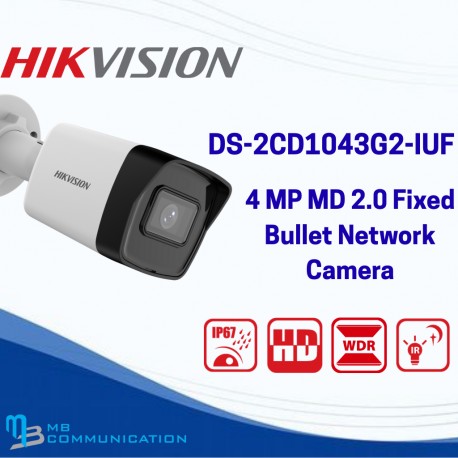

Hikvision DS-2CD1043G2-IUF

DS-2CD1043G2-IUF

New product

4 MP MD 2.0 Fixed Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Support Human and Vehicle Detection
  • Water and dust resistant (IP67)
  • Clear imaging even with strong back lighting due to 120 dB WDR

More details

In Stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1043G2-IUF Features and Benefits

Features:

Hikvision DS-2CD1043G2-IUF Description

CategorySpecification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°
Lens
Type Fixed focal lens, 2.8 mm & 4 mm optional
Focal Length & FOV 2.8 mm: H 99°, V 55°, D 116°4 mm: H 76°, V 41°, D 90°
Lens Mount M12
Iris Type Fixed
Aperture F2.0
DORI 2.8 mm: D 59 m, O 23 m, R 11 m, I 5 m4 mm: D 79 m, O 31 m, R 15 m, I 7 m
Illuminator
Type IR
Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 20 fps (2560 × 1440)25 fps (1920 × 1080, 1280 × 720)60 Hz: 20 fps (2560 × 1440)24 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Compression H.265+/H.265/H.264+/H.264, MJPEG
Video Bit Rate 32 Kbps–8 Mbps
Bitrate Control CBR/VBR
ROI 1 fixed region
Audio (-U model)
Type Mono sound
Noise Filtering Yes
Sampling Rate 8 kHz / 16 kHz
Compression G.711u, G.711a, G.722.1, G.726, MP2L2, PCM, AAC-LC
Bit Rate 16–160 Kbps depending on codec
Network
Security Password protection, authentication, watermark, audit log
Live View Up to 6 channels
API ONVIF (S, T, G – only -F model), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Users Up to 32 (Admin/Operator/User)
Clients iVMS-4200, Hik-Connect
Browser IE 10/11 (plug-in), Chrome 57+, Firefox 52+
WDR 120 dB
SNR ≥ 52 dB
Day/Night Switch Auto, Day, Night, Schedule
Enhancements BLC, HLC, 3D DNR
Settings Rotate, saturation, brightness, contrast, sharpness, gain, WB
Privacy Mask 4 programmable masks
Interface
Ethernet 1 × RJ45 10/100 Mbps
Storage -F: MicroSD/SDHC/SDXC up to 256 GB
Built-in Mic -U: Yes
Reset Key -F: Yes
Events
Basic Motion detection, video tampering, exception
Linkage FTP, SD upload (-F), email, recording (-F), capture
General
Power 12 VDC ±25% (5 W), PoE 802.3af (6.5 W)
Material Metal & Plastic
Dimensions 170.8 × 66 × 69.1 mm
Package Size 216 × 121 × 118 mm
Weight 270 g (net), 481 g (with package)
Operating Temp -30 °C to 60 °C, Humidity ≤ 95%
Storage Temp -30 °C to 60 °C, Humidity ≤ 95%
Language English, Ukrainian
Functions Heartbeat, anti-banding, mirror, password reset via email
Certifications
EMC FCC Part 15, CE, RCM, IC, KC
Safety UL 62368-1, IEC 62368-1, CE-LVD, BIS
Environment CE-RoHS, WEEE, Reach
Protection IP67
