Hikvision DS-2CD1P43G2-I(UF) View larger

Hikvision DS-2CD1P43G2-I(UF)

DS-2CD1P43G2-I(UF)

New product

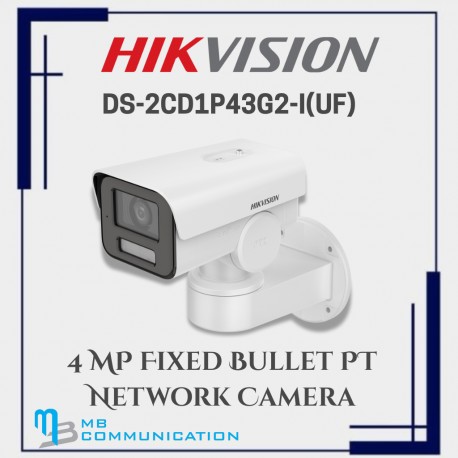

4 MP Fixed Bullet PT Network Camera

  • High quality imaging with 4 MP resolution
  • Pan and tilt ability that enables the camera to capture larger and interested areas
  • Water and dust resistant (IP66)
  • EXIR 2.0, advanced infrared technology with long IR distance

More details

In Stock

Whatsapp MB WhatsApp

Rs 18,510

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1P43G2-I(UF) Features and Benefits

Features:

Hikvision DS-2CD1P43G2-I(UF) Description

CategorySpecification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: -100° to 100°, Tilt: -20° to 45°
Lens
Lens Type Fixed focal lens, 2.8 mm or 4 mm optional
FOV (2.8 mm) Horizontal: 99°, Vertical: 55°, Diagonal: 116°
FOV (4 mm) Horizontal: 79°, Vertical: 43°, Diagonal: 92°
Lens Mount M12
Iris Type Fixed
Aperture Max. F2.0
DORI (Detection) 2.8 mm: D 59 m, O 23 m, R 11 m, I 5 m; 4 mm: D 79 m, O 31 m, R 15 m, I 7 m
Illuminator
Supplement Light Type IR
IR Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream (50Hz) 20 fps (2560×1440), 25 fps (1920×1080,1280×720)
Main Stream (60Hz) 20 fps (2560×1440), 24 fps (1920×1080,1280×720)
Sub Stream (50Hz) 25 fps (1280×720,640×480,640×360)
Sub Stream (60Hz) 24 fps (1280×720,640×480,640×360)
Compression Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG
Bit Rate 32 Kbps to 8 Mbps
H.264 Profiles Baseline, Main, High
H.265 Profiles Main Profile
ROI 1 fixed region for main stream
Audio (-U model) Mono sound, noise filtering, 8/16 kHz sampling, codecs: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Network
Security Password protection, watermark, authentication, audit log
Simultaneous Live View Up to 6 channels
Protocols TCP/IP, DHCP, DNS, HTTP, RTP/RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Users Up to 32 users (Admin, Operator, User)
Client Support iVMS-4200, Hik-Connect
Browsers IE 10/11 (plug-in), Chrome 57+, Firefox 52+
Image Features
WDR 120 dB
SNR ≥ 52 dB
Day/Night Switch Auto, Day, Night, Schedule
Enhancements BLC, HLC, 3D DNR
Privacy Mask 4 regions
Interface
Ethernet 1× RJ45 10/100M self-adaptive port
Storage (-F model) microSD/microSDHC/microSDXC up to 256 GB
Built-in Mic (-U) Yes
Reset Key (-F) Yes
Events
Basic Events Motion detection (human/vehicle), video tampering, exception
Linkage Upload to FTP/memory card, email, trigger recording, capture
General
Power 12 VDC ±25% (max. 12 W), PoE 802.3af Class 3 (max. 12.5 W)
Material Front: metal; Body & bracket: plastic
Dimensions 197.1×105×225.4 mm (7.8"×4.1"×8.9")
Package Dimensions 300×266×172 mm (11.8"×10.4"×6.8")
Weight 900 g (2.0 lb); with package: 1520 g (3.3 lb)
Storage Conditions -30°C to 60°C (-22°F to 140°F), ≤95% humidity (non-condensing)
Startup/Operating Temp -30°C to 60°C (-22°F to 140°F), ≤95% humidity
Language English, Ukrainian
General Functions Anti-banding, heartbeat, password reset via email
Certifications
EMC CE-EMC, FCC Part 15, IC, RCM, KC
Safety UL 62368-1, CB IEC 62368-1, CE-LVD EN 62368-1, BIS
Environmental CE-RoHS, WEEE, Reach
Protection IP66 (IEC 60529-2013)
