2. EZVIZ
  3. EZVIZ CS-H3c-R100-1J4WKFL
EZVIZ CS-H3c-R100-1J4WKFL View larger

EZVIZ CS-H3c-R100-1J4WKFL

CSH3C

New product

H3c 2K⁺

Wi-Fi Smart Home Camera

More details

This product is no longer in stock

Rs 0

More info

Product Information:

EZVIZ CS-H3c-R100-1J4WKFL Features and Benefits

Features:

EZVIZ CS-H3c-R100-1J4WKFL Description

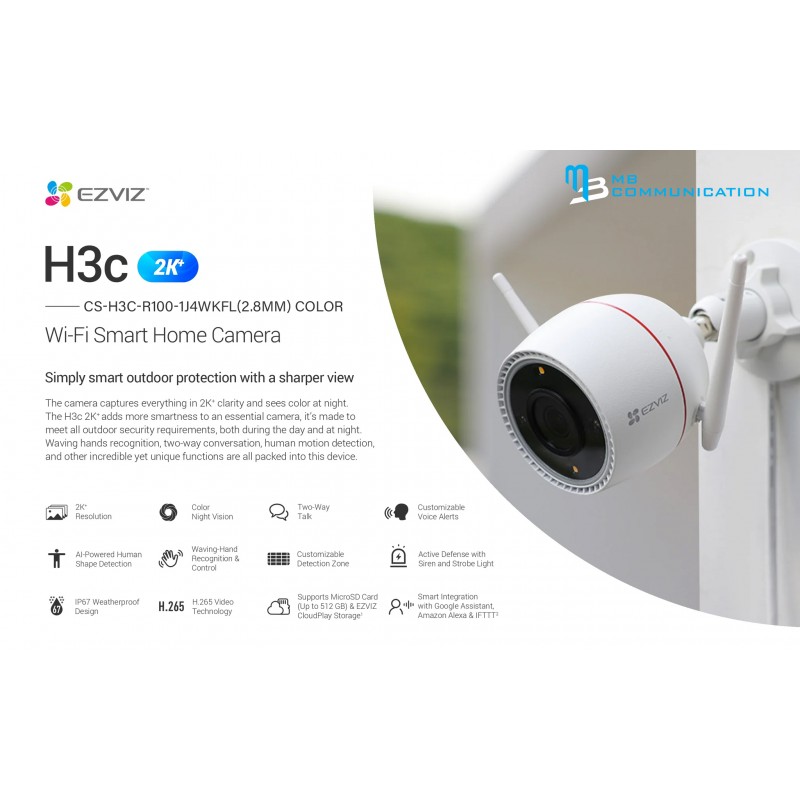

Simply smart outdoor protection with a sharper view

The camera captures everything in 2K⁺ clarity and sees color at night. The H3c 2K⁺ adds more smartness to an essential camera, it’s made to meet all outdoor security requirements, both during the day and at night. Waving hands recognition, two-way conversation, human motion detection, and other incredible yet unique functions are all packed into this device.

Make every detail count with impressive 2K⁺ resolution

When it comes to reliable home protection, details always come first. The H3c 2K⁺ offers superior video quality in stunning 2K⁺ resolution. It ensures that you stay well informed of every important activity happening at home.

See in color, even at night

Unsatisfied with blurry, overexposed black-and-white images during the nighttime? The H3c 2K⁺ makes late-night protection easier by restoring colors and details. In addition to a pretty sharp IR night vision, the camera can light up the environment with two built-in spotlights to render color night vision.

Communications can be this easy

Enjoy two-way audio by simply using your smartphone. Or, pre-record a 10-second voice message that automatically plays upon human motion detection.

A vigilant guard who works around the clock

The H3c 2K⁺ integrates EZVIZ’s beloved active defense function to provide an extra layer of protection. Upon detection of intruders, the camera will set off a loud siren and flash two spotlights⁴ to warn them away.

Protection lasts, even in harsh weathers

Thanks to its well-built camera body, the H3c 2K⁺ is IP67-rated to withstand even the toughest weather conditions – whether it’s rainy, stormy or snowy.

Smart integration, hands-free control

You can integrate the H3c 2K⁺ to your existing smart home system. Voice-enable the live viewing with “Hey Google” or “Alexa” to check what’s happening on a bigger screen.

Extra-Large, safe storage options that you can trust

You can secure your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted cloud storage¹ .

Enhanced viewing pleasure with smaller video files

Compared against the prevailing H.264 video compression technology, H.265 creates a more fluid viewing experience with recorded footage. Meanwhile, you won’t have to worry about large video files taking up too much of your storage space – H.265 technology can reduce their sizes by up to 50%⁵ .

We do our best to protect your data and privacy

We design the product to respectfully protect your data and privacy. You can also set up no filming zones⁶ to make sure recording only happens when it's appropriate and allowed.

Specifications
Model CS-H3c-R100-1J4WKFL
Camera
Image Sensor 1/2.7”Progressive Scan CMOS
Minimum Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
IR Night Vision Distance Up to 98 ft / 30 m
Shutter Speed Self-adaptive shutter
Lens

4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal)

2.8mm@F2.0，view angle: 100° (Horizontal), 125°(Diagonal)
Lens Mount M12
DNR 3D DNR
WDR Digital WDR
Day / Night Switch IR-Cut filter with auto-switching
Video & Audio
Max. Resolution 4MP, 2560 × 1440
Frame Rate Max: 30fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
Video Bit Rate Quad HD; Hi-Def; Full HD; Standard. Adaptive bit rate
Audio Bit Rate Self-Adaptive
Max. Bitrate 2 Mbps
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
Wi-Fi Pairing AP Pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Wired Network RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Function
Detection Human Shape Detection, Motion Detection Waving-Hand Detection
Customized Alert Area Supports
Integration Works with Alexa, Google Assistant, IFTTT
General Function Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
Storage
Local Storage Supports microSD card (Up to 512 GB)
Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)
IP Grade IP67
Power Supply DC 12V / 1A
Power Consumption MAX. 9W
Dimensions 72 × 72 × 157 mm (2.83 × 2.83 × 5.98 inch)
Packaging Dimensions 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
Weight(With Package) 539 g (19.01 oz)
Net Weight 330 g (11.64 oz)
In the box
In the box H3c 2K+ Camera
Drill Template
Screw Kit
Waterproof Kit
Power Adapter
Regulatory Information
Quick Start Guide
Certifications
Certifications CE / FCC / UKCA / UL / WEEE / RoHS / REACH
