DS-2DE2A404IW-DE3(S6)

New product

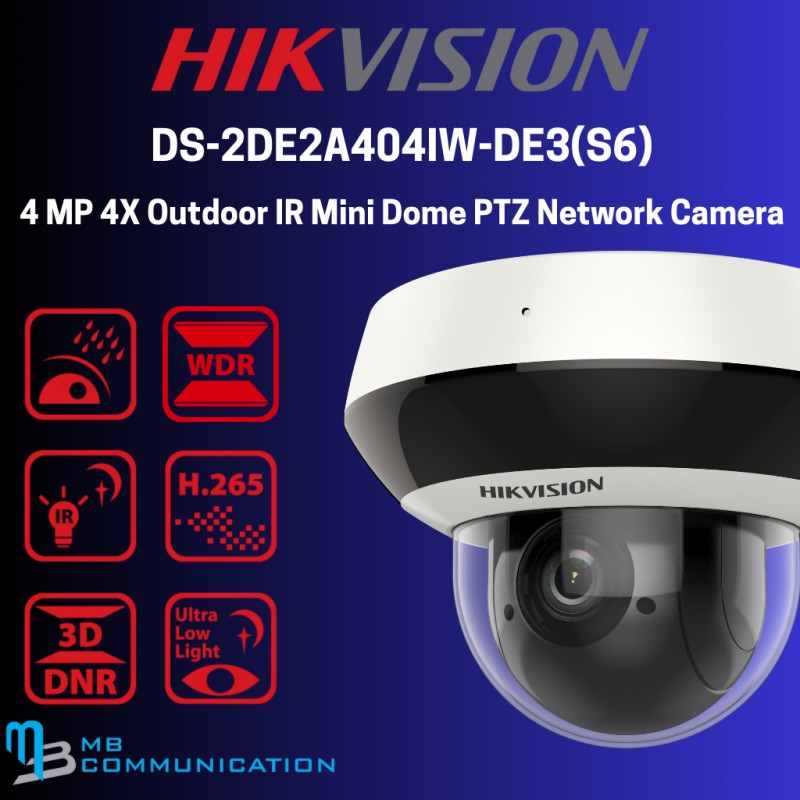

4 MP 4X Outdoor IR Mini Dome PTZ Network Camera

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest

More details

In Stock

Whatsapp MB WhatsApp

Rs 36,400

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2DE2A404IW-DE3(S6) Features and Benefits

Features:

Hikvision DS-2DE2A404IW-DE3(S6) Description

CategorySpecification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 4× optical, 16× digital
Slow Shutter Yes
Lens
Focal Length 2.8 – 12 mm
Field of View H: 96.7°–31.6°; V: 51.1°–17.8°; D: 115.1°–36.3°
Focus Auto, Semi-auto, Manual
Aperture Max. F1.5
Zoom Speed Approx. 2 s
Illuminator
Supplement Light Type IR
IR Range Up to 20 m
Smart IR Yes
IR Wavelength 850 nm
PTZ
Pan Range 0° – 355°
Tilt Range 0° – 90°
Pan Speed 0.1°–100°/s (configurable), Preset: 100°/s
Tilt Speed 0.1°–100°/s (configurable), Preset: 100°/s
Presets 300
Preset Freezing Yes
Park Action Preset
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task Preset, Dome Reboot, Dome Adjust
Power-off Memory Yes
Video
Main Stream 50Hz: 25fps (2560×1440, 1920×1080, 1280×960, 1280×720) 60Hz: 30fps (same resolutions)
Sub-Stream 50Hz: 25fps (704×576, 640×480, 352×288) 60Hz: 30fps (704×480, 640×480, 352×240)
Third Stream 50Hz: 25fps (704×576, 640×480, 352×288) 60Hz: 30fps (704×480, 640×480, 352×240)
Compression H.265+/H.265/H.264+/H.264 (main), H.265/H.264/MJPEG (sub/third)
H.264 Profile Baseline / Main / High
H.265 Profile Main
SVC Supported (H.264 & H.265)
ROI 8 fixed regions/stream
Audio
Compression G.711alaw/ulaw, G.722.1, G.726, MP2L2, PCM, AAC
Bitrate 64Kbps (G.711), 16Kbps (G.722.1), 16Kbps (G.726), 32–192Kbps (MP2L2), 32Kbps (PCM), 16–64Kbps (AAC)
Sampling Rate AAC & MP2L2: 16/32/48 kHz; PCM: 8/16/32/64 kHz
Noise Filtering Yes
Network
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP/RTCP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
API ONVIF (Profile S/G/T), ISAPI, SDK, ISUP
Users Up to 32; Levels: Admin / Operator / User
Security Password protection, HTTPS, 802.1X, TLS 1.2, IP filter, watermark, host/MAC authentication, security log
Storage NAS (NFS, SMB/CIFS), microSD/SDHC/SDXC (up to 256GB), ANR
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser IE 10–11, Chrome 57+, Firefox 52+, Safari 11+
Image Settings Saturation, brightness, contrast, sharpness, gain, WB adjustable via client/web
Switch Modes Day, Night, Auto, Schedule
WDR 120 dB
SNR >52 dB
Defog Digital Defog
Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 polygon masks (color/mosaic)
Regional Focus/Exposure Supported
Interface
Ethernet 1 × RJ45 10M/100M self-adaptive port
Storage Built-in MicroSD slot (up to 256 GB)
Audio I/O 1 input (line in), 1 output (line out)
Built-in Mic Yes, 5 m radius
Reset Yes
Power Output 12 VDC, max. 60 mA
Events
Basic Events Motion detection, video tampering, exception
Smart Events Face detection, line crossing, intrusion, region entrance/exit, unattended baggage, object removal, audio exception
Linkage Upload FTP/NAS/SD, notify center, email, recording, PTZ actions
General
Power 12 VDC (Max 9.2 W), PoE (802.3af)
Dimensions Ø 130.7 × 101.7 mm (Ø 5.15" × 4.00")
Weight 530 g (1.17 lb)
Operating Conditions -20 °C to 60 °C (-4 °F to 140 °F), ≤90% RH (non-condensing)
Functions Mirror, password protection
Protection IP66, IK10, TVS 4000V lightning/surge/voltage transient
