  3. DS-2TD2628T-7/QA

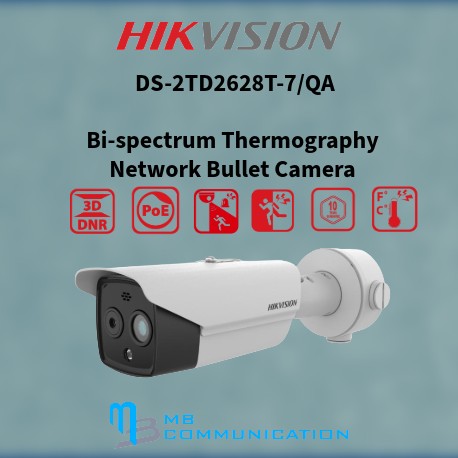

DS-2TD2628T-7/QA View larger

DS-2TD2628T-7/QA

DS-2TD2628T-7/QA

New product

  • Hikvision Dual IP Thermal Camera PRO Range
  • Thermal sensor 256x192 VOx | Lens 6.9 mm
  • Optical sensor 1/2.7” 4 MP | 6.3 mm Lens
  • Thermal sensitivity ≤ 40mK
  • Preventive fire detection and alarm

More details

In Stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

DS-2TD2628T-7/QA Features and Benefits

Features:

DS-2TD2628T-7/QA Description

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution256 x 192
  • Pixel Pitch12 μm
  • Spectral Range8 μm to 14 μm
  • NETD ≤ 40 mK (@25° C,F# = 1.0)
  • Focal Length6.9 mm
  • IFOV1.74 mrad
  • ApertureF1.0
  • Field of View24.9° × 18.7° (H × V)
  • Min. Focusing Distance1 m
  • Digital Zoom×2, ×4
  • Optical Module
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Resolution 2688 × 1520
  • Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
  • Field of View53.0° ×28.0° (H × V)
  • Focal Length6.4 mm
  • Shutter Speed1 s to 1/100,000 s
  • White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
  • Day & Night ModeIR Cut Filter with Auto Switch
  • WDR120 dB
  • ApertureF 1.6
  • Image Effect
  • Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
  • Target ColorationYes. Supported in white hot and black hot mode.
  • Illuminator
  • IR Distance Up to 30 m
  • IR Intensity and AngleAutomatically adjusted
  • Audible and Visual Alarm
  • White Light RangeUp to 30 m
  • Visual AlarmYes. White light alarm with adjustable flashing frequencies
  • Audio alarm

    Yes, for three types of audible alarm (VCA and Temperature Exception)

    3 preset voice alerts (one for each)

    6 importable user-defined voice alerts (6 options shared in the two types)

  • Smart Function
  • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range -20°C to 550°C (-4°F to 1022°F);
  • Temperature Accuracy Max (±2°C, ±2 %)
  • General FunctionFire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter
  • Video and Audio
  • Main Stream

    Thermal:

    25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)

    Optical:

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-stream

    Thermal:

    25 fps (704 × 576, 640 × 512, 320 × 240)

    Optical:

    50 Hz: 25 fps (704 × 576, 352 × 288)

    60 Hz: 30 fps (704 × 480, 352 × 240)

  • Video Compression

    Main Stream: H.265/H.264

    Sub-Stream: H.265/H.264/MJPEG

  • Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • Network
  • Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTPP,TLS
  • Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T)
  • Simultaneous Live ViewUp to 20 channels
  • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
  • SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Client iVMS-4200, Hik-Connect
  • Interface
  • Alarm Input2, alarm input (0-5 VDC)
  • Alarm Output2, alarm output (alarm response actions configurable)
  • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input

    1, 3.5 mm Mic in/Line in interface

    Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

  • Audio Output Linear level, impedance: 600 Ω
  • Communication Interface

    1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

    1, RS-485 interface (half duplex)

  • Analog Output 1.0V [p-p]/75Ω, PAL/NTSC/BNC
  • General
  • Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply

    24 VAC ± 25%, 12 VDC ± 25%, 24VDC ± 25%, two-core terminal block

    PoE (802.3af, class 3)

  • Power Consumption

    24 VAC ± 25%: 0.8 A, Max.8.5 W

    12 VDC ± 25%: 0.7 A, Max.8.5 W

    24VDC ± 25%: 0.22A to 0.75 A, max. 18W

    PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W

  • Working Temperature/Humidity

    Temperature: -40°C to 65°C (-40°F to 149°F)

    Humidity: 95% or less

  • Protection Level

    IP67 Standard

    TVS 4000V lightning protection, surge protection, voltage transient protection

    IK10-rated housing

  • Dimensions321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
  • 1550 g (3.41 lb)
  • Detection Range Table/Smart Function Range
  • VCA Range for Humans56 m
  • VCA Range for Vehicles168 m
  • Approval
  • EMC

    CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC (ICES-003: Issue 7)

    KC (KSC9832: 2019; KSC9835: 2019)

    FCC (ANSI C63.4;FCC Part15 sub B)

  • Safety

    CB: IEC 62368-1: 2014+A11;

    CE-LVD: EN 62368-1: 2014/A11: 2017;

    UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)

  • Environment

    CE-RoHS：2011/65/EU,

    WEEE: 2012/19/EU,

    Reach：Regulation(EC) No 1907/2006

  • Protection

    IP67: IEC 60529-2013

    IK10: IEC 62262-2002
