2. HIK VISION
  3. DS-2TD2537T-10/Q
DS-2TD2537T-10/Q View larger

DS-2TD2537T-10/Q

DS-2TD2537T-10/Q

New product

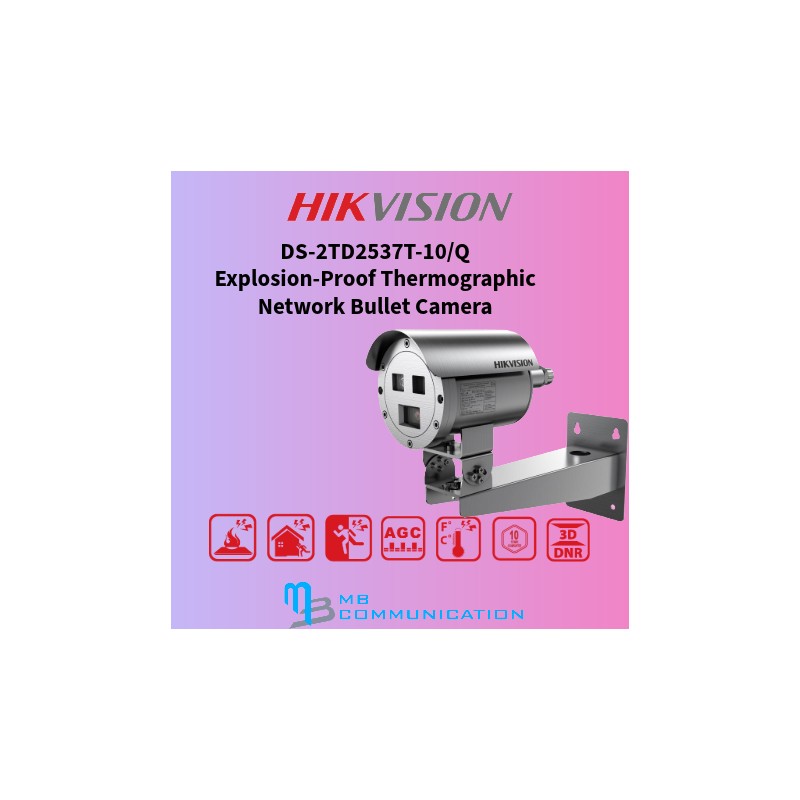

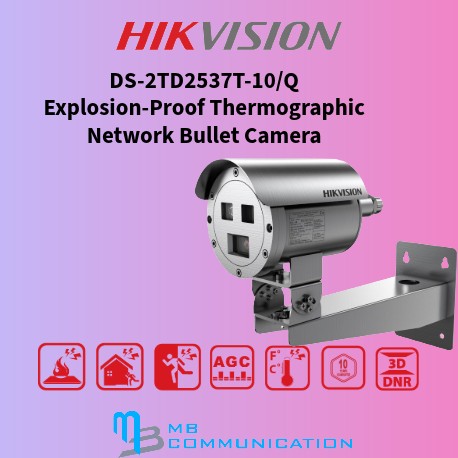

Explosion-Proof Thermographic Network Bullet Camera

  • High sensitivity sensor with 384 x 288 resolution
  • NETD is less than 35 mk (@25° C, F#=1.0)
  • Supports contrast adjustment
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Up to 15 palettes of adjustable color

More details

In Stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

DS-2TD2537T-10/Q Features and Benefits

Features:

DS-2TD2537T-10/Q Description

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution256 x 192
  • Pixel Pitch12 μm
  • Spectral Range8 μm to 14 μm
  • NETD ≤ 40 mK (@25° C,F# = 1.0)
  • Focal Length9.7 mm
  • Focus ModeAthermalized
  • IFOV1.24 mrad
  • Aperture F1.0
  • Field of View18.0° × 13.5° (H × V)
  • Min. Focusing Distance1.5 m
  • Digital Zoom×2, ×4
  • Optical Module
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Resolution2688 × 1520
  • Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
  • Field of View 39.4°(H) x22.1°(V)
  • Focal Length8 mm
  • ApertureF 1.6
  • Shutter Speed1 s to 1/100,000 s
  • White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
  • Day & Night Mode IR Cut Filter with Auto Switch
  • WDR120 dB
  • Image Effect
  • Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
  • Target Coloration Yes. Supported in white hot and black hot mode
  • Illuminator
  • IR Distance Up to 30 m
  • IR Intensity and Angle Automatically adjusted
  • Audible and Visual Alarm
  • White Light Range Up to 30 m
  • Visual Alarm

    Yes. White light alarm with adjustable flashing frequencies

  • Audio alarm

    Yes, for three types of audible alarm (VCA and Temperature Exception)

    3 preset voice alerts (one for each)

    6 importable user-defined voice alerts (6 options shared in the two types)

  • Smart Function
  • VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range-20°C to 150°C (-4°F to 302°F)
  • Temperature Accuracy ± 8°C (± 14.4°F)
  • Video and Audio
  • Main Stream

    Thermal:

    25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)

    Optical:

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-stream

    Thermal:

    25 fps (704 × 576, 640 × 512, 320 × 240)

    Optical:

    50 Hz: 25 fps (704 × 576, 352 × 288)

    60 Hz: 30 fps (704 × 480, 352 × 240)

  • Video Compression

    Main Stream: H.265/H.264

    Sub-Stream: H.265/H.264/MJPEG

  • Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • Network
  • Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
  • Network StorageMicroSD/SDHC/SDXC card (32G inside) (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • API ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
  • Simultaneous Live ViewUp to 20 channels
  • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
  • Security User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • Client iVMS-4200, Hik-Connect
  • Interface
  • Alarm Input2, alarm input (0-5 VDC)
  • Alarm Output 2, alarm output (alarm response actions configurable)
  • Alarm ActionLinkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
  • Audio Input

    1, 3.5 mm Mic in/Line in interface

    Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%

  • Audio OutputLinear level, impedance: 600 Ω
  • Communication Interface

    1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

    1, RS-485 interface (half duplex)

  • General
  • Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply

    12 VDC ± 25%, φ 5.5 mm coaxial power plug

    PoE (802.3af, class 3)

  • Power Consumption

    12 VDC ± 25%: 0.83 A, Max. 10 W

    PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.18 A, Max. 10 W

  • Working Temperature/Humidity

    Temperature: -40°C to 65°C (-40°F to 149°F)

    Humidity: 95% or less

  • Protection Level

    IP67 Standard ,IK10-rated housing

    TVS 4000V lightning protection, surge protection, voltage transient protection

  • Dimensions 208.9 mm × 106 mm × 105.2 mm (8.22" × 4.17" × 4.14")
  • Weight1332 g (2.94 lb)
  • Mobile Communication
  • SIM Card TypeMicroSIM
  • Frequency

    LTE FDD: B1/2/3/4/5/7/8/12/17/28/66

    LTE TDD: B38/40

    WCDMA: B1/2/3/4/5/8

    GSM/GPRS/EDGE: 850/900/1800MHz

  • StandardLTE FDD/LTE TDD/WCDMA/GSM/GPRS/EDGE
