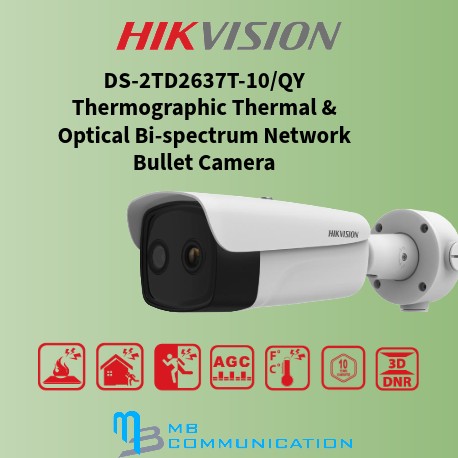

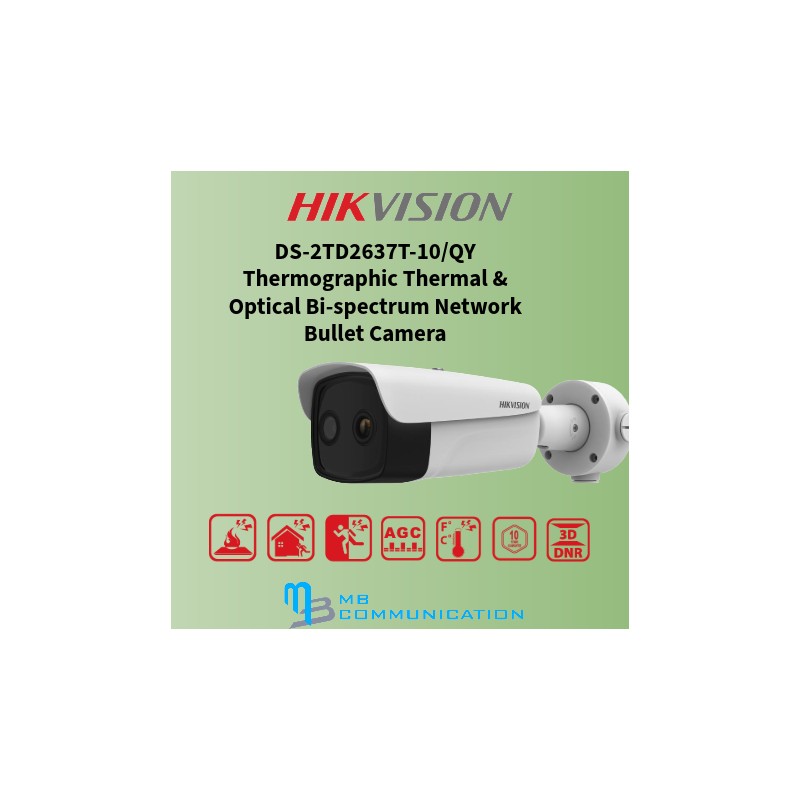

Thermographic Thermal & Optical Bi-spectrum Network Bullet Camera

  • 384 × 288 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -20 °C to 550 °C (-4 °F to 1022 °F), Max. (± 2 °C, ± 2%)

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

DS-2TD2637T-10/QY Features and Benefits

Features:

DS-2TD2637T-10/QY Description

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution384 x 288
  • Pixel Pitch17 μm
  • Spectral Range8 μm to 14 μm
  • Focal Length6.5 mm
  • IFOV2.62 mrad
  • ApertureF1.0
  • Field of View60° × 44.1° (H × V)
  • Min. Focusing Distance0.6 m
  • Digital Zoom×2, ×4
  • Optical Module
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Resolution 2688 × 1520
  • Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
  • Field of View 84.4° × 51.1° (H × V)
  • Focal Length4 mm
  • Shutter Speed1 s to 1/100,000 s
  • White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
  • Day & Night ModeIR Cut Filter with Auto Switch
  • WDR120 dB
  • ApertureF 1.6
  • Image Effect
  • Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
  • Picture in Picture Display partial image of thermal channel on the full screen of optical channel
  • Target ColorationYes. Supported in white hot and black hot mode.
  • Illuminator
  • IR Distance Up to 40 m
  • IR Intensity and AngleAutomatically adjusted
  • Smart Function
  • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range- 20 °C to 550 °C (- 4 °F to 1022 °F)
  • Temperature AccuracyMax (± 2 °C, ±2 %)
  • Video and Audio
  • Main Stream

    Optical channel

    50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    Thermal channel

    25 fps (1280×720P， 704×576， 352×288， 384×288)

  • Sub-stream

    Optical channel

    50 HZ: 25 fps (704 × 576, 352 × 288)

    60 HZ: 30 fps (704 × 480, 352 × 240)

    Thermal channel

    25 fps (704 × 576, 352 × 288, 384 × 288)

  • Video Compression

    Main Stream: H.265/H.264

    Sub-Stream: H.265/H.264/MJPEG

  • Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • Network
  • Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL
  • Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
  • Simultaneous Live ViewUp to 20 channels
  • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
  • SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Client iVMS-4200, Hik-Connect
  • Interface
  • Alarm Input2, alarm input (0-5 VDC)
  • Alarm Output2, alarm output (alarm response actions configurable)
  • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input

    1, 3.5 mm Mic in/Line in interface

    Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

  • Audio Output Linear level, impedance: 600 Ω
  • Communication Interface

    1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

    1, RS-485 interface (half duplex)

  • Analog Output 1.0V [p-p]/75Ω, PAL/NTSC/BNC
  • General
  • Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply

    24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block

    PoE (802.3af, class 3)

  • Power Consumption

    24 VAC ± 25%: 0.8 A to 0.5 A, max. 9.5 W

    12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W

    24VDC: 0.4A, max 9.5W

    PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W

  • Working Temperature/Humidity

    Temperature: -40°C to 65°C (-40°F to 149°F)

    Humidity: 95% or less

  • Protection Level

    IP67 Standard

    TVS 4000V lightning protection, surge protection, voltage transient protection

    IK10-rated housing

  • Dimensions376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
  • Weight1.82 kg (4.01 lb)
