  5. Hikvision DS-2CD1123G2-LIU
Hikvision DS-2CD1123G2-LIU View larger

Hikvision DS-2CD1123G2-LIU

DS-2CD1123G2-LIU

New product

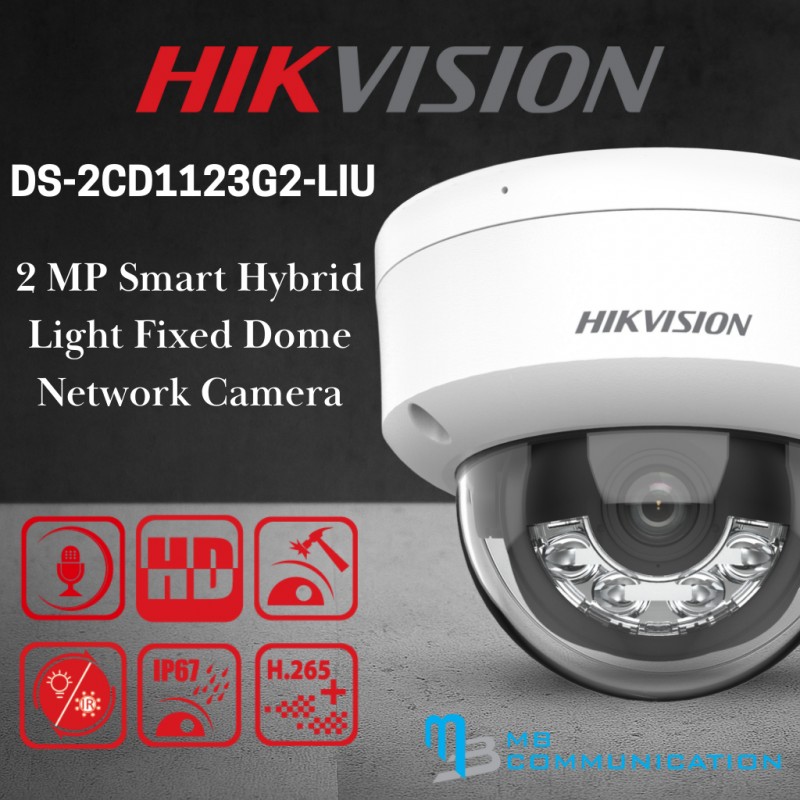

2 MP Smart Hybrid Light Fixed Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Built-in microphone for real-time audio security
  • Efficient H.265+ compression technology

More details

In Stock

Whatsapp MB WhatsApp

Rs 9,670

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1123G2-LIU Features and Benefits

Features:

Hikvision DS-2CD1123G2-LIU Description

CategorySpecification
Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–355°, Tilt: 0°–75°, Rotate: 0°–355°
Lens
Lens Type Fixed focal lens, 2.8 mm & 4 mm optional
Focal Length & FOV 2.8 mm → H:103°, V:56°, D:121° 4 mm → H:83°, V:44°, D:99°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
2.8 mm D: 45 m, O: 18 m, R: 9 m, I: 4 m
4 mm D: 56 m, O: 22 m, R: 11 m, I: 5 m
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (1920×1080, 1280×720) 60 Hz: 30 fps (1920×1080, 1280×720)
Sub Stream 50 Hz: 25 fps (640×480, 640×360) 60 Hz: 30 fps (640×480, 640×360)
Video Compression Main: H.265+/H.265/H.264+/H.264 Sub: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps – 8 Mbps
H.264 Type Baseline / Main / High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Type Mono sound
Noise Filtering Yes
Sampling Rate 8 kHz / 16 kHz
Compression G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Audio Bit Rate G.711ulaw: 64 Kbps G.711alaw: 64 Kbps G.722.1: 16 Kbps G.726: 16 Kbps MP2L2: 32–160 Kbps AAC-LC: 16–64 Kbps
Network
Security Password protection, strong password, watermark, HTTP digest authentication, WSSE authentication, ONVIF authentication, security audit log, MAC host authentication
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, T, G*), ISAPI, SDK (*Profile G only supported by -F model)
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
Users Up to 32 (Administrator, Operator, User)
Client iVMS-4200, Hik-Connect
Web Browser IE 10/11 (plugin) Chrome 57+, Firefox 52+
Wide Dynamic Range Digital WDR
SNR ≥ 52 dB
Day/Night Switch Auto, Day, Night, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance (via client or browser)
Privacy Mask Up to 4 programmable polygon masks
Interface
Ethernet 1 RJ45 10/100M self-adaptive
On-Board Storage -F model: microSD/SDHC/SDXC, up to 512 GB
Built-in Microphone Yes
Reset Key -F model: Yes
Event
Basic Event Motion detection (human & vehicle filter), Video tampering, Exception
Linkage FTP upload (-F), SD recording (-F), Email, Notify center, Trigger capture
General
Power 12 VDC ±25%, 0.5 A, max. 6 W PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material Metal & Plastic
Dimensions Ø121.4 × 97.7 mm (Ø4.8" × 3.8")
Package Dimensions 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Weight 550 g (net), 800 g (with package)
Storage/Operating Conditions -30 °C to 60 °C, Humidity ≤95% (non-condensing)
Language English, Ukrainian
General Functions Heartbeat, Anti-banding, Mirror, Password protection, Password reset via email
Approvals
EMC FCC Part 15B, CE-EMC EN 55032, EN 61000-3-2/3-3, EN 50130-4 RCM: AS/NZS CISPR 32:2015 IC: ICES-003: Issue 7
Safety UL 62368-1, CB IEC 62368-1, CE-LVD EN 62368-1, BIS IS 13252/IEC 60950-1
Environment CE-RoHS, WEEE, REACH
Protection IP67 (IEC 60529-2013), IK08 (IEC 62262:2002)
