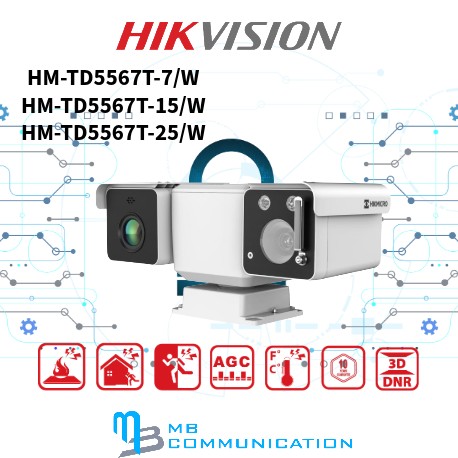

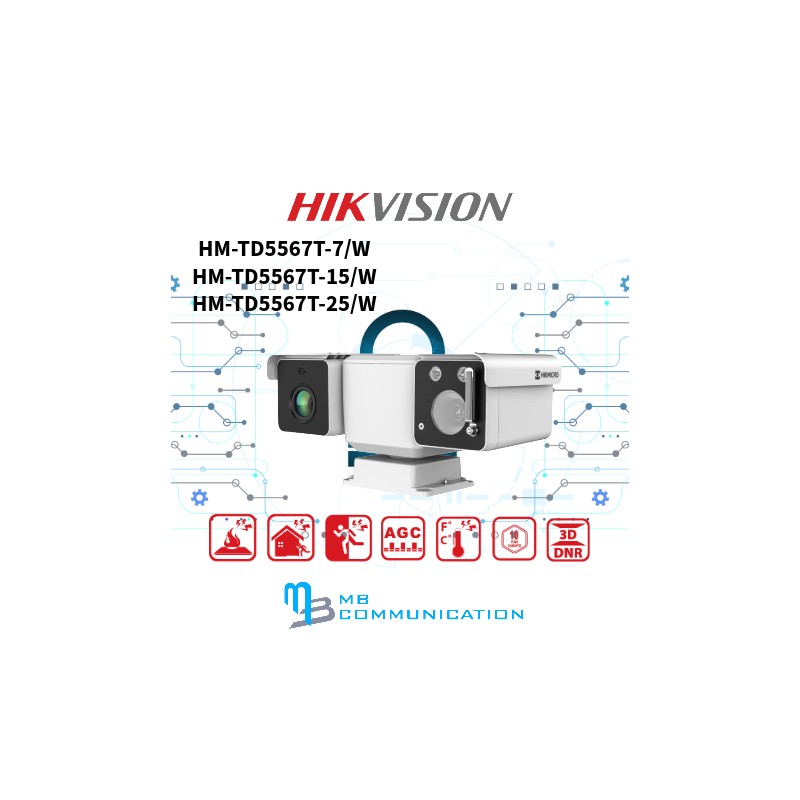

HM-TD5567T-7/W View larger

HM-TD5567T-7/W

HM-TD5567T-7/W

New product

HM-TD5567T-7/W
Thermographic Thermal & Optical Bi-spectrum Network MINI Positioning System
HIKMICRO HM-TD5567T-7/W Thermographic Thermal & Optical Bi-spectrum Network MINI Positioning System equipped
with built-in GPU which supports intelligent behavior analysis algorithm, can realize high-precision VCA detection and real-
time alarm.

More details

In Stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

HM-TD5567T-7/W Features and Benefits

Features:

HM-TD5567T-7/W Description

Specification
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 640 × 512
Pixel Pitch 17 μm
Spectral Range 8 μm to 14 μm
NETD ≤ 35 mK (25°C, F# = 1.0)
Focal Length 6.3 mm
IFOV 2.7 mrad
Aperture F1.0
Field of View 88.5° × 73.2° (H × V)
Min. Focusing Distance 0.6 m
Digital Zoom × 2, × 4, × 8
Optical Module
Image Sensor 1/2.8" Progressive Scan CMOS
Resolution 2688 × 1520, 4 MP
Min. Illumination Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON)
Field of View 58.4° × 33.8° (H × V) to 2.14° × 1.2° (H × V)
Focal Length 4.8 mm to 153 mm, 32 ×
Aperture (Range) F1.2 to F4.4
Focus Mode Semi-auto, manual
Digital Zoom × 2, × 4, × 8, × 16
Shutter Speed 1 s to 1/100,000 s
WDR 120 dB
Optical Defog Yes
Image Effect
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Target Coloration Yes. Supported in white hot and black hot mode.
PTZ
Movement Range Pan: 360° Continuous Rotate; Tilt: From -90° to +90° (auto flip)
Pan Speed Configurable, From 0.5°/s to 90°/s
Tilt Speed Configurable, From 0.5°/s to 40°/s
Proportional Zoom Yes
Presets 300
Patrol Scan 8 patrols; Up to 32 presets per patrol
Power Off Memory Yes
Park Preset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT Status Turn On/Turn Off
Scheduled Task Preset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan/Dome Reboot/Dome Adjust/Aux Output
Illuminator
IR Distance Up to 30 m
IR Intensity and Angle Automatically adjusted
