DS-2TD6267T-50H4L/W View larger

DS-2TD6267T-50H4L/W

DS-2TD6267T-50H4L/W

New product

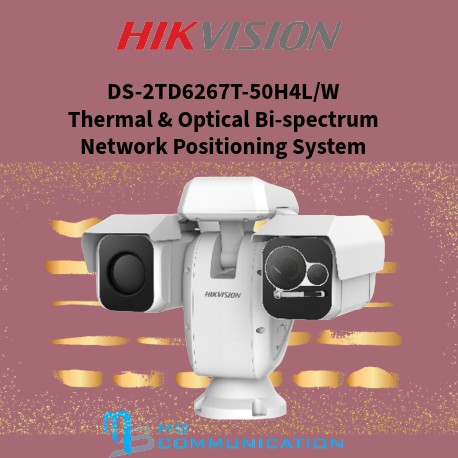

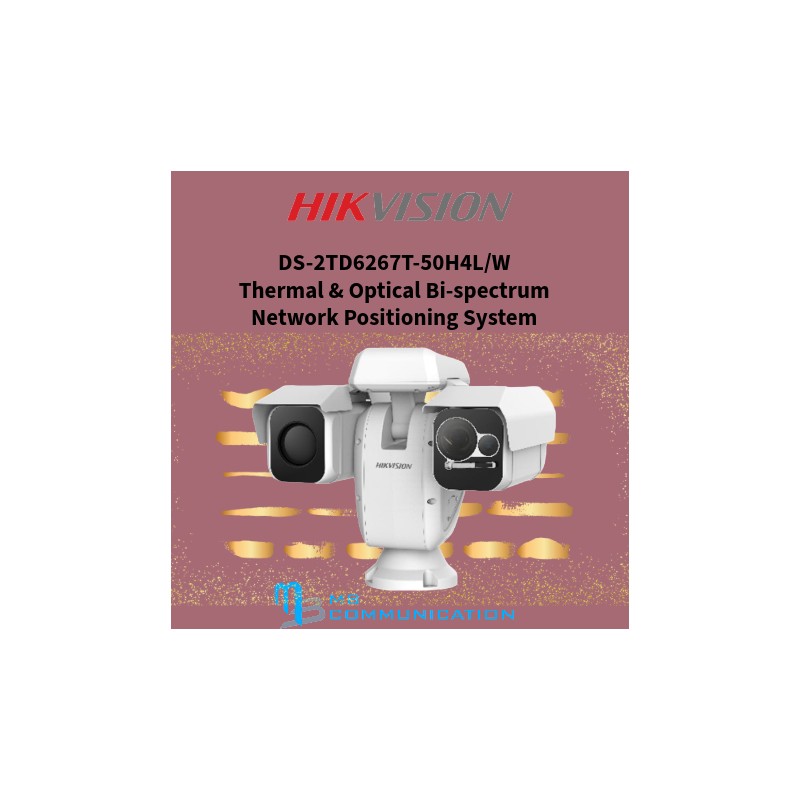

Hikvision Thermal & Optical Bi-spectrum Network Positioning System, 50mm Thermal Lens, 6mm – 240mm Optical Lens, 120dB WDR, 200m IR, 256GB Micro SD/ SDHC / SDXC card, RJ45, 10/100m Self-adaptive Ethernet, IP66

More details

In Stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

DS-2TD6267T-50H4L/W Features and Benefits

Features:

DS-2TD6267T-50H4L/W Description

  • Powerful perimeter protection functions, based on intelligent algorithm: Line crossing, intrusion, region entrance & exit
  • Temperature exception alarm for fire prevention
  • Fire detection and smoke detection algorithm
  • 640 × 512 resolution 17 μm, VOx UFPA, NETD ≤ 35 mK (25°C, F# = 1.0)
  • Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
  • Thermal channel supports EIS, conflicted with intelligent function



SpecificationDetails
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 640 × 512
Pixel Interval 17 μm
Response Waveband 8 μm to 14 μm
NETD ≤ 35 mK (@ 25°C, F# = 1.0)
Focal Length 50 mm
Focus Mode Semi-auto & Manual
IFOV 0.34 mrad
Aperture F1.0
Field of View 12.42° × 9.95° (H × V)
Min. Focusing Distance 7.5 m
Digital Zoom ×1, ×2, ×4, ×8
Optical Module
Image Sensor 1/1.8″ Progressive Scan CMOS
Resolution 2688 × 1520, 4 MP
Min. Illumination Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
Field of View Wide: 1.86° × 1.05°; Tele: 66.02° × 40.34°
Focal Length 6 to 240 mm, 40x
Aperture (Range) F1.3 to F4.0
Focus Mode Semi-auto/Manual
Shutter Speed 1.1 s to 1/30,000 s
WDR 120 dB
Optical Defog Yes
Image Effect
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Target Coloration Yes. Supported in white hot and black hot mode.
PTZ
Movement Range Pan: 360° Continuous Rotate; Tilt: From -90° to +40° (auto flip)
Pan Speed Configurable, From 0.01°/s to 110°/s
Tilt Speed Configurable, From 0.01°/s to 50°/s
Proportional Zoom Yes
Presets 300 in total
Patrol Scan 8; Up to 32 Presets Per Patrol
Pattern Scan 4; More Than 10 Minutes Per Pattern
Power Off Memory Yes
PT Status Turn On/Turn Off
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
Illuminator
IR Distance Up to 200 m
IR Intensity and Angle Automatically adjusted
Smart Function
VCA Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
Temperature Measurement Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Temperature Range -20°C to 550 °C (-4°F to 1022°F)
Temperature Accuracy Max. (± 2°C, ± 2%)
Fire Detection Dynamic fire detection, up to 10 fire points detectable
Video and Audio
Main Stream
Optical channel 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720)
Thermal channel 50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 512, 384 × 288)
Sub-stream
Optical channel 50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 576, 352 × 288)
Thermal channel 50 fps (704 × 576, 640 × 512, 384 × 288)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream H.265/H.264/MJPEG
Audio Compression G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
Network
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network Storage MicroSD/SDHC/SDXC card (up to 256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
API ISAPI, HIKVISION SDK, third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T)
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Security User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Client iVMS-4200, Hik-Connect
Web Browser Live view (plug-in allowed): Internet Explorer 11
Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 +
Local service: Chrome 57.0 +, Firefox 52.0 +
Interface
Alarm Input 7-ch inputs (0 to 5 VDC)
Alarm Output 2-ch relay outputs, alarm response actions configurable
Alarm Action Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Audio Input 1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear Level; Impedance: 600 Ω
Communication Interface 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface
Analog Video Output 1.0 V [p-p]/75 Ω, BNC for thermal channel
