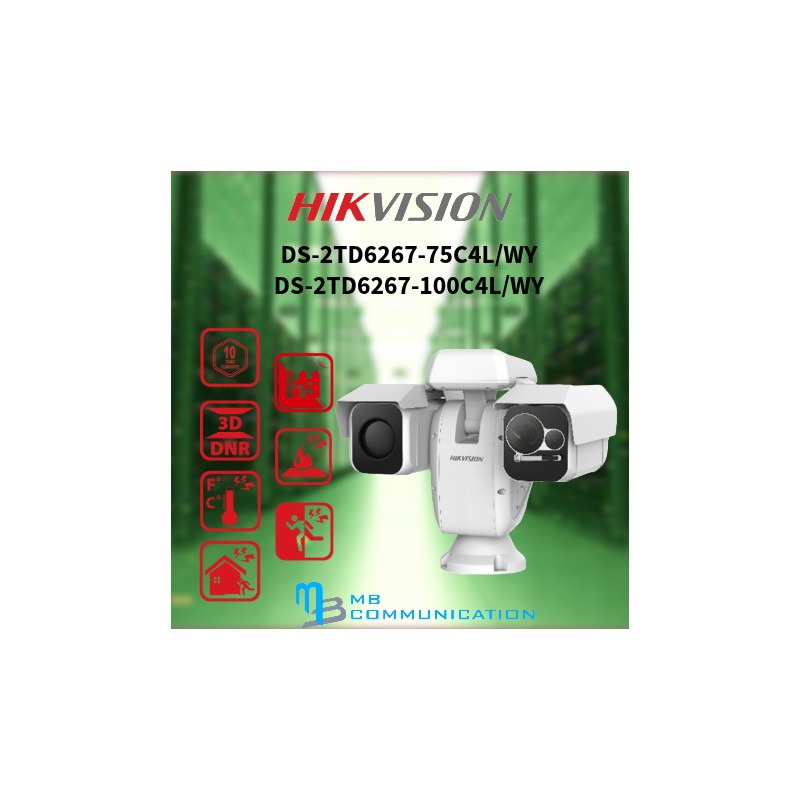

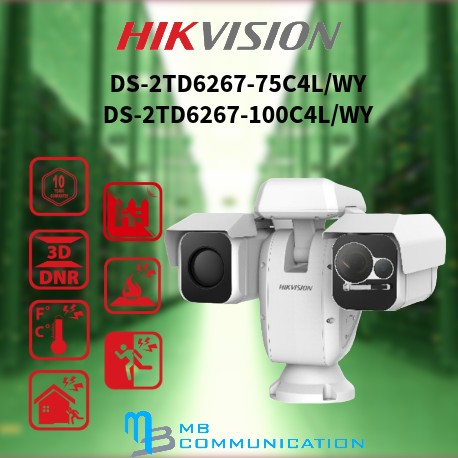

DS-2TD6267-75C4L/WY View larger

DS-2TD6267-75C4L/WY

DS-2TD6267-75C4L/WY

New product

Anti-corrosion Thermal & Optical Bi-spectrum Network Positioning System

  • Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance & exit
  • Temperature exception alarm for fire prevention

More details

In Stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

DS-2TD6267-75C4L/WY Features and Benefits

Features:

DS-2TD6267-75C4L/WY Description

Product Data

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution384 x 288
  • Pixel Pitch17 μm
  • Spectral Range8 μm to 14 μm
  • NETD ≤ 35 mK (@25° C,F# = 1.0)
  • Focal Length25 mm
  • Focus ModeSemi-auto & Manual
  • IFOV0.68 mrad
  • ApertureF1.0
  • Field of View14.9° × 11.2° (H × V)
  • Min. Focusing Distance1.5 m
  • Digital Zoom×2, ×4, ×8
  • Optical Module
  • Image Sensor1/1.8'' Progressive Scan CMOS
  • Resolution2688 × 1520, 4MP
  • Min. IlluminationColor: 0.005 Lux @ (F1.3, AGC ON), B/W: 0.001 Lux @ (F1.3, AGC ON)
  • Field of View56.6° × 33.7° (H × V) to 1.8° × 1.0° (H × V)
  • Focal Length6~240mm,40x
  • Aperture (Range)F1.3-F4.6
  • Focus ModeSemi-auto, manual
  • Digital Zoom×2, ×4, ×8, ×16
  • Shutter Speed1 s to 1/100,000 s
  • Day & Night ModeIR Cut Filter
  • WDR120 dB
  • Optical DefogYes
  • Image Effect
  • Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
  • Target ColorationYes. Supported in white hot and black hot mode.
  • PTZ
  • Movement RangePan: 360° Continuous Rotate; Tilt: From -90° to + 90° (auto flip)
  • Pan SpeedConfigurable, From 0.01°/s to 40°/s
  • Tilt SpeedConfigurable, From 0.01°/s to 40°/s
  • Proportional ZoomYes
  • Presets300
  • Patrol Scan8; Up to 32 presets per patrol
  • Pattern Scan4; More Than 10 Minutes Per Pattern
  • Power Off MemoryYes
  • ParkPreset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PT StatusTurn On/Turn Off
  • Scheduled TaskPreset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
  • Illuminator
  • IR DistanceUp to 200m
  • IR Intensity and AngleAutomatically adjusted
  • Smart Function
  • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), 10 scenes and 8 VCA rules for each scene.
  • Temperature Measurement3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
  • Temperature Range-20 °C to 550 °C (-4 °F to 1022 °F)
  • Temperature AccuracyMax (±2°C, ±2%)
  • Fire DetectionDynamic fire and smoke detection, up to 10 fire points and 10 smoke points detectable.
  • Video and Audio
  • Main Stream

    Optical channel

    50 Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)

    60 Hz: 30 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)

    Thermal channel

    50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288)

  • Sub-stream

    Optical channel

    50 Hz: 25fps (704 × 576, 352 × 288)

    60 Hz: 30 fps (704 × 576, 352 × 288)

    Thermal channel

    50 fps (704 × 576, 640 × 512, 384 × 288)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/ H.264

    Sub-stream: H.265/H.264/MJPEG

  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SSH
  • Network StorageMicroSD/SDHC/SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • APIISAPI, HIKVISION SDK, third-party management platform, Open Network Video Interface (Profile S, Profile G)
  • Simultaneous Live ViewUp to 20 channels
  • User/Host levelUp to 32 users. 3 levels: administrator, operator, user
  • SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Live view (plug-in allowed) : Internet Explorer 11

    Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

    Local service : Chrome 57.0 +, Firefox 52.0 +

  • Interface
  • Alarm Input7-ch inputs (0 to 5 VDC)
  • Alarm Output2-ch relay outputs, alarm response actions configurable
  • Alarm ActionPreset/patrol scan/SD card record/relay output/smart capture/FTP upload/email linkage
  • Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
  • Audio OutputLinear Level; Impedance: 600Ω
  • Communication Interface

    1, RJ45 10M/100M self-adaptive Ethernet interface.

    1, RS-485 interface

  • Analog Output1.0 V [p-p]/75 Ω, BNC
  • General
  • Menu Language

    32 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

  • Power SupplyAC 100-240V
  • Power ConsumptionAC 100-240V: max. 0.6A, 75 W
  • Working Temperature/HumidityFrom -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
  • WiperYes
  • Protection Level

    IP68 Standard ,IK10-Rated Housing

    TVS 6000V lightning protection, surge protection, voltage transient protection

  • Dimensions541.3 mm × 441 mm × 330 mm (21.31" × 17.36" × 12.99")
  • WeightApprox. 40 kg (88.18 lb)
  • Certificate
  • EMC

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014;

    RCM: AS/NZS CISPR 32: 2015;

    IC: ICES-003: Issue 7;

    KC: KN32: 2015, KN35: 2015

  • Safety

    CB: IEC 62368-1: 2014+A11;

    CE-LVD: EN 62368-1: 2014/A11: 2017;

  • Approval
  • Explosion-Proof Protection

    ATEX: II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68

    IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68
