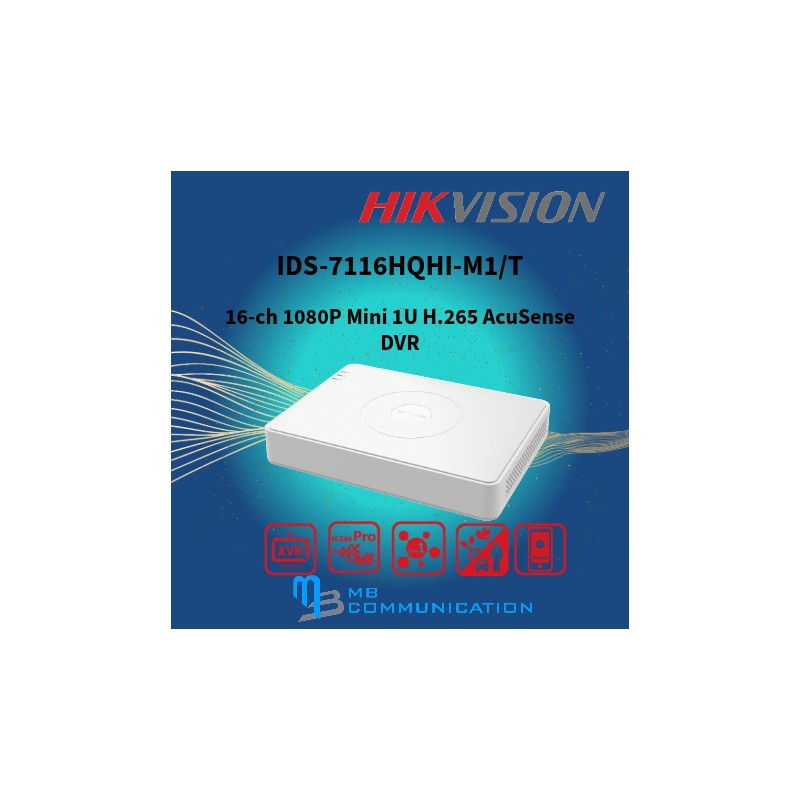

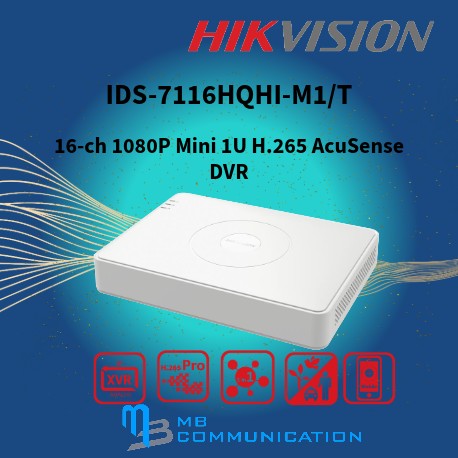

DS-7116HQHI-M1/S 16-ch 1080p Mini 1U H.265 AcuSense DVR

Why choose DS-7116HQHI-M1/S?

• Advanced Detection Technology : Deep learning-based human and vehicle target classification with Motion Detection 2.0.
• Smart Perimeter Protection : Line Crossing Detection and Intrusion Detection features.
• Advanced Video Compression : H.265 Pro+/H.265 Pro/H.265 for optimized storage and streaming.
• Multi-Video Inputs : Supports HDTVI/AHD/CVI/CVBS/IP video inputs.
• Audio via Coaxial Cable : Audio support through analog inputs.
• Up to 24 IP Camera Inputs : Supports cameras up to 6 MP resolution.
• Encoding resolution up to 3K/5M Lite at 12 fps.

Detailed Specifications

• Motion Detection 2.0:
  • Human/Vehicle Analysis : Deep learning-based motion detection is enabled by default for all analog channels, classifying humans and vehicles, reducing false alarms caused by objects like leaves or lights.
  • Quick Search : Allows fast search by object or event type.
• Perimeter Protection :
  • Line Crossing Detection/Intrusion Detection : Supports up to 4 channels for perimeter protection.
  • Facial Detection : Face detection and capture, with face picture search functionality.
• Video and Audio :
  • IP Video Input:
    • 2 channels (up to 18 channels with Enhanced IP mode).
    • Supports up to 6 MP resolution.
  • Analog Video Input :
    • 16 channels via BNC interface, supporting Coaxitron connection.
  • Audio Input : 1 channel, RCA (2.0 Vp-p, 1 KΩ).
  • Audio Output : 1 channel, RCA (Linear, 1 KΩ).
  • Two-Way Audio : 1 channel, RCA.
• Encoding and Recording :
  • Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264.
  • Encoding Resolution :
    • 3K Lite/5 MP Lite/4 MP Lite/1080p/720p/VGA.
    • 3K Lite/5 MP Lite/4 MP Lite/1080p Lite when 1080p Lite mode is enabled.
  • Frame Rate :
    • Main stream : up to 12 fps for 3K Lite, 15 fps for 4 MP Lite, and 25 fps for 1080p Lite.
    • Sub-stream : WD1/4CIF at 12 fps, CIF at 25 fps.
• Network :
  • Remote Connection : Supports up to 128 connections.
  • Network Protocols : TCP/IP, PPPoE, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF.
  • Network Interface : 1 x RJ45 10M/100M/1000M self-adaptive Ethernet interface.
• General Specifications :
  • Power Supply : 12V DC, 2A.
  • Power Consumption : ≤ 24W.
  • Operating Temperature : -10°C to +55°C.
  • Operating Humidity : 10% to 90%.
  • Dimensions : 285 x 210 x 48 mm.
  • Weight : ≤ 1 kg.
