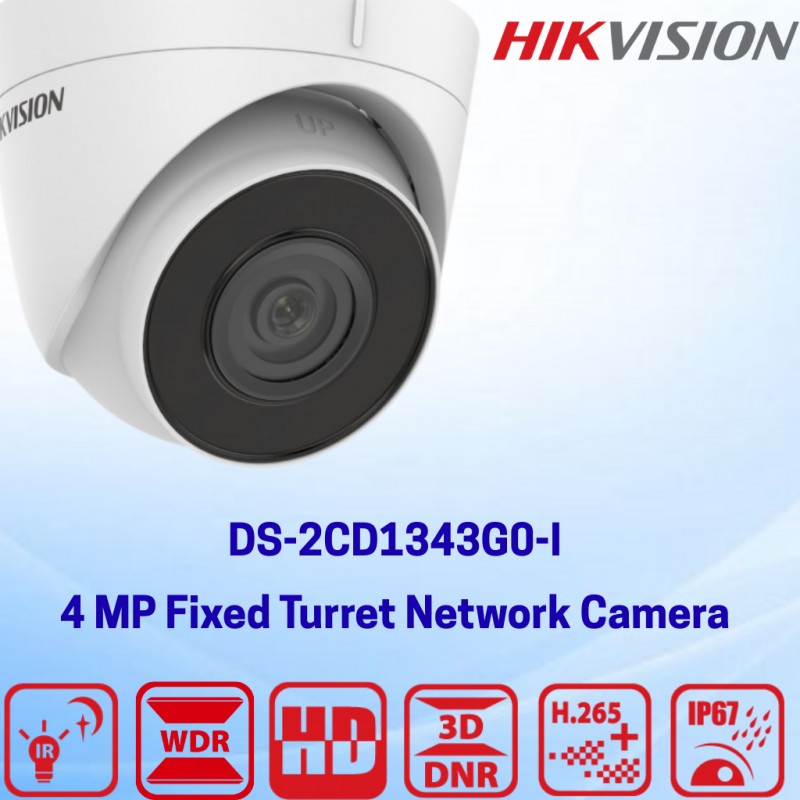

4 MP Fixed Turret Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Water and dust resistant (IP67)
• EXIR 2.0: advanced infrared technology with long IR range
• -UF: Built-in microphone for real-time audio security
• -UF: Support up to 256 GB SD card storage

Specification

• Camera
• Image Sensor: 1/3" progressive scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

• Lens
• Lens Type: Fixed focal length, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°

  4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°

• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F2.0

• Illuminator
• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

• Video
• Main Stream

  50 Hz: 20 fps (2560 × 1440)

  25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (2560 × 1440)

  30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Region Of Interest (ROI): 1 fixed region for main stream

• Audio
• Audio Compression: -UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate: -UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate: -UF: 8 kHz/16 kHz
• Environment Noise Filtering: -UF: Yes

• Network
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI
• User/Host: Up to 32 users. 3 levels: administrator, operator and user
• Client: iVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, Schedule, Day, Night
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC, 3D DNR

• Interface
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: -UF: Built-in memory card slot, support microSD card, up to 256 GB
• Built-In Microphone: -UF: Yes
• Reset Key: -UF: Yes

• Event
• Basic Event: Motion detection, video tampering, exception
• Linkage

  Upload to FTP, notify surveillance center, send email

  -UF also supports: upload to memory card, trigger recording, trigger capture

• General
• Power

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• Dimension: Ø110 mm × 85.3 mm (Ø 4.3" × 3.4")
• Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Approx. 320 g (0.7 lb.)
• With Package Weight: Approx. 556 g (1.2 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

• Approval
• EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013)
