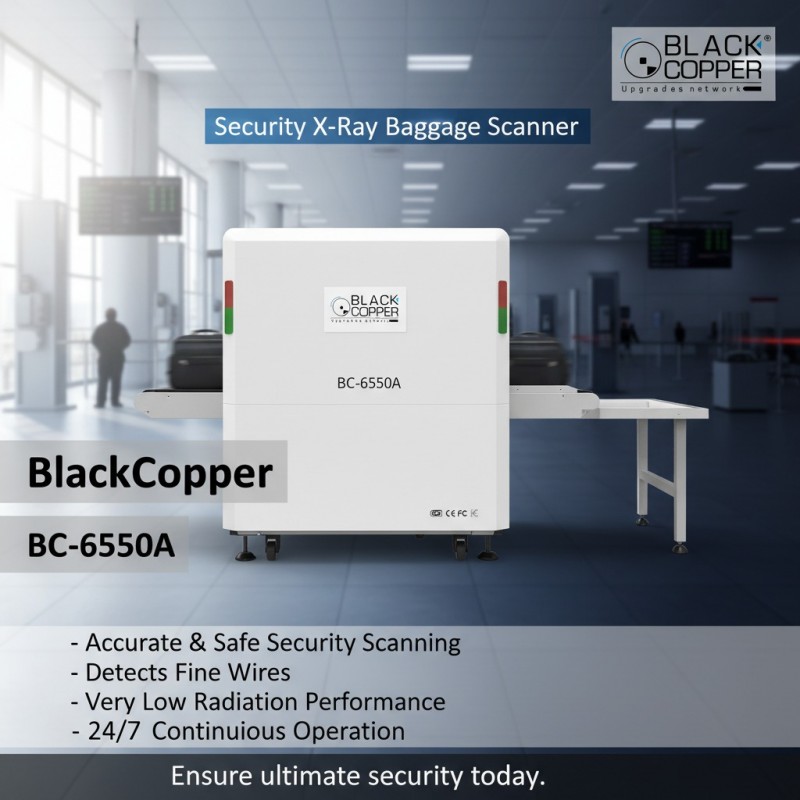

BlackCopper BC-6550A
BC-6550A Security X-Ray Baggage Scanner – 656 × 501 mm Tunnel
- Tunnel 656 × 501 mm, 0.20 m/s belt
- Max. load 100 kg
- 8 mm steel penetration, 38 AWG wire
- 19" LED monitor, 64× zoom
- High-density alarm, explosive / drug detection
- TIP operator training
Rating:
Be the first to write a review!
- 100% genuine, brand-new stock
- Delivered across Pakistan
- Showroom: TechnoCity, Karachi
- Bulk & corporate pricing on request
More info
BlackCopper BC-6550A overview
BlackCopper BC-6550A is an X-ray baggage scanner with a 656 × 501 mm tunnel and 0.20 m/s belt carrying up to 100 kg. It penetrates 8 mm steel, resolves 38 AWG wire, shows images on a 19" LED monitor with 64× zoom, and offers high-density alarm, explosive / drug detection and TIP training, with very low radiation and film-safe operation.
Key Features
- Tunnel 656 × 501 mm, 0.20 m/s belt
- Max. load 100 kg
- 8 mm steel penetration, 38 AWG wire
- 19" LED monitor, 64× zoom
- High-density alarm, explosive / drug detection
- TIP operator training
- Dose < 1.0 µGy, film safe ISO1600
Specifications
| General | |
|---|---|
| Brand | BlackCopper |
| Model | BC-6550A |
| Type | Security X-ray baggage scanner |
| Machine Size | 1875 × 934 × 1300 mm |
| Package Weight | 220 kg |
| Conveyor | |
| Tunnel | W656 × H501 mm |
| Belt Speed | 0.20 m/s |
| Belt Height | 664 mm |
| Max Load | < 100 kg |
| Imaging | |
| Wire Resolution | 38 AWG |
| Spatial | 1.0 mm H / V |
| Penetration | 8 mm steel (34 AWG definition) |
| Monitor | 19" LED |
| Functions | High-density alarm, explosive / drug detection, TIP, luggage counter, 64× zoom |
| Safety | |
| X-Ray Tube | 80 kV, oil cooled |
| Dose | < 1.0 µGy per inspection |
| Leakage | < 0.1 µGy/h at 5 cm |
| Film Safety | ASA / ISO1600 |
| Power | |
| Consumption | 1 kVA |
| Noise | 53.8 dB(A) |
Ideal For
- Hotels, malls and offices
- Courts, banks and government buildings
- Events and transport hubs
BlackCopper BC-6550A price in Pakistan
Rs 1,653,600 Same price in every city · updated 28 October 2026
- Delivery2–5 working days after your order is confirmed, depending on your city and the courier you choose.
- CitiesDelivered all over Pakistan: Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad, Multan, Peshawar, Quetta, Hyderabad, Sialkot, Gujranwala and every other city.
- PaymentCash on delivery or bank transfer. Invoices on request.
- WarrantyGenuine BlackCopper product with brand warranty.
