Shinho X-700
X700
New product

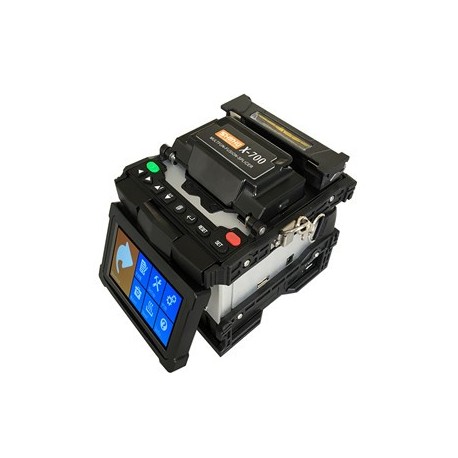

Handheld Fiber Fusion Splicer X-700
This product is no longer in stock
WhatsApp
More info
Product Information:
Shinho X-700 Features and Benefits
Features:
Shinho X-700 Description
Features
6s typically for splicing and 26s for heating
Fiber core max. magnifications up to 250X
Electrodes discharging more than 4000 times
Integrated heater, easy and convenient to operate.
USB port for software updating and data records exporting
PAS image digital processing system, core to core alignment.
ARC calibrated by temperature and air pressure automatically
360° rubber armor protects machine from shock, water and dust.

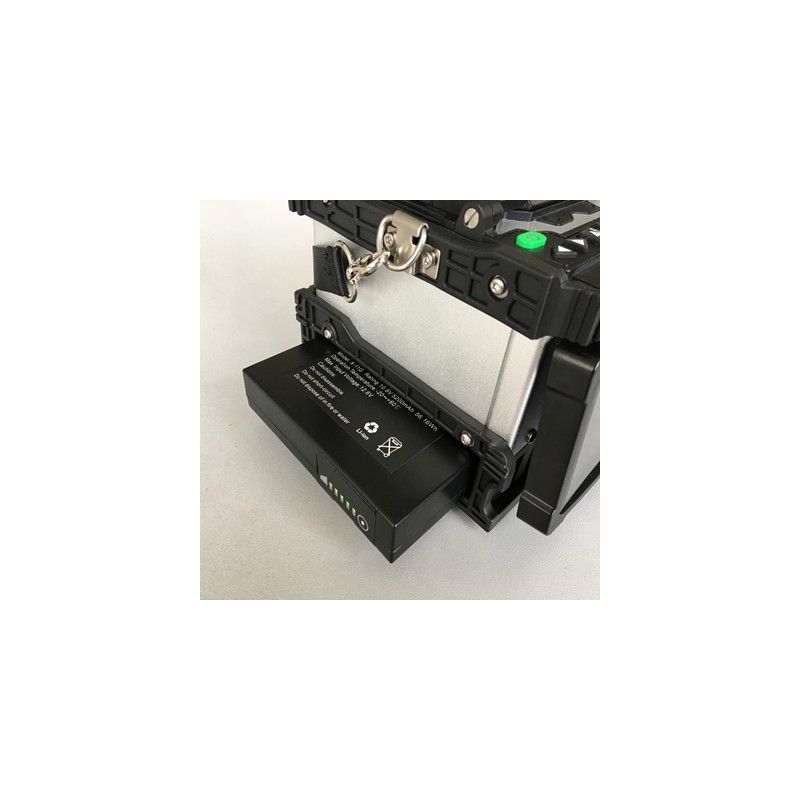

5800mAh and pluggable Li-battery, typical 200 cycles splicing and heating.
Multi-function holder clamps, suitable for bare fibers, skin line cables, jumper cables etc.
Specification
| Applicable fiber | SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657) |
| Fiber count | Single |
| Applicable fiber dimensions | Cladding diameter: 80 -150μm, Coating diameter: 160 – 900μm |
| Typical splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
| Return loss | >60db |
| Fiber cleaved length | 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm ) |
| Splicing program | 40 groups |
| Operate mode | Manual, Automatic |
| Auto-heating | Available |
| Typical splicing time | 6 seconds |
| Tube heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber view magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing method and display | 2 CMOS cameras, 4.3 inch color LCD monitor |
| Storage of splice result | 4000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easier operation |
| Battery capacity | 5800mAh, typical 200 cycles(splice and tube heat), pluggable inner Li-battery |
| Power supply | Adaptor, input: AC100-240V(50/60HZ) |
| Electrode life | More than 4000 ARC discharges, can be replaced conveniently |
| Terminals | USB 2.0 port, for uploading splice results and upgrading software |
| Operating condition | Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃～+50℃;Wind speed: max 15m/s |
| Dimension | 149mm(L)x120mm(W)x127mm(H) |
| Weight | 1.9kg including battery |
Buy Shinho X-700 Networking Products, – MB Communication is a Networking Products Shinho X-700 reseller in Pakistan offers products Networking Products.
Networking Products Shinho X-700 Price in Pakistan
As on Tuesday, April 30, 2024 09:17:29
| Price in Pakistan | Price in Karachi | Price in Lahore | |
|---|---|---|---|
| Shinho X-700 Networking Products Price | Rs 201,800 | Rs 200796 | Rs 205918 |
| Contact Number | 03000778713 | 03000778713 | 03000778713 |
| Price in Islamabad | Price in Rawalpindi | Price in Multan | |
|---|---|---|---|
| Networking Products Shinho X-700 Price | Rs 203838 | Rs 204873 | Rs 202814 |
| Contact Number | 03000778713 | 03000778713 | 03000778713 |
| Price in Faisalabad | Price in Kundian | Price in Bhakkar | |
|---|---|---|---|
| Price X700 Networking Products | Rs 206129 | Rs 206339 | Rs 206762 |
| Contact Number | 03000778713 | 03000778713 | 03000778713 |
