View larger

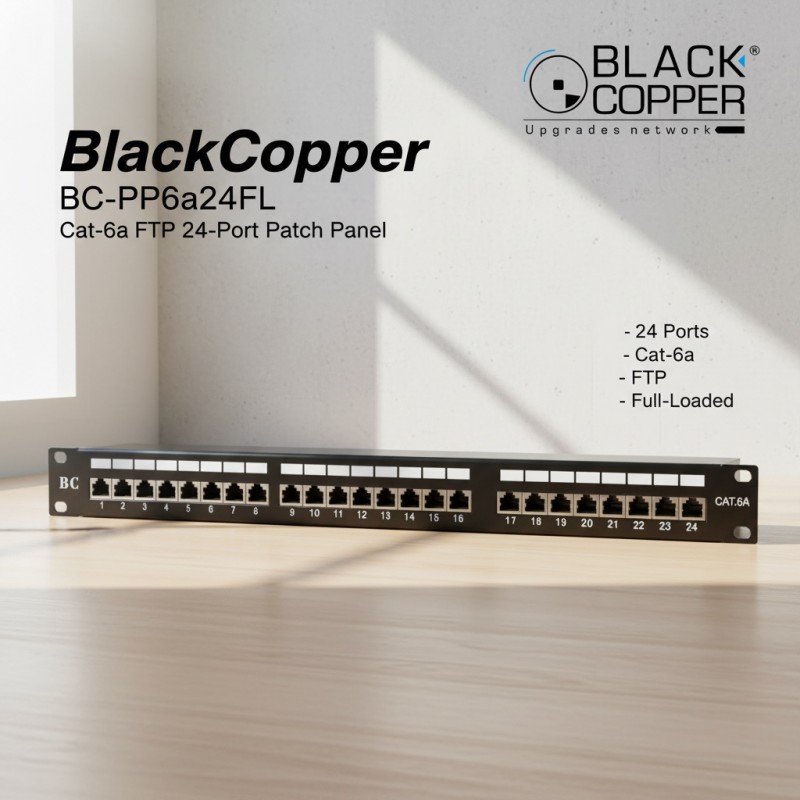

BlackCopper BC-PP6a24FL
Cat 6A FTP 24-Port Loaded Patch Panel – Shielded
- 24 shielded Cat 6A FTP ports
- Conforms to EIA/TIA 568-C.2 Cat 6A
- Earthing kit for shielded keystones
- Port numbers and pre-printed labelling area
- Pre-assembled, detachable cable manager
- For standard and pre-terminated installs
Rating:
Be the first to write a review!
- 100% genuine, brand-new stock
- Delivered across Pakistan
- Showroom: TechnoCity, Karachi
- Bulk & corporate pricing on request
More info
BlackCopper BC-PP6a24FL overview
BlackCopper BC-PP6a24FL is a shielded Cat 6A FTP patch panel loaded with 24 keystones, with an earthing kit for grounding, pre-printed port labels and a pre-assembled detachable cable manager. Built for standard and pre-terminated installations.
Key Features
- 24 shielded Cat 6A FTP ports
- Conforms to EIA/TIA 568-C.2 Cat 6A
- Earthing kit for shielded keystones
- Port numbers and pre-printed labelling area
- Pre-assembled, detachable cable manager
- For standard and pre-terminated installs
Specifications
| General | |
|---|---|
| Brand | BlackCopper |
| Model | BC-PP6a24FL |
| Type | Cat 6A FTP loaded patch panel, 24 port |
| Frame | Carbon steel SPCC 1.5 mm, black powder coat |
| Electrical | |
| Voltage Rating | 125 VAC RMS |
| Current Rating | 1.5 A |
| Contact Resistance | 100 mΩ max. |
| Insulation Resistance | 1000 MΩ min. @ 500 V DC |
| Dielectric Strength | 750 V AC RMS, 60 Hz |
| Materials | |
| Housing | PBT |
| Shield | Stainless steel, 0.2 mm |
| PCB | FR-4, 1.6 mm |
| IDC | PC; phosphor bronze contact, nickel plated |
| Life | |
| RJ45 Jack Life | 750 times min. |
| IDC Life | 200 times min. |
| Wire | AWG 22–26 |
| Environment | |
| Storage | -40 to +85 °C |
| Operation | 0 to +70 °C |
Ideal For
- Server rooms and network racks
- Office structured cabling
- Data centres and IT closets
BlackCopper BC-PP6a24FL price in Pakistan
Rs 20,800 Same price in every city · updated 28 October 2026
- Delivery2–5 working days after your order is confirmed, depending on your city and the courier you choose.
- CitiesDelivered all over Pakistan: Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad, Multan, Peshawar, Quetta, Hyderabad, Sialkot, Gujranwala and every other city.
- PaymentCash on delivery or bank transfer. Invoices on request.
- WarrantyGenuine BlackCopper product with brand warranty.
