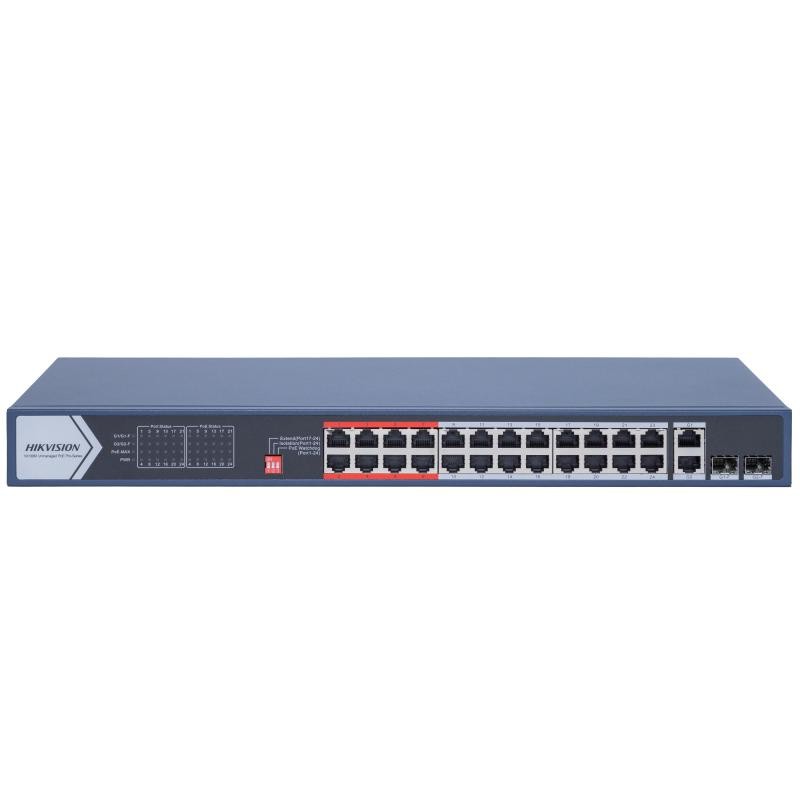

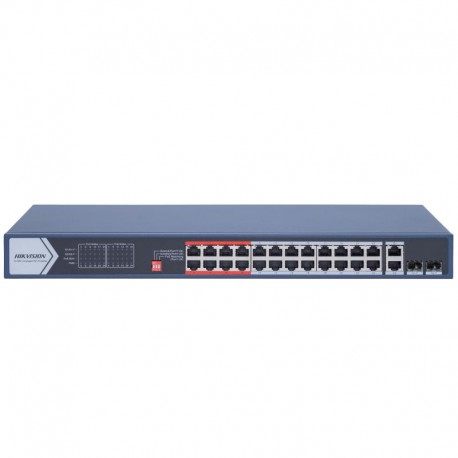

Hikvision DS-3E0326P-E

Specification
Shell Metal material
Net Weight 2.77 kg (6.11 lb)
Gross Weight 3.39 kg (7.47 lb)
Dimensions (W × H × D) 440.0 mm × 44.0 mm × 220.8 mm (17.32'' × 1.73'' × 8.69'')
Operating Temperature 0 °C to 45 °C (32 °F to 113 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 100-240 VAC, 50/60 Hz, Max. 6.3 A
Max. Power Consumption 400 W
Power Consumption in Idle 30 W
Surge Protection 6 KV
Installation Mode Rack (equipped with mounting ears)
Ports 24 × 10/100 Mbps PoE port,2 × Gigabit combo
MAC Address Table 8 K
Switching Capacity 8.8 Gbps
Packet Forwarding Rate 6.55 Mpps
Internal Cache 4 Mbits
Long Range Ports 17 to 24: up to 300 m. Long range performance may vary depend on camera model or cable condition.
Port Isolation Ports 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog Ports 1 to 24: auto detect and restart the cameras that do not respond.
PoE Standard IEEE 802.3af,IEEE 802.3at
PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port PoE: Ports 1 to 24
Max. Port Power 30 W
PoE Power Budget 370 W
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)
