  4. Hikvision DS-7108HGHI-M1/T
Hikvision 7108HGHI-M1/T View larger

Hikvision DS-7108HGHI-M1/T

DS-7108HGHI-M1/T

New product

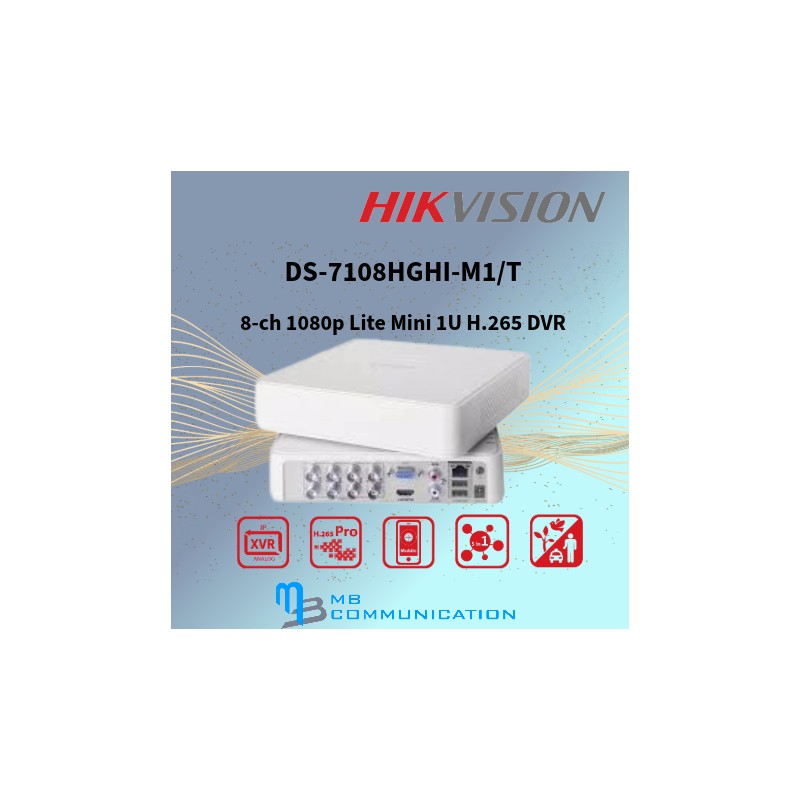

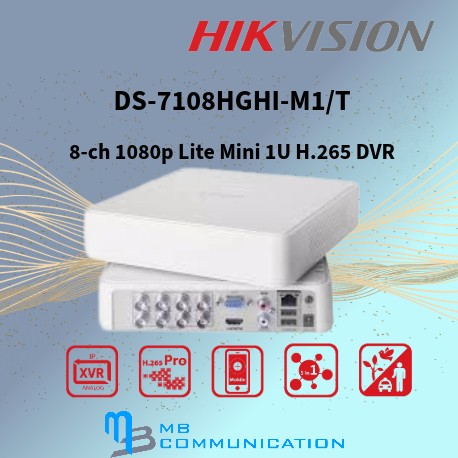

Hikvision 7108HGHI-M1/T Hybrid Digital Video Recorder 8CH

  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/CVI/AHD/IP/CVBS video inputs
  • Audio over coaxial cable
  • Support all channels HDTVI two-way audio technology
  • Up to 10-ch IP camera inputs

More details

In Stock

Whatsapp MB WhatsApp

Rs 11,640

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-7108HGHI-M1/T Features and Benefits

Features:

Hikvision DS-7108HGHI-M1/T Description

Hikvision 7108HGHI-M1

  • VALUE range
  • DVR 5n1
  • 8 HDTVI/HDCVI/AHD/CVBS video CH
  • 2 IP CH (up to 10 IP CH in total by substitution of analog channels)
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Maximum input resolution 1080p Lite
  • Available bandwidth 72 Mbps
  • Audio over coaxial
  • Motion detection 2.0 on all analog channels
  • Full HD HDMI and VGA Output
  • Audio input and output
  • Space for 1 HDD up to 4 TB
  • Compact size
  • White colour

Features

  • Hikvision DVR 5n1 VALUE
  • 8 CH HDTVI / HDCVI / AHD / CVBS
  • Up to 10 IP channels
  • Maximum input resolution 1080p Lite
  • Motion detection 2.0 on all channels
  • Supports 1 hard disk up to 4 TB | Audio

Specs

Brand HIKVISION
Range Value
Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 8 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration 2 Additional IP CH: Up to 10 IP (5 MPx channels), replacing all BNC channels
Available bandwidth 72 Mbps
Video outputs 1 HDMI Full HD and 1 VGA, simultaneous
Display resolution HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz
VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz
Audio inputs 1 Channel RCA
8 coaxial audio channels
Audio outputs 1 Channel RCA
Bidirectional audio Reusing the audio input
Audio Bit Rate 64 Kbps
Audio compression G.711u
Video compression Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
IP channels: H.265+ / H.265 / H.264+ / H.264
Recording resolution 1080p Lite/ 720p/ 720p Lite/ WD1/ 4CIF/ [%VAR%] VGA/ CIF
Input resolution HDTVI: 1080p (25~30 fps), 720p (25~30 [%VAR%] fps)
HDCVI: 1080p (25~30 fps), 720p (25~30 [%VAR%] fps)
AHD: 1080p (25~30 fps), 720p (25~30 [%VAR%] fps)
CVBS: PAL/NTSC
Main Stream coding For the 1080p stream:
1080p Lite/720p Lite/WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N))
For the 720p stream:
720p/WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N))
For SD stream:
WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N))
Extra Stream coding CIF/QVGA (25 fps (P), 30 fps (N))
Video Bit Rate 32 Kbps at 4 Mbps
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms Does not have
Motion Detection Motion detection 2.0 with human and vehicle classification applied in motion detection.
Available on all analog channels.
Recording method Manual, programmed, motion detection
Backup USB (Memory, HDD, CD-RW, DVR-RW) / Network
Internal memory 1 SATA HDD 3.5" of up to 4 TB (not included)
Communication 2 x USB 2.0 (rear side) / 1 x RJ45 (Ethernet)
Remote connections 64
Remote access Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central
Power DC 12 V, 1.5 A, ≤ 10 W (no HDD)
Operating temperature -10° ~ +55° C
Dimensions 48 (H) mm x 200 (W) mm x 200 (D) mm
Weight ≤ 1 Kg (without HDD)
Colour White
