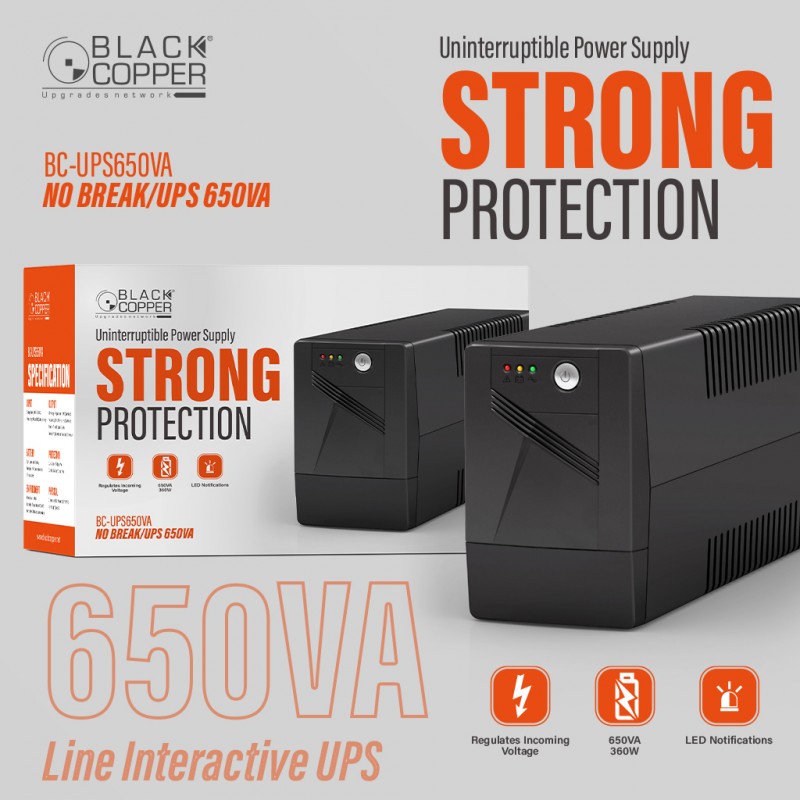

BlackCopper BC-UPS650VA View larger

BlackCopper BC-UPS650VA

BCUPS650VA

New product

650VA 360W Line Interactive UPS

More details

In Stock

Rs 11,440

More info

Product Information:

BlackCopper BC-UPS650VA Features and Benefits

Features:

BlackCopper BC-UPS650VA Description

Features

♦ Excellent microprocessor control optimizes reliability;

♦ Built super smart charger,shorten charging time;

♦ Boost and buck AVR for voltage stabilization;

♦ Simulated sine wave;

♦ Auto restart while AC is recovering;

♦ Power-on self test;

♦ Built-in self-diagnostic function;

♦ Off mode charging function;

♦ Intelligent battery management;

♦ Optional no-load shut down;

♦ Humanized alarm system;

♦ Compatible with generator set(optional);

 Optional RS232/USB communication port and RJ11/RJ45 protection.

Specifications

MODEL BC-650VA
Capacity 650VA/360W
INPUT
Voltage 110/120 VAC or 220/230/240 VAC
Voltage Range 81-145 VAC or 162-290 VAC
Frequency Range 60/50Hz (Auto sensing)
OUTPUT
Voltage 110/120 VAC or 220/230/240 VAC
AC Voltage Regulation(Bat Mode) ±10%
Frequency Range(Bat Mode) 60Hz or 50Hz ± 1Hz
Transfer Time Typical 2-6ms
Waveform(Bat Mode) Simulated sine wave
Peak Efficiency(AC Mode) >95%@ Full R load
BATTERY
Battery Type & Number 12V 7Ah*1
Floating Charging Voltage 13.7VDC
Charging Ability 4-6 hours recover to 90%capacity
PROTECTION
Full Protection Short circuit, Overload,Battery discharge and overcharge,Surge protection
INDICATIONS
Line Mode Green lighting
Battery Mode Yellow flashing
Fault Red lighting
ALARM
Battery Mode Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 seconds
Battery Replacement Alarm  Sounding every 2 seconds
Fault Continuously sounding
COMMUNICATIONS
USB/RS232/SNMP(options) Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8 Linux Unix and MAC
ENVIRONMENT
Humidity 0-90% Relative Humidity 0-40°C (Non-Condensing)
Noise Level Less than 40dB
Dimension 297*101*142mm
Net Weight 4.2KG
