View larger

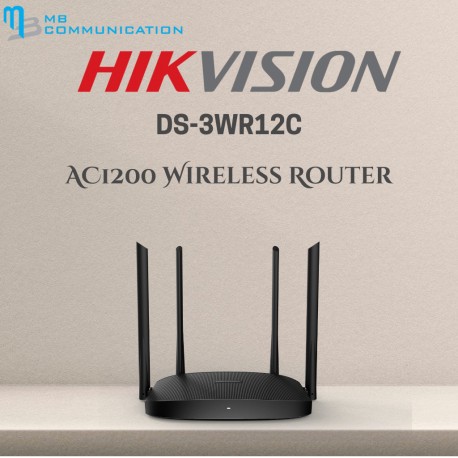

Hikvision DS-3WR12C
DS-3WR12C
New product
AC1200 Wireless Router
- Four 5-dBi amplified antennas
- Beamforming optimizes signal
- Dual band – Smart signal switching
- Broadband account synchronization
In Stock
WhatsApp
Rating:
Be the first to write a review!
More info
Product Information:
Hikvision DS-3WR12C Features and Benefits
Features:
Hikvision DS-3WR12C Description
| Category | Specification |
|---|---|
| General | |
| Product Dimension (W × H × D) | 248.40 mm × 154.80 mm × 213.34 mm (9.78" × 6.09" × 8.40") |
| Package Dimension (W × H × D) | 306 mm × 290 mm × 59 mm (12.05" × 11.42" × 2.32") |
| Net Weight | 0.222 kg (0.489 lb) |
| Gross Weight | 0.722 kg (1.592 lb) |
| Packing List | Wireless Router × 1, Ethernet Cable × 1, Quick Installation Guide × 1 |
| Packing Method | Single pack |
| Working Temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidity | 10% to 90% RH (non-condensing) |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | 5% to 90% RH (non-condensing) |
| Installation Mode | Desktop installation |
| Max. Power Consumption | ≤ 9 W |
| Wireless Parameters | |
| Data Rate | ≤ 1167 Mbps2.4 GHz: 300 Mbps5 GHz: 867 Mbps |
| Wireless Standard | IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz |
| Working Frequency Band | 2.4 GHz, 5 GHz |
| Transmitting Power | CE:<20 dBm (2.4G)<23 dBm (5G) |
| Wireless Performance | 4 × 4 MU-MIMO supported, Beamforming supported |
| Receiving Sensitivity | 58 ± 2 dB @ AC80-MCS984 ± 2 dB @ AC80-MCS0 |
| Antenna | 4 high-gain antennas |
| Operating Frequency | 2.4 GHz: US/2412-2472 MHz (CH1-CH13)5 GHz: US/5180-5240 MHz (CH36-CH48)5 GHz: US/5740-5805 MHz (CH149-CH161) |
| EIRP Power (Max.) | 2.4 GHz: 19.86 dBm5 GHz: 22.96 dBm |
| Hardware Parameters | |
| Network Interface | 1 × 10/100Mbps WAN port, 3 × 10/100Mbps LAN ports |
| LED Indicator | LED indicator |
| Reset | Reset button |
| Power Supply Method | 9 VDC, 1 A power adapter |
| Power Specifications | 9 VDC, 1 A |
| Software Functions | |
| Application Function | Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported |
| DHCP Server | Supported |
| Guest Network | Supported |
| Signal Adjustment | Supported |
| WiFi Schedule | Supported |
| Security Mode | WPA-PSK, WPA2-PSK, WPA, WPA2 |
| Security Mechanism | Hide SSID |
| Management Method | Web |
| Upgrade | Web update and upgrade |
| System Log | Supported |
| WAN Mode | DHCP, Static IP, PPPoE |
