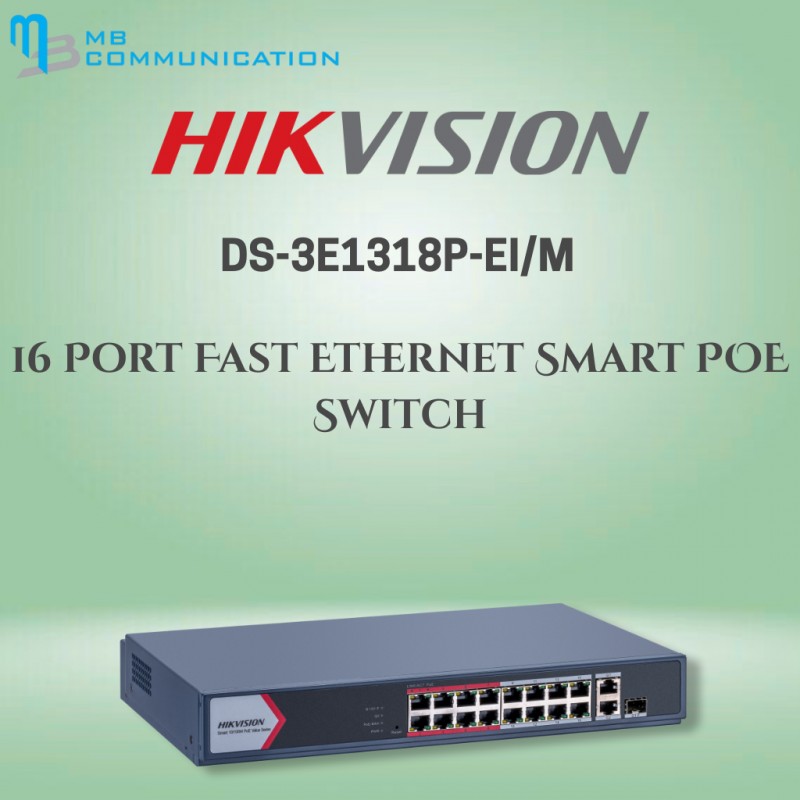

Hikvision DS-3E1318P-EI/M View larger

Hikvision DS-3E1318P-EI/M

DS-3E1318P-EI/M

New product

16 Port Fast Ethernet Smart POE Switch

  • 16 × 10/100M PoE ports, 1 × Gigabit RJ45 port,1 × Gigabit combo
  • Total PoE Power Budget 130 W
  • Support 802.1Q VLAN
  • Support PoE watchdog to detect and restart the cameras that do not respond
  • Support STP/RSTP Loop prevention

More details

In Stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-3E1318P-EI/M Features and Benefits

Features:

Hikvision DS-3E1318P-EI/M Description

CategorySpecification
General
Shell Metal material
Net Weight 1.8 kg (4.0 lb)
Gross Weight 3.0 kg (6.6 lb)
Dimensions (W × H × D) 440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')
Operating Temperature 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 100-240 VAC, 50/60 Hz, Max. 3 A
Installation Mode Rack (equipped with mounting ears)
Max. Power Consumption 150 W
Power Consumption (Idle) 20 W
Surge Protection 6 kV
Network Parameters
Ports 16 × 10/100 Mbps PoE port, 1 × Gigabit RJ45 port, 1 × Gigabit combo
MAC Address Table 16 K
Switching Capacity Whole-Device: 9.2 Gbps / Port: 7.2 Gbps
Packet Forwarding Rate Whole-Device: 6.84 Mpps / Port: 5.36 Mpps
Internal Cache 4 Mbits
PoE Power Supply
PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Ports Ports 1 to 16
Max. Port Power 30 W
PoE Power Budget 130 W
Software Functions
Long Range Ports 1–16: up to 300 m (depends on camera/cable)
VIP Port Ports 1–8: priority forwarding when bandwidth insufficient
Port Isolation Ports 1–16: enhance security, isolation enabled
PoE Watchdog Ports 1–16: auto detect & restart non-responsive cameras
Link Aggregation Static, supports 1 aggregation group
Loop Prevention 802.1D STP, 802.1w RSTP
VLAN 802.1Q, VLAN ID 1–4094, Trunk/Access mode, Max. 4094 VLANs
HPP (Hik-Partner Pro) Remote management, port monitoring, PoE usage, alarms, upgrades, etc.
System Maintenance Web management, DHCP Client (default), Super IP (10.180.190.200), Hik-Central Pro, Hik-Partner Pro, cable detection, LLDP, port mirroring
Approval
EMC CE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32:2015)
Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014 2nd Ed.), CE-LVD (EN 62368-1:2014+A11:2017)
Chemistry CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
