  8. Hikvision DS-2CD1327G2H-LIU
Hikvision DS-2CD1327G2H-LIU View larger

Hikvision DS-2CD1327G2H-LIU

DS-2CD1327G2H-LIU

New product

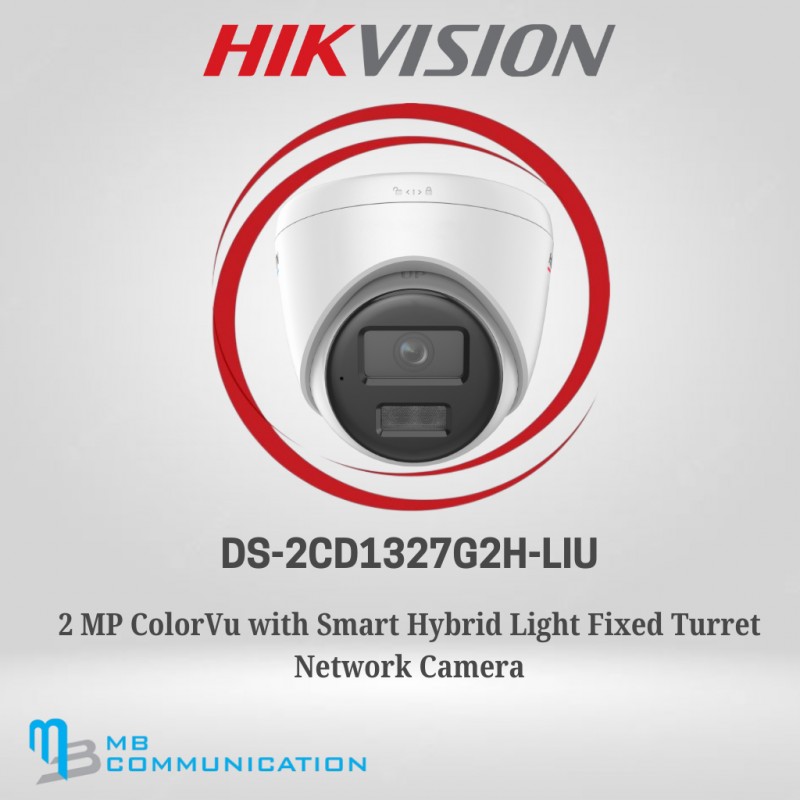

2 MP ColorVu with Smart Hybrid Light Fixed Turret Network Camera

  • High quality imaging with 2 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology

More details

In Stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1327G2H-LIU Features and Benefits

Features:

Hikvision DS-2CD1327G2H-LIU Description

CategorySpecification
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°
Lens Type Fixed focal lens, 2.8 mm & 4 mm optional
Focal Length & FOV 2.8 mm: HFOV 106°, VFOV 56°, DFOV 129°4 mm: HFOV 88°, VFOV 47°, DFOV 103°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
DORI (2.8 mm) D: 44 m, O: 17 m, R: 8 m, I: 4 m
DORI (4 mm) D: 53 m, O: 21 m, R: 10 m, I: 5 m
Illuminator Type IR, White Light
Illuminator Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 25 fps (1080p/720p)60 Hz: 30 fps (1080p/720p)
Sub Stream 50 Hz: 25 fps (640×480, 640×360)60 Hz: 30 fps (640×480, 640×360)
Video Compression H.265+/H.265/H.264+/H.264, MJPEG
Video Bit Rate 32 Kbps – 8 Mbps
H.264 Profiles Baseline, Main, High
H.265 Profiles Main Profile
Bit Rate Control CBR, VBR
ROI 1 fixed region (main stream)
Audio Type Mono
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 16–160 Kbps (varies by codec)
Audio Sampling Rate 8 kHz/16 kHz
Noise Filtering Yes
Network Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
Simultaneous Live View Up to 6 channels
API ONVIF (Profiles S/T/G for -F), ISAPI, SDK
Security Password protection, audit log, MAC binding, digest auth
User Accounts Up to 32 (Admin/Operator/User)
Client Software iVMS-4200, Hik-Connect
Web Browser Support IE 10/11 (plug-in), Chrome 57+, Firefox 52+, Edge 89+
Image Settings Rotate, brightness, contrast, sharpness, gain, WB
Day/Night Modes Day, Night, Auto, Schedule
WDR Digital WDR
SNR ≥ 52 dB
Enhancements BLC, HLC, 3D DNR
Privacy Masking 4 programmable polygon masks
Ethernet Port 1 × RJ45, 10/100 Mbps
On-Board Storage MicroSD/SDHC/SDXC, up to 512 GB (-F models)
Built-in Mic Yes
Reset Button Yes (-F models)
Event Detection Motion detection (human/vehicle), tamper, exception
Event Linkage FTP upload, capture, recording, email, notify center
Power Supply 12 VDC ±25% (5.4 W max), PoE (802.3af Class 3, 6.5 W max)
Material Metal & Plastic
Dimensions Ø110 × 93 mm (Ø4.33" × 3.66")
Package Dimensions 150 × 150 × 141 mm (5.91" × 5.91" × 5.55")
Weight 380 g (0.8 lb)
With Package Weight 611 g (1.3 lb)
Operating Temp/Humidity -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH
Storage Temp/Humidity -30 °C to 60 °C, ≤95% RH
Languages English, Ukrainian
Functions Heartbeat, anti-banding, mirror, password reset via email
Certifications (EMC) CE-EMC, RCM, IC
Certifications (Safety) UL, CB, CE-LVD, BIS
Environmental CE-RoHS, WEEE, REACH
Protection IP67
