  8. Hikvision DS-2CD1347G2H-LIU
Hikvision DS-2CD1347G2H-LIU View larger

Hikvision DS-2CD1347G2H-LIU

DS-2CD1347G2H-LIU

New product

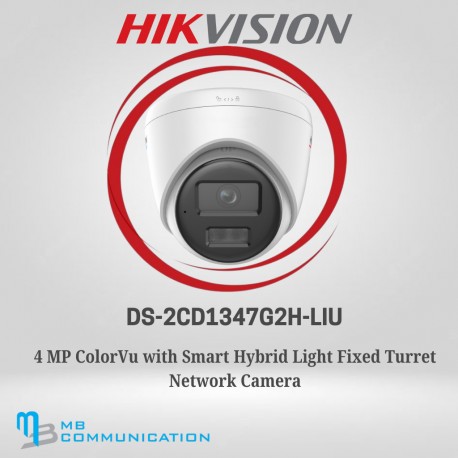

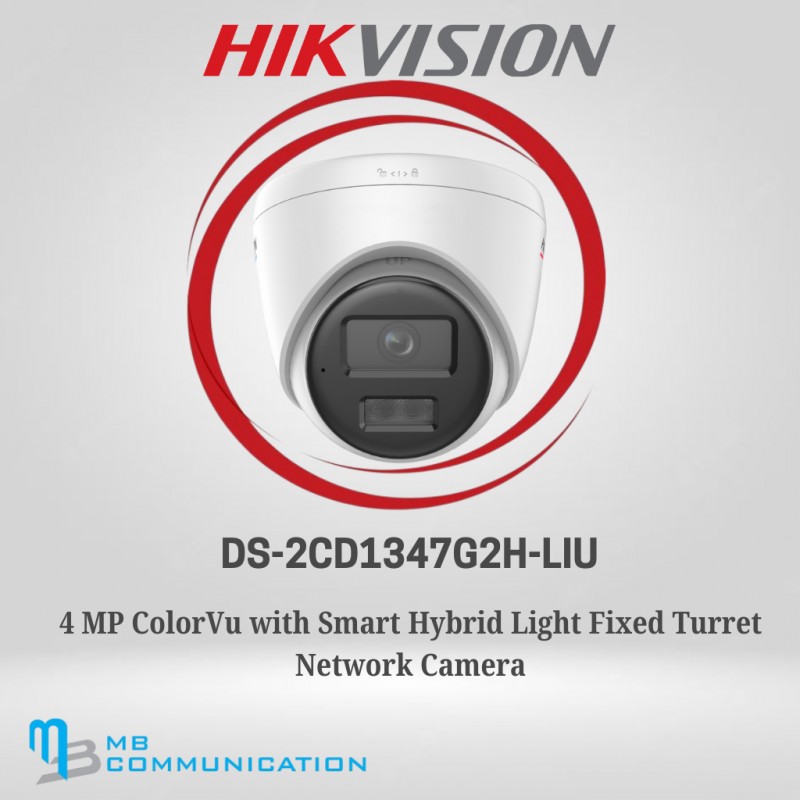

4 MP ColorVu with Smart Hybrid Light Fixed Turret Network Camera

  • High quality imaging with 4 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology
  • Support on-board storage up to 512 GB (SD card slot) (Optional)

More details

In Stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1347G2H-LIU Features and Benefits

Features:

Hikvision DS-2CD1347G2H-LIU Description

CategorySpecification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°
Lens
Lens Type Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV 2.8 mm: H96°/V52°/D114°; 4 mm: H80°/V43°/D93°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
DORI 2.8 mm: D 63 m, O 25 m, R 12 m, I 6 m; 4 mm: D 77 m, O 30 m, R 15 m, I 7 m
Illuminator
Supplement Light Type IR, White Light
Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 2560×1440 @20fps, 1920×1080/1280×720 @25/24fps
Sub-Stream 1280×720/640×480/640×360 @25/24fps
Compression H.265+/H.265/H.264+/H.264, MJPEG
Bit Rate 32 Kbps – 8 Mbps
H.264 Profile Baseline/Main/High
H.265 Profile Main
Bit Rate Control CBR, VBR
ROI 1 fixed region
SVC H.264 / H.265
Audio
Audio Type Mono
Compression G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
Bit Rate 16–160 Kbps
Sampling Rate 8 kHz / 16 kHz
Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS, FTP, SMTP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, T, G), ISAPI, SDK
Security Password, authentication, watermark, audit log
Users Up to 32 (Admin/Operator/User)
Clients iVMS-4200, Hik-Connect
Browser Support IE 10/11 (plugin), Chrome 57+, Firefox 52+, Edge 89+
Settings Rotate, saturation, brightness, contrast, sharpness, gain, white balance
Day/Night Modes Day, Night, Auto, Schedule
WDR 120 dB
SNR ≥ 52 dB
Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 programmable regions
Interface
Ethernet 1 RJ45 10M/100M
On-Board Storage Up to 512 GB microSD (on -F models)
Built-in Mic Yes
Reset Key Yes (-F models)
Events
Basic Events Motion detection, tamper alarm, exception
Linkage Record/upload, FTP, email, snapshots, notifications
General
Power 12 VDC ±25% (max 6 W), PoE (IEEE 802.3af, Class 3, max 7.5 W)
Material Metal & Plastic
Dimensions Ø110 × 93 mm
Weight ~420 g (656 g with package)
Storage Conditions -30°C to 60°C, ≤95% RH
Operating Conditions -30°C to 60°C, ≤95% RH
Languages English, Ukrainian
Functions Heartbeat, mirror, anti-banding, password protection, reset by email
Certifications & Standards CE, UL, BIS, RCM, IC, EMC, LVD, RoHS, WEEE, IP67
