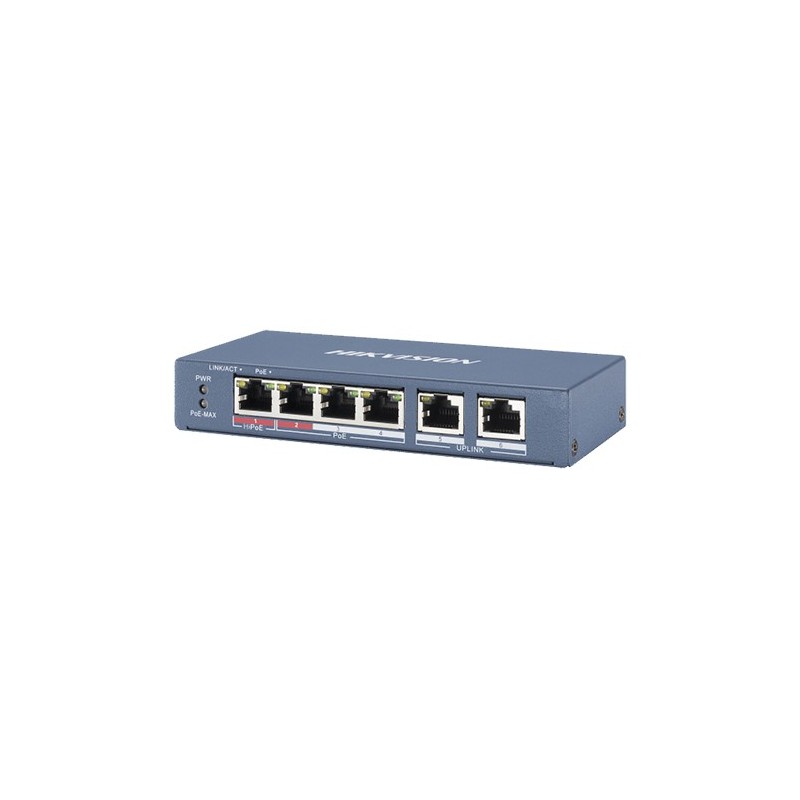

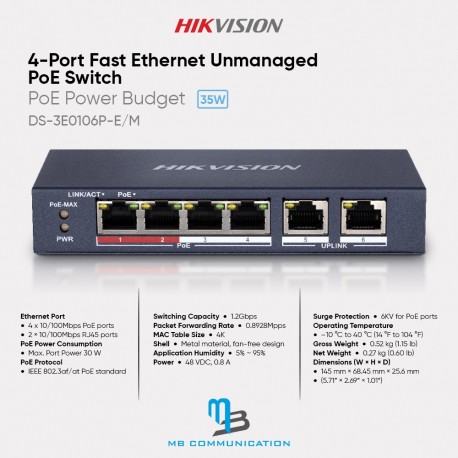

Hikvision DS-3E0106P-E/M
DS3E0106PEM
New product
4 Port Fast Ethernet Unmanaged POE Switch
- 4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports.
- IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
In Stock
WhatsApp
More info
Product Information:
Hikvision DS-3E0106P-E/M Features and Benefits
Features:
Hikvision DS-3E0106P-E/M Description
4 Port Fast Ethernet Unmanaged POE Switch
- 4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports.
- IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
Specifications
|
Network Parameters |
|
|
Port Number |
4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports |
|
Port Type |
RJ45 port, full duplex, MDI/MDI-X adaptive |
|
Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|
Forwarding mode |
Store-and-forward switching |
|
Working Mode |
Standard mode (default), Extend mode |
|
High Priority Ports |
Ports 1 and 2 |
|
Ports for long-distance transmission |
Ports 1 to 4 |
|
MAC address table |
4 K |
|
Switching capacity |
1.6 Gbps |
|
Packet forwarding rate |
0.8928 Mpps |
|
Internal cache |
768 Kbits |
|
PoE Power Supply |
|
|
PoE standard |
Ports 1 to 4: IEEE 802.3af, IEEE 802.3at |
|
PoE power pin |
Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously. |
|
PoE port |
Ports 1 to 4 |
|
Max. port power |
Ports 1 to 4: 30 W |
|
PoE power budget |
35 W |
|
Dialing Function |
|
|
Long range |
Ports 1 to 4: up to 300 m |
|
General |
|
|
Shell |
Metal material, fan-free design |
|
Gross weight |
0.52 kg (1.15 lb) |
|
Net weight |
0.265 kg (0.58 lb) |
|
Dimension (L × H × D) |
145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”) |
|
Operating temperature |
-10°C to 40°C (14°F to 104°F) |
|
Storage temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Operating humidity |
5% to 95% (no condensation) |
|
Storage humidity |
5% to 95% (no condensation) |
|
Power supply |
48 VDC, 0.8 A |
|
Power consumption in idle |
< 5 W |
|
Max. power consumption |
38 W |
|
Power source |
38 W |
