  8. Hikvision DS-2CD1363G2-LIUF/SL
Hikvision DS-2CD1363G2-LIUF/SL View larger

Hikvision DS-2CD1363G2-LIUF/SL

DS-2CD1363G2-LIUF/SL

New product

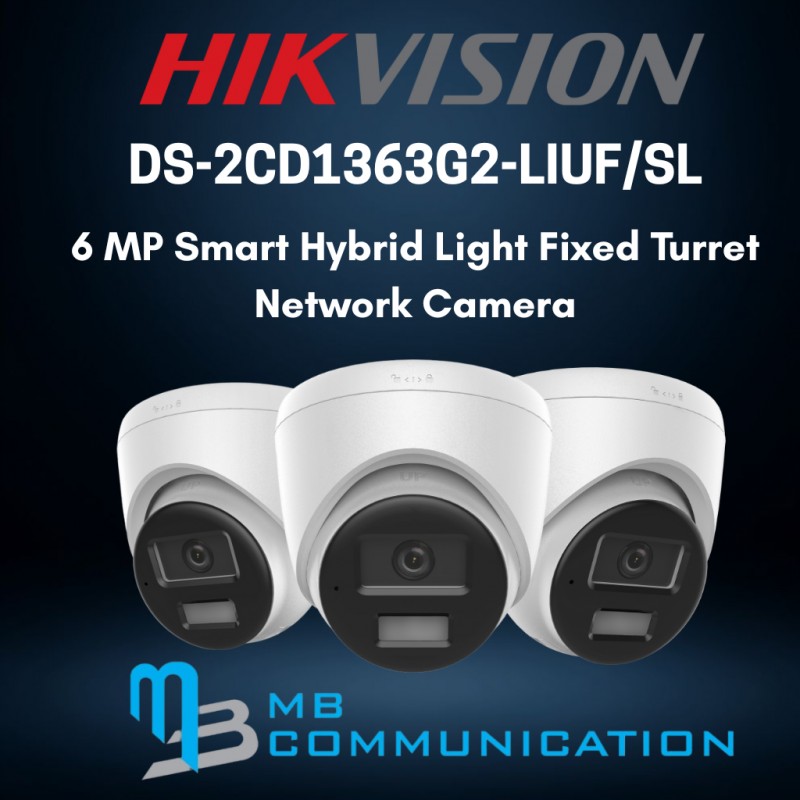

6 MP Smart Hybrid Light Fixed Turret Network Camera

  • High quality imaging with 6 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology

More details

In Stock

Whatsapp MB WhatsApp

Rs 15,390

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1363G2-LIUF/SL Features and Benefits

Features:

Hikvision DS-2CD1363G2-LIUF/SL Description

CategorySpecification
Camera
Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°
Lens
Lens Type Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV 2.8 mm: H 105°, V 55°, D 127°; 4 mm: H 78°, V 38°, D 96°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI Distance
2.8 mm D: 76 m, O: 30 m, R: 15 m, I: 7 m
4 mm D: 115 m, O: 45 m, R: 23 m, I: 11 m
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz/60 Hz: 20 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
Sub-Stream 50 Hz/60 Hz: 20 fps (1280×720, 640×480, 640×360)
Video Compression Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG
Bit Rate 32 Kbps to 16 Mbps
H.264 Profile Baseline, Main, High
H.265 Profile Main
Bit Rate Control CBR, VBR
ROI 1 fixed region (main stream)
SVC H.264 & H.265 encoding
Audio
Audio Type Mono
Sampling Rate 8 kHz / 16 kHz
Noise Filtering Yes
Audio Compression G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
Audio Bit Rate 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC)
Network
Security Password protection, watermark, authentication, security audit log
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S/T/G), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
Users Up to 32 (Administrator, Operator, User)
Client iVMS-4200, Hik-Connect
Web Browser Live view: IE10/11; Local service: Chrome 57+, Firefox 52+, Edge 89+
WDR 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
Privacy Mask 4 programmable polygon masks
Interface
Ethernet 1 RJ45 10/100M self-adaptive port
Storage microSD/microSDHC/microSDXC up to 512 GB
Built-in Mic Yes
Built-in Speaker Max. 1.5 W, 95 dB @ 10 cm
Reset Key Yes
Event
Basic Event Motion detection (human/vehicle), tampering, exception
Linkage Upload to FTP/NAS/SD, notify center, email, trigger recording/capture, audible warning, flashing light
General
Power 12 VDC ± 25%, 0.66 A, max. 8 W; PoE IEEE 802.3af Class 3, max. 9.5 W
Material Metal & Plastic
Dimension Ø110 mm × 102.7 mm (Ø4.33" × 4.04")
Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Net: 340 g (0.7 lb), With package: 560 g (1.2 lb)
Storage Conditions -30°C to 60°C (-22°F to 140°F), ≤95% RH (non-condensing)
Operating Conditions -30°C to 60°C (-22°F to 140°F), ≤95% RH (non-condensing)
Language English, Ukrainian
Functions Heartbeat, anti-banding, mirror, password protection, email reset
Flashing Light Yes
Approvals & Protection
EMC CE-EMC: EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014
RCM AS/NZS CISPR 32:2015
IC ICES-003 Issue 7
Safety UL 62368-1, IEC/EN 62368-1, BIS IS 13252
Environment CE-RoHS 2011/65/EU, WEEE 2012/19/EU, Reach EC 1907/2006
Protection IP67 (IEC 60529-2013)
