Hikvision DS-2CD1T67G2HP-LIUF/SL View larger

Hikvision DS-2CD1T67G2HP-LIUF/SL

DS-2CD1T67G2HP-LIUF/SL

New product

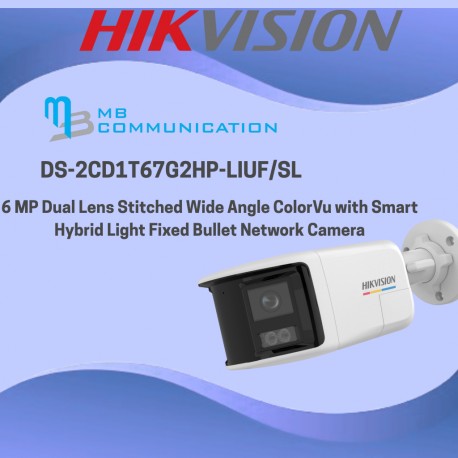

6 MP Dual Lens Stitched Wide Angle ColorVu with Smart Hybrid Light Fixed Bullet Network Camera

  • High quality imaging with 6 MP resolution
  • 24/7 colorful imaging
  • Support Person and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range cover
  • Provide real-time security via built-in two-way audio

More details

In Stock

Whatsapp MB WhatsApp

Rs 30,680

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1T67G2HP-LIUF/SL Features and Benefits

Features:

Hikvision DS-2CD1T67G2HP-LIUF/SL Description

CategorySpecification
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Max. Resolution 3632 × 1632
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1 s to 1/100,000 s
Day & Night 24/7 color imaging
Angle Adjustment Pan: 0°–360°, Tilt: 0°–180°, Rotate: 0°–360°
Lens
Lens Type Fixed focal lens, 2.8 mm
Focal Length & FOV 2.8 mm, Horizontal FOV: 180°, Vertical FOV: 79°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
DORI 2.8 mm: D: 44 m, O: 17 m, R: 8 m, I: 4 m
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 20 fps (3632 × 1632); 60 Hz: 20 fps (3632 × 1632)
Sub-Stream 50 Hz: 20 fps (1200×536, 960×432); 60 Hz: 20 fps (1200×536, 960×432)
Video Compression Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline/Main/High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
SVC H.264 and H.265 encoding
ROI 1 fixed region (main stream)
Audio
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz / 16 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4/IPv6, IGMP, UDP, QoS, FTP, SMTP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S/T/G), ISAPI, SDK
Users/Hosts Up to 32 users (admin/operator/user)
Security Password protection, watermark, digest authentication, MAC authentication, audit log
Client iVMS-4200, Hik-Connect
Web Browser Live view: IE 11; Local: Chrome 80+, Firefox 80+, Edge 89+
Image Settings Rotate, saturation, brightness, contrast, sharpness, gain, white balance
Day/Night Switch Day/Night/Auto/Schedule
WDR 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 programmable polygon masks
Interface
Ethernet 1 RJ45 10/100M self-adaptive port
On-Board Storage microSD/microSDHC/microSDXC up to 512 GB
Built-in Mic Yes
Built-in Speaker Yes, max. 2 W, 97 dB @10 cm
Reset Key Yes
Event
Basic Event Motion detection (human/vehicle), tampering alarm
Linkage Upload to FTP/SD, email, trigger recording, audible warning, strobe light
General
Power 12 VDC ± 25%, 0.83 A, max. 10 W; PoE IEEE 802.3af Class 3, max. 11.5 W
Material Front: Metal; Body: Plastic; Bracket: Metal
Dimension 103.6 × 76 × 234.5 mm (4.1" × 3.0" × 9.2")
Package Dimension 260 × 140 × 115 mm (10.2" × 5.5" × 4.5")
Weight 560 g (1.2 lb); with package: 835 g (1.8 lb)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-condensing)
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-condensing)
Language English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
General Functions Heartbeat, anti-banding, password protection, password reset via email
Flashing Light SRB: Red & Blue; SL: White
Compliance & Protection
EMC CE-EMC, IC, KC
Safety IEC 62368-1:2014+A11, BIS: IS 13252 (Part 1)
Environment CE-RoHS, WEEE, REACH
Protection IP67 (IEC 60529:2013)
