  8. Hikvision DS-2CD1367G2H-LIU

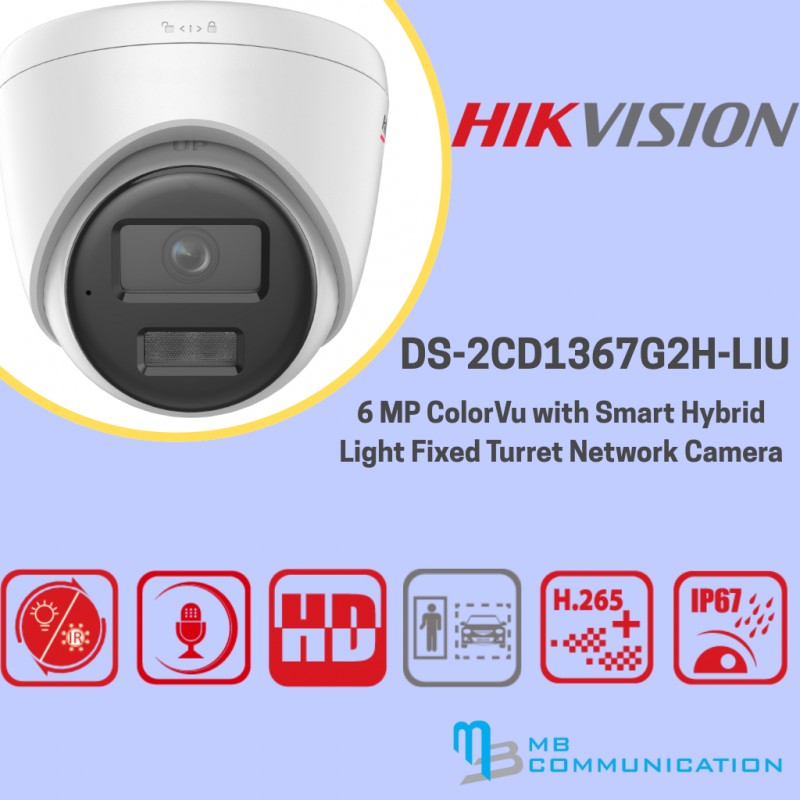

Hikvision DS-2CD1367G2H-LIU View larger

Hikvision DS-2CD1367G2H-LIU

DS-2CD1367G2H-LIU

New product

6 MP ColorVu with Smart Hybrid Light Fixed Turret Network Camera

  • High quality imaging with 6 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology

More details

In Stock

Whatsapp MB WhatsApp

Rs 17,470

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1367G2H-LIU Features and Benefits

Features:

Hikvision DS-2CD1367G2H-LIU Description

CategorySpecification
Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°
Lens Type Fixed focal lens, 2.8 mm & 4 mm optional
Focal Length & FOV 2.8 mm: HFOV 115°, VFOV 60°, DFOV 143°; 4 mm: HFOV 94°, VFOV 50°, DFOV 110°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
DORI 2.8 mm: D64 m, O25 m, R12 m, I6 m; 4 mm: D77 m, O30 m, R15 m, I7 m
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 20 fps (3200×1800, 2688×1520, 1920×1080, 1280×720) – 50/60Hz
Sub-Stream 20 fps (1280×720, 640×480, 640×360) – 50/60Hz
Video Compression H.265+/H.265/H.264+/H.264 (main), H.265/H.264/MJPEG (sub)
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline, Main, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
ROI 1 fixed region (main stream)
SVC H.264 & H.265 encoding
Audio Type Mono
Audio Compression G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
Audio Bit Rate 64Kbps (G.711), 16Kbps (G.722.1), etc.
Audio Sampling Rate 8 kHz / 16 kHz
Noise Filtering Yes
Network Protocols TCP/IP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, FTP, SMTP, UPnP, QoS
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S/T/G for -F), ISAPI, SDK
User/Host Up to 32 users (admin/operator/user)
Security Password protection, authentication, watermark
Image Settings Rotate, saturation, brightness, contrast, sharpness, gain, WB
Day/Night Switch Day, Night, Auto, Schedule
WDR 120 dB
SNR ≥52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 programmable polygon masks
Ethernet Interface 1 RJ45 10M/100M self-adaptive
On-board Storage microSD/microSDHC/microSDXC up to 512GB (-F)
Built-in Microphone Yes
Reset Key Yes (-F)
Basic Events Motion detection (human/vehicle), video tampering, exception
Event Linkage Upload to SD/FTP, trigger recording, send email, capture
Power 12V DC ±25%, max 6.6W; PoE IEEE 802.3af Class 3 (max 8.0W)
Material Metal & Plastic
Dimensions Ø110 × 102.7 mm
Package Dimension 150 × 150 × 141 mm
Weight 415 g (camera), 656 g (with package)
Operating Temp & Humidity -30°C to 60°C; Humidity ≤95% (non-condensing)
Languages English, Ukrainian
General Functions Heartbeat, mirror, anti-banding, password reset
Certifications CE, UL, CB, RCM, IC, BIS
Environmental Standards CE-RoHS, WEEE, Reach
Protection IP67 (IEC 60529-2013)
