View larger

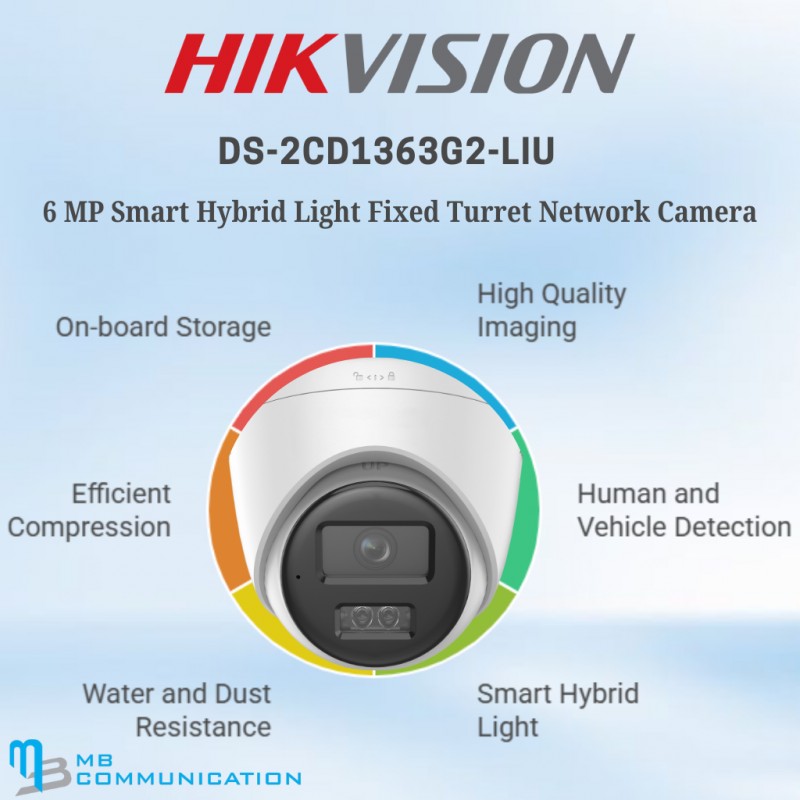

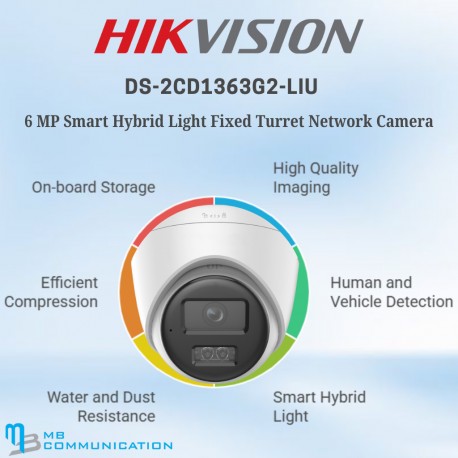

Hikvision DS-2CD1363G2-LIU
DS-2CD1363G2-LIU
New product
6 MP Smart Hybrid Light Fixed Turret Network Camera
- High quality imaging with 6 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Water and dust resistant (IP67)
In Stock
WhatsApp
Rating:
Be the first to write a review!
More info
Product Information:
Hikvision DS-2CD1363G2-LIU Features and Benefits
Features:
Hikvision DS-2CD1363G2-LIU Description
| Category | Specification |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° |
| Lens Type | Fixed focal lens, 2.8 mm / 4 mm optional |
| Focal Length & FOV | 2.8 mm: H 105°, V 55°, D 127°4 mm: H 78°, V 38°, D 96° |
| Lens Mount | M12 |
| Aperture | F1.6 |
| DORI (Detection/Observation/Recognition/Identification) | 2.8 mm: D 76 m, O 30 m, R 15 m, I 7 m4 mm: D 115 m, O 45 m, R 23 m, I 11 m |
| Supplement Light | IR & White Light |
| Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video Frame Rate (Main Stream) | 50 Hz: 20 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)60 Hz: 20 fps (same resolutions) |
| Sub-Stream | 50 Hz: 20 fps (1280×720, 640×480, 640×360)60 Hz: 20 fps (same resolutions) |
| Video Compression | H.265+/H.265/H.264+/H.264, MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Type | Mono, noise filtering |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Network Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profiles S/T/G*), ISAPI, SDK |
| Client Software | iVMS-4200, Hik-Connect |
| Web Browser Support | IE10/11 (plug-in), Chrome 57+, Firefox 52+ |
| Image Features | 120 dB WDR, ≥52 dB SNR, Day/Night/Auto, BLC, HLC, 3D DNR |
| Privacy Mask | 4 polygon zones |
| Ethernet Interface | 1×RJ45 10/100M |
| On-Board Storage | MicroSD/SDHC/SDXC up to 256 GB (-F model) |
| Built-in Mic | Yes |
| Events | Motion detection, tampering, exception |
| Event Linkage | FTP upload, email, trigger recording/capture |
| Power Supply | 12 VDC ±25% (max 5 W), PoE IEEE 802.3af Class 3 (max 6.5 W) |
| Material | Metal & Plastic |
| Dimensions | Ø110 × 93 mm |
| Weight | 340 g (camera), 560 g (with package) |
| Operating Temp | -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤95% |
| Storage Temp | -30 °C to 60 °C, Humidity ≤95% |
| Approvals (EMC) | CE, RCM, ICES |
| Safety | UL 62368-1, IEC 62368-1, CE-LVD |
| Environment | CE-RoHS, WEEE, REACH |
| Protection | IP67 |
