View larger

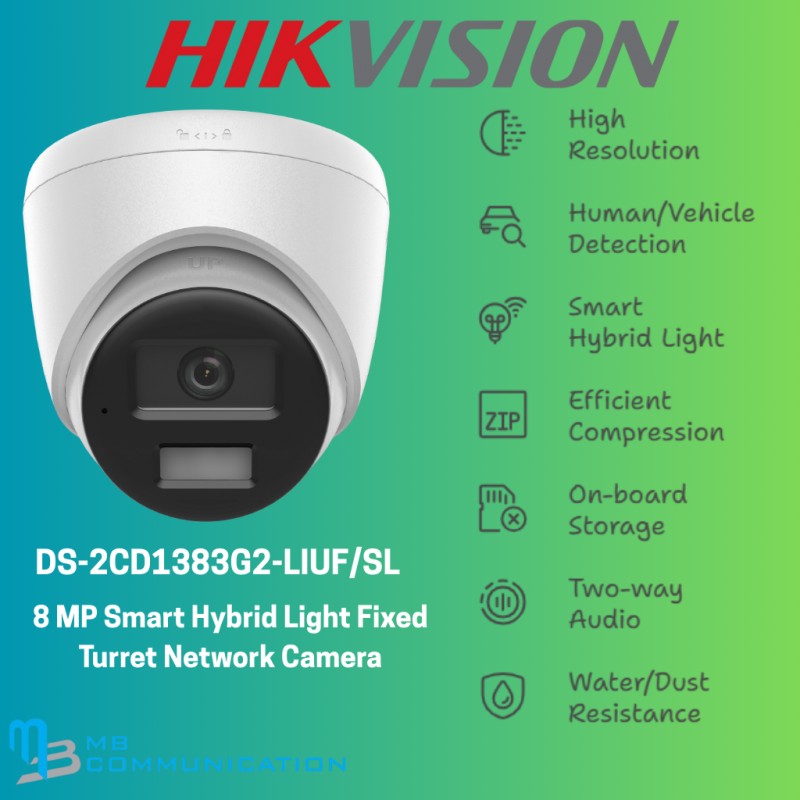

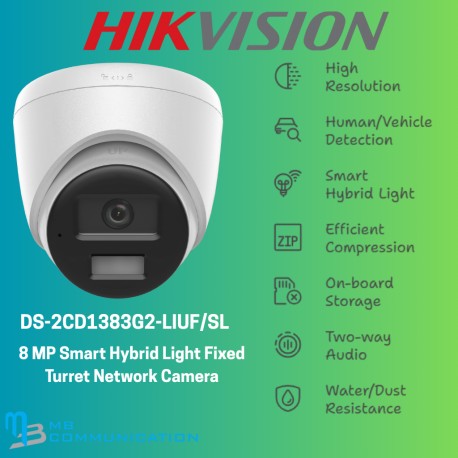

Hikvision DS-2CD1383G2-LIUF/SL
DS-2CD1383G2-LIUF/SL
New product
8 MP Smart Hybrid Light Fixed Turret Network Camera
- High quality imaging with 8 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
In Stock
WhatsApp
Rating:
Be the first to write a review!
More info
Product Information:
Hikvision DS-2CD1383G2-LIUF/SL Features and Benefits
Features:
Hikvision DS-2CD1383G2-LIUF/SL Description
| Category | Specification |
|---|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° |
| Lens Type | Fixed focal lens, 2.8 mm / 4 mm optional |
| Focal Length & FOV | 2.8 mm: H 113°, V 62°, D 134° / 4 mm: H 90°, V 49°, D 108° |
| Lens Mount | M12 |
| Aperture | F2.0 (Fixed Iris) |
| DORI (2.8 mm) | D: 79 m, O: 31 m, R: 15 m, I: 7 m |
| DORI (4 mm) | D: 102 m, O: 40 m, R: 20 m, I: 10 m |
| Illuminator Type | IR & White Light |
| Illuminator Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Main Stream | 12.5 fps (50 Hz) / 15 fps (60 Hz) @ 3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720 |
| Sub Stream | 12.5 fps (50 Hz) / 15 fps (60 Hz) @ 1280×720, 640×480, 640×360 |
| Video Compression | H.265+/H.265/H.264+/H.264, MJPEG |
| Bit Rate | 32 Kbps – 16 Mbps (CBR/VBR) |
| Profiles | H.264: Baseline/Main/High, H.265: Main |
| ROI | 1 fixed region |
| Audio Input | Built-in mono microphone |
| Audio Output | Built-in speaker (95 dB @10cm, 1.5 W) |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Audio Bitrate | 16–160 Kbps |
| Noise Filtering | Yes |
| Protocols | TCP/IP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, FTP, SMTP, UPnP |
| API | ONVIF (Profile S/T/G), ISAPI, SDK |
| Users | Up to 32 (Admin/Operator/User) |
| Simultaneous Live View | Up to 6 channels |
| Security | Password protection, watermark, WSSE, MAC authentication, audit log |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Brightness, Contrast, Sharpness, Gain, White Balance, Rotate Mode |
| Privacy Mask | 4 programmable polygon masks |
| Ethernet Port | 1 × RJ45 (10/100 Mbps) |
| On-board Storage | MicroSD/SDHC/SDXC up to 512 GB |
| Reset Key | Yes |
| Events | Motion (human/vehicle), tampering, exception |
| Event Linkage | FTP/NAS upload, email, recording, snapshot, audible alarm, flashing light |
| Power Supply | 12 VDC ±25% (8 W max) / PoE IEEE 802.3af (9.5 W max) |
| Material | Metal & Plastic |
| Dimensions | Ø110 × 102.7 mm |
| Weight | 385 g (net) / 586 g (with package) |
| Operating Temp. | -30 °C to 60 °C, Humidity ≤ 95% (non-condensing) |
| Storage Temp. | -30 °C to 60 °C |
| Protection | IP67 |
| Languages | English, Ukrainian |
| Certifications (EMC) | CE-EMC, RCM, IC |
| Certifications (Safety) | UL, CB, CE-LVD, BIS |
| Environmental Compliance | CE-RoHS, WEEE, REACH |
