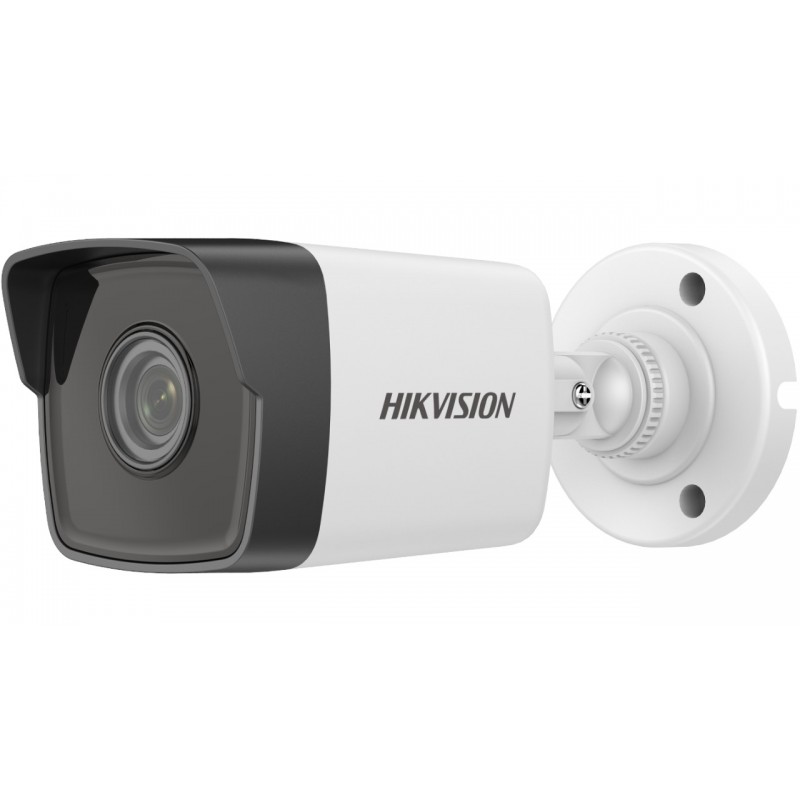

Hikvision DS-2CD1043G0-I

MP Fixed Bullet Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Water and dust resistant (IP67)
• EXIR 2.0: Advanced infrared technology with long IR range
• Built-in microphone for real-time audio security

Specification

• Camera
• Image Sensor 1/3" progressive scan CMOS
• Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow Shutter Yes
• Wide Dynamic Range 120 dB
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

• Lens
• Focal Length & FOV

  2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°

  4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°

• Lens Mount M12
• Focus Fixed
• Aperture F2.0

• Illuminator
• IR Wavelength 850 nm
• IR Range Up to 30 m

• Video
• Max. Resolution 2560 × 1440
• Main Stream

  50 Hz: 20 fps (2560 × 1440)

  25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (2560 × 1440)

  30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate 32 Kbps to 8 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Region Of Interest (ROI) 1 fixed region for main stream

• Audio
• Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate 8 kHz/16 kHz
• Environment Noise Filtering Yes

• Network
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View Up to 6 channels
• API Open Network Video Interface, ISAPI
• User/Host Up to 32 users. 3 levels: administrator, operator and user
• Network Storage -UF: NAS (NFS, SMB/CIFS), ANR
• Client iVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch Auto, Schedule, Day, Night
• Image Enhancement BLC, 3D DNR

• Interface
• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage -UF: Built-in memory card slot, support microSD card, up to 256 GB
• Built-In Microphone -UF: Yes
• Hardware Reset -UF: Yes

• Event
• Basic Event Motion detection, video tampering, exception

• General
• Linkage Method

  Upload to FTP, notify surveillance center, send email

  -UF also supports: upload to memory card, trigger recording, trigger capture

• Camera Material Metal & Plastic
• Camera Dimension 177.6 mm × 66.2 mm × 67.8 mm (7.0" × 2.6" × 2.7")
• Package Dimension 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
• Camera Weight Approx. 270 g (0.6 lb.)
• With Package Weight Approx. 490 g (1.1 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Web Client Language English, Ukrainian
• General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware Version V5.5.120
• Power Consumption And Current

  12 VDC, 0.4 A, max. 5 W

  PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W

• Power Supply

  12 VDC ± 25%

  PoE: 802.3af, Class 3

• Power Interface Ø5.5 mm coaxial power plug

• Approval
• EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection IP67 (IEC 60529-2013)
