2. UBNT
  3. Ubiquiti PowerBeam M5

PowerBeam M5-400

PowerBeam M5-400

Ubiquiti - PowerBeam M5 400 Wireless Bridge

High-Performance airMAX Bridge

Model:

Model: PBE-M5-400

Uniform Beamwidth Maximizes Noise Immunity Innovative Mechanical Design
High-Speed Processor for Superior Performance


Plug and Play Installation

The PowerBeam™ requires no tools for assembly; only a single wrench is required for pole-mounting.

5 GHz airMAX Bridge with RF Isolated Reflector

Incorporating advanced engineering with proprietary airMAX technology, the PowerBeam M5 ISO is ideal for deployments requiring maximum performance and RF isolation. Models: PBE‑M5‑300‑ISO, PBE‑M5‑400‑ISO

Innovative Mechanical Design

The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.

  • Quick view
    Rs 31,200 Out of stock
    2 reviews

    Ubiquiti PBE-M5-400 PowerBeam M5 25dBi 5GHz AirMAX CPE Ubiquiti PBE-M5-400 PowerBeam M5 25dBi 5GHz AirMAX CPE 400mm 150+ Mbps. With an all-in-one design, the PBE-M5-400 PowerBeam airMAX Bridge from Ubiquiti Networks is an airMAX product meant to function as customer premises equipment (CPE).

    Rs 31,200
    Add to cart More
    Out of stock
    Add to Compare

Superior RF Isolation

Compare the two near-field plots, and note the superior performance of the integrated RF isolator. Both near-field plots are displayed in watts and use a linear scale.

Advanced Software Technology

Ubiquiti’s airMAX<  technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

High-Performance airMAX® Bridge
Model: PBE-M5-400

Uniform Beamwidth Maximizes Noise Immunity Innovative Mechanical Design
High-Speed Processor for Superior Performance



PowerBeam M5-400

Overview PowerBeam M5 400

Starting with the first-generation NanoBridge, Ubiquiti Networks pioneered the all-in-one design for an airMAX product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the PowerBeam.

Improved Noise Immunity:

The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design:

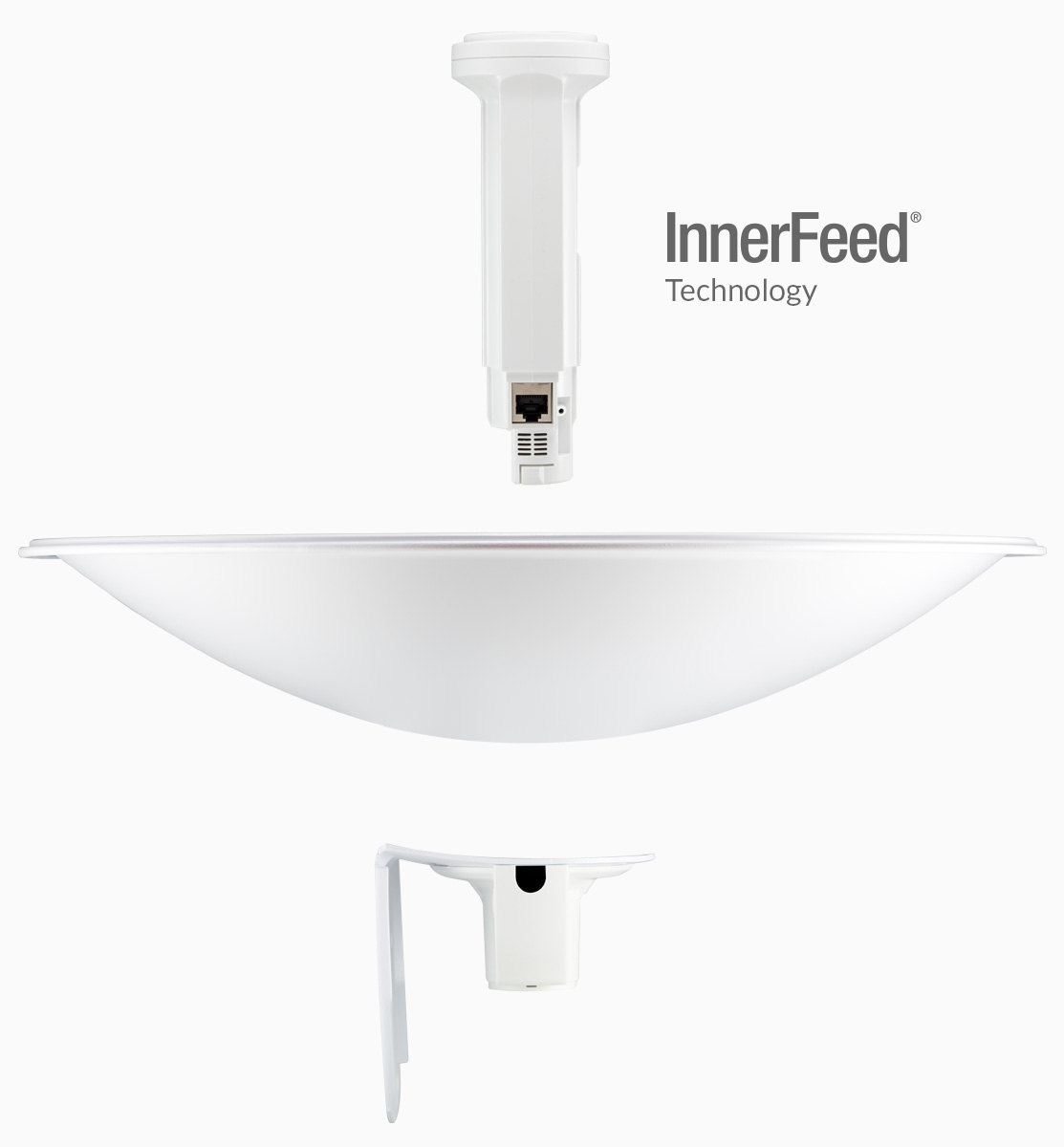

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing high performance and innovative mechanical design at a low cost, the PowerBeam is extremely versatile and cost-effective to deploy.

airMAX Technology Included:

Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time, slots scheduled by an intelligent AP controller.

This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.

Intelligent QoS Priority is given to voice/video for seamless streaming. Scalability High capacity and scalability, Long Distance Capable of high-speed, carrier-class links.

Application Examples:

The PowerBeam used as a CPE device for each client in an airMAX PtMP network.

PtP Link Use a PowerBeam on each side of a PtP link. airMAX TDMA Technology Time Slots

Packet Prioritization Up to 100 airMAX stations can be connected to an airMAX Sector; four airMAX stations are shown to illustrate the general concept.

PowerBeam M5-400 Connection Chart

UBNT PowerBeam M5-400 Software:

airOS® is an intuitive, versatile,
highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind
the user interface is a powerful firmware architecture, which
enables high-performance, outdoor multi-point networking.

  • Protocol Support

  • Ubiquiti Channelization

  • Spectral Width Adjustment

  • ACK Auto-Timing

  • AAP Technology

  • Multi-Language Support

    Integrated on all Ubiquiti M products, airView® provides advanced spectrum analyzer functionality: waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference.

  • Waterfall Aggregate energy over time for each frequency.

  • Waveform Aggregate energy collected.

  • Real-time Energy is shown in real time as a function of frequency.

  • Recording Automate airView to record and report results.

    airControl® is a powerful and intuitive, web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices.

  • Network Map

  • Monitor Device Status

  • Mass Firmware Upgrade

  • Web UI Access

  • Manage Groups of Devices

  • Task Scheduling



3

Datasheet PowerBeam M5 400:

Hardware Overview Innovative Mechanical Design

  • Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.

  • Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the PowerBeam on the pole.

  • Easy removal The antenna feed can be detached with the push of a button.

    Frequency Band Antenna Gain Dish Reflector

    Throughput Network Interface

Corrosion Resistance

• Fasteners GEOMET-coated for improved corrosion

resistance when compared with zinc-plated fasteners.

• Dish and brackets Made of galvanized steel that is powder-coated for superior corrosion resistance.

The redesigned pole bracket for the 400 mm dish and fender washers for the 300 mm dish prevent paint from being removed from the metal brackets for improved corrosion resistance.

PBE-M5-400

5 GHz

25 dBi

400 mm

150+ Mbps

10/100/1000

Ubiquiti PowerBeam M5-400 Price:

PowerBeam M5-400 - Product Ubiquiti PowerBeam M5-400 Price is Rs. 16,000
MB Communication always offer best competitive price of UBNT PowerBeam M5-400

PowerBeam M5-400 Firmware:

Download PowerBeam M5-400 Firmware <=- Click here
PowerBeam PBE-M5-400 Firmware can be download from this link, MB Communication always offer UBNT PowerBeam M5-400 latest firmware download option for all customers

Technical Specification of UBNT PowerBeam M5-400:

Manufacturer / Product: Ubiquiti Networks / PowerBeam M5-400
Processor Specs: Atheros MIPS 74KC, 560 MHz
Memory Information: 64MB SDRAM, 8MB Flash
Operating System: AirOS
Networking Interface: 1 x 10/100 BASE-TX (Cat. 5, RJ-45)
Frequency Band: Worldwide: 5170 - 5875 MHz
USA: 5725 - 5850 MHz
Supported Standards: IEEE 802.11a: 54MBit
IEEE 802.11n: 300MBit
TX Power: max. 26dBm
RX Sensitivity: min. -94dBm
TCP/IP Throughput: 150Mbps+
Range: up to 25km+
Antenna: 25dBi Dual-Linear Backfire Antenna
max. Power Consumption: 8 Watt
Power Method: Passive Power over Ethernet
PoE Injector is included!
Power Input: 12V - 24V (12 Watt)
ESD/EMP Protection: 24KV radio frequency and ethernet electrostatic discharge (ESD) protection.
Dimensions: 42 x 42 x 27.5 mm
Weight: 1.753 kg
max. Wind Load 342.5 N @ 200 km/h
Operating Temperature: -40°C to +70°C
Operating Humidity: 5 to 95% non condensing
Shock and Vibration:: IEC 68-2-6, IEC 68-2-14

UBNT PowerBeam M5-400 Distance:

PowerBeam M5-400 distance range is up to 25km+ , MB Communication has physically check this working distance range of PowerBeam M5-400.

PowerBeam M5-400 Default IP:

The default ip of PowerBeam M5-400 is https://192.168.1.20 , MB Communication is verify this default ip of UBNT PowerBeam-400 because of physically checked by our technically staff.
open your any web browser and write https://192.168.1.20 in the address field so you can access PowerBeam M5-400 configuration page.

UBNT PowerBeam M5-400 Price in Pakistan:

PowerBeam M5-400 Price in Pakistan is Rs. 16,000 by MB Communication, MB Communication is always offer best price of PowerBeam M5-400 in Pakistan.

UBNT PowerBeam M5-400 Point to Point Configuration:

MB Communication offer installing service to our client, MB Communication have very technical staff todo best environment connectivity of PowerBeam M5-400 Point to Point.
