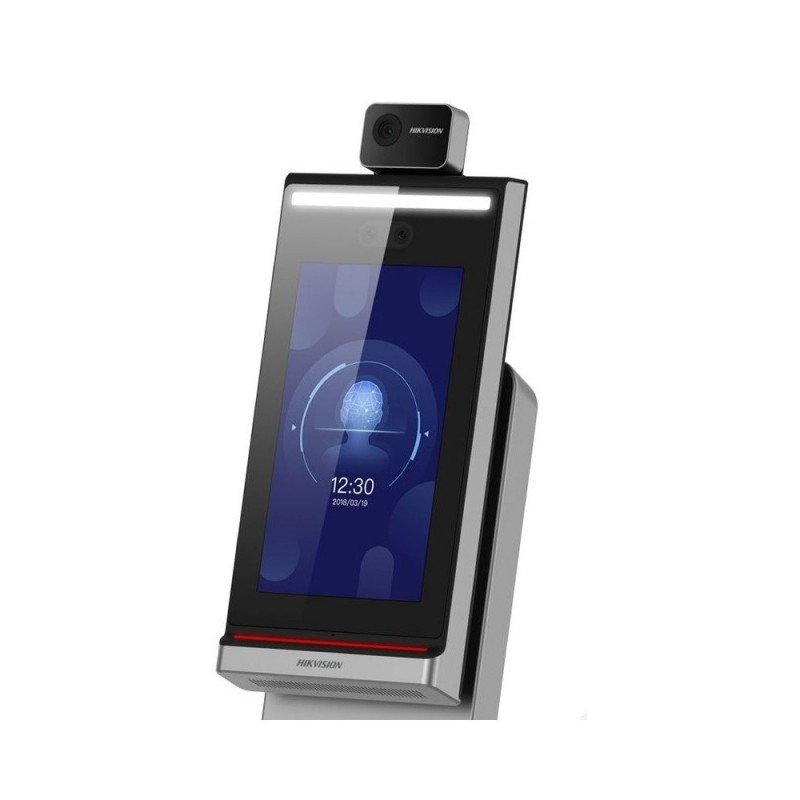

Hikvision DS-K5604A-3XF/V
Ultra Face Recognition Terminals
- Plug & play
- Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
- Recognition distance: 0.3 to 2 m
- Face mask detection
- Displays temperature measurement results on the authentication page
- 10.1-inch LCD touch screen,2 Mega pixel wide-angle lens
Rating:
Be the first to write a review!
- 100% genuine, brand-new stock
- Delivered across Pakistan
- Showroom: TechnoCity, Karachi
- Bulk & corporate pricing on request
More info
Hikvision DS-K5604A-3XF/V overview
Hikvision DS-K5604A-3XF/V - Ultra Face Recognition Terminals.
Key Features
- Plug & play
- Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
- Recognition distance: 0.3 to 2 m
- Face mask detection
- Displays temperature measurement results on the authentication page
- 10.1-inch LCD touch screen,2 Mega pixel wide-angle lens
- 50,000 face capacity and 100,000 event capacity
- Face recognition duration ＜ 0.2 s/User
Specifications
| Temperature measurement | |
|---|---|
| Temperature range | 30 °C to 45 °C (86 °F to 113 °F) |
| Sensor | Vanadium Oxide uncooled sensor |
| Resolution | 120 × 160 |
| Frame rate | 25 fps |
| Measurement accuracy | 0.1 °C |
| Measurement deviation | ± 0.5 °C, without black body calibration |
| Measuring distance | 0.3 to 2 m |
| Display | |
| Screen size | 10.1-inch |
| Type | Touch screen |
| Video | |
| FOV | HFOV: 87; VFOV: 46 |
| Resolution | 2 MP |
| Lens | Dual-lens |
| Network | |
| Wired network | Support, 10/100/1000 Mbps self-adaptive |
| Interface | |
| Network interface | 1 |
| RS-485 | 1 |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Alarm input | 2 |
| Alarm output | 1 |
| TAMPER | 1 |
| Capacity | |
| Face capacity | 50,000 |
| Event capacity | 100,000 |
| Authentication | |
| Face recognition duration | ＜ 0.2 s per person |
| Face recognition distance | 0.3 to 2 m |
| General | |
| Power supply | 12 VDC/2 A |
| Working temperature | 0 °C to 50 °C (32 °F to 122 °F) For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F) |
| Working humidity | 10 to 90% (No condensing) |
| Application environment | Indoor and windless environment use only |
| Function | |
| Face anti-spoofing | Support |
| Audio prompt | Support |
Specifications as published by Hikvision for model DS-K5604A-3XF/V.
