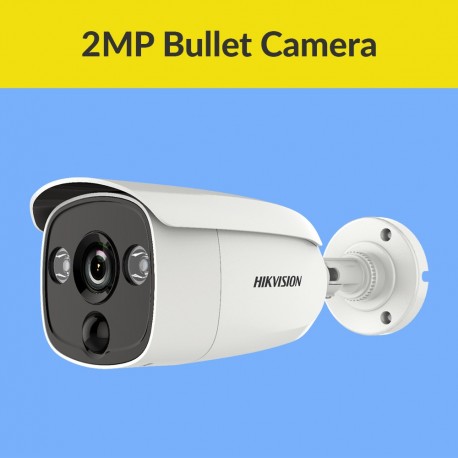

Hikvision DS-2CE12D8T-PIRLO 3.6mm

2 MP Ultra Low Light PIR Fixed Bullet Camera

• 2 MP high performance PIR bullet camera
• PIR detection, strobe light alarm and alarm out to warn off intruders in real time
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• EXIR 2.0: advanced infrared technology with 20 m IR distance
• Water and dust resistant (IP67)

Specification

• Camera
• Image Sensor: 2MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Minimum Illumination: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day And Night: ICR
• Angle Adjustment: Pan: 0 ° to 360 °, Tilt: 0 ° to 180 °, Rotate: 0 ° to 360 °
• System Signal: PAL / NTSC
• Luminous Alarm: And it is.

• Lens
• Lens: 2.8mm, 3.6mm fixed focal lens
• Focal Length & FOV

  2.8mm, horizontal FOV: 103.5 °, vertical FOV: 55 °, diagonal FOV: 119 °

  3.6mm, horizontal FOV: 79.1 °, vertical FOV: 43 °, diagonal FOV: 92 °

• Lens Mount: M12

• Image
• Image Parameter Switch: STD / HIGH-SAT
• Picture Settings: Brightness, Sharpness, DNR, Mirror, Smart IR
• Frame Rate: TVI: 1080p @ 25fps / 30fps
• Day / Night Mode: Auto / Color / BW (Black and White)
• Wide Dynamic Range (WDR): ≥130 dB
• White Balance: Auto / Manual
• White Light: AUTO / OFF
• AGC: Support

• Interface
• Video Output1 HD analog output

• General
• Material

  Front cover: Metal

  Main body: Plastic

• Dimension: 88.6mm × 81.3mm × 224.7mm (3.49 "× 3.20" × 8.85 ") (Approx. 443 g (0.98 lb.))
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensation)

• Communication: HIKVISION-C
• Idiom: English
• Power Supply

  12 VDC ±25%

  * You are recommended to use one power adapter to supply the power for one camera.

• Consumption: Max. 3.9 W
• IR Range: Up to 20 m

• Certifications
• Protection: IP67
