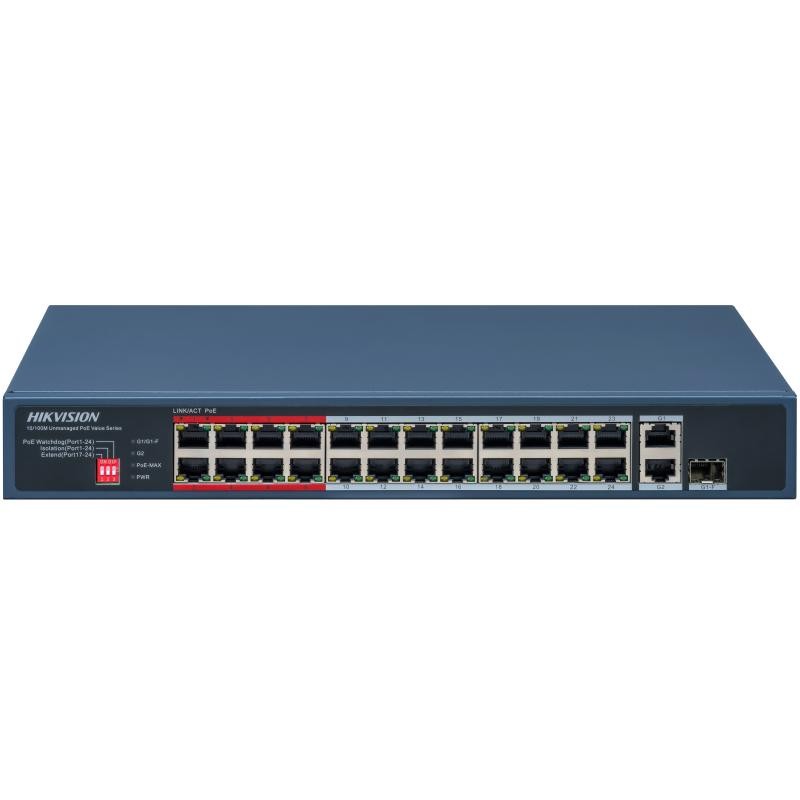

Hikvision DS-3E0326P-E/M(C)

Reference: DS-3E0326P-E/M(C)

Condition: New product

In Stock

24 Port Fast Ethernet Unmanaged POE Switch

Intelligent PoE Management When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
Up to 300 m Long Range PoE Transmission The distance between IPCs and switch can reach maximum 300 meters.
4/8-Core Adaptive Power Supply with Less Power Loss 8-core power supply reduces the power loss on cables
6 KV Surge Protection to Improve Reliability in Harsh Environment The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
Design for Video Transmission VIP port ensures important data transmission when network congestion occurs.

Rating: Be the first to write a review!

Call for price

Call for price The price of this product is shared on request. Call or WhatsApp us and we will send the latest price and availability.

Showroom timingsMon–Sat 11:00 AM – 8:00 PM · Sunday closed

More info

Hikvision DS-3E0326P-E/M(C) - 24 Port Fast Ethernet Unmanaged POE Switch.

Intelligent PoE Management When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
Up to 300 m Long Range PoE Transmission The distance between IPCs and switch can reach maximum 300 meters.
4/8-Core Adaptive Power Supply with Less Power Loss 8-core power supply reduces the power loss on cables
6 KV Surge Protection to Improve Reliability in Harsh Environment The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
Design for Video Transmission VIP port ensures important data transmission when network congestion occurs.

General
Shell	Metal material
Net Weight	1.90 kg (4.20 lb)
Gross Weight	2.65 kg (5.84 lb)
Dimensions (W × H × D)	335.0 mm × 44.5 mm × 226.0 mm (13.19'' × 1.75'' × 8.90'')
Operating Temperature	0 °C to 45 °C (32 °F to 113 °F)
Storage Temperature	–40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	100~240 VAC, 50/60 Hz, Max. 4 A
Max. Power Consumption	250 W
Power Consumption in Idle	20 W
Installation Mode	Desk-Mounted,Wall-Mounted
Surge Protection	6 KV
Network Parameters
Ports	24 × 10/100 Mbps PoE port,1× Gigabit RJ45 port,1 × Gigabit combo
MAC Address Table	8 K
Switching Capacity	8.8 Gbps
Packet Forwarding Rate	6.55 Mpps
Internal Cache	4 Mbits
Dialing Function
Long Range	Ports 17 to 24 : up to 300 m. Long range performance may vary depend on camera model or cable condition.
Port Isolation	Ports 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 24: auto detect and restart the cameras that do not respond.
PoE Power Supply
PoE Standard	IEEE 802.3af;IEEE 802.3at
PoE Power Pin	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	PoE: Ports 1 to 24
Max. Port Power	30 W
PoE Power Budget	230 W

Specifications as published by Hikvision for model DS-3E0326P-E/M(C).
