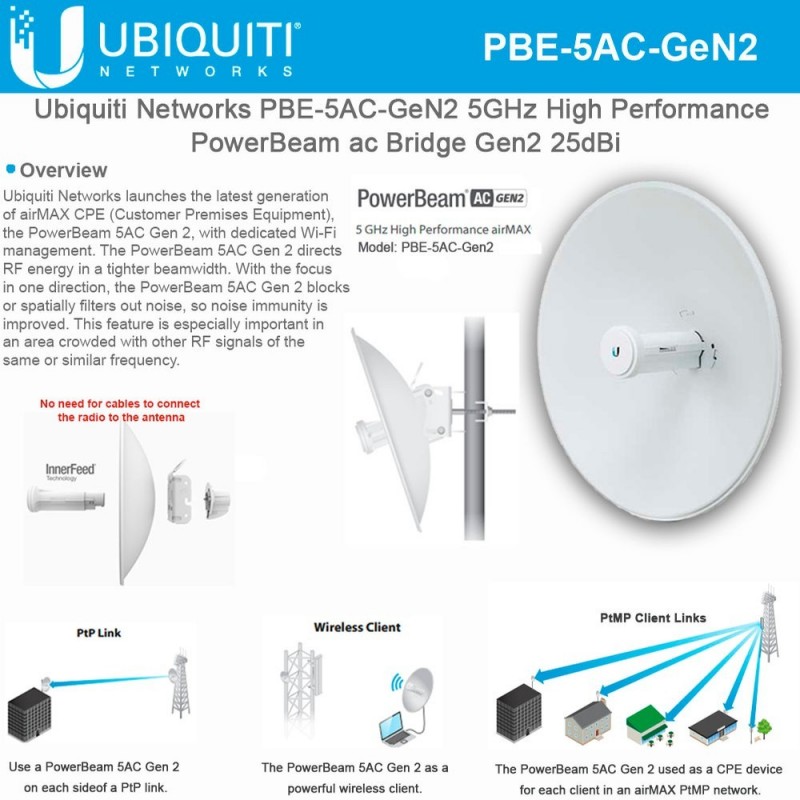

The Ubiquiti Networks airMAX PowerBeam Gen 2 is an ideal product for CPE deployments requiring maximum performance. Utilizing InnerFeed technology to integrate the radio into the feedhorn of the antenna, there is now need for extra cables, improving performance thanks to no cable loss. It requires no tools for assembly, requiring only a single wrench for pole-mounting.

Product Specifications
• Dimensions: 420 x 420 x 230mm (16.54 x 16.54 x 9.06")
• Weight: 2.22kg (4.89lbs)
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)
• Max. Power Consumption: 8.5W
• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
• Supported Voltage Range: 20 to 26VDC
• Gain: 25dBi
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Processor Specs: MIPS 74Kc
• Memory: 64MB
• LEDs: Power, Ethernet, (4) Signal Strength
• Channel Sizes:
    PtP Mode: 10/20/30/40/50/60/80MHz
    PtMP Mode: 10/20/30/40MHz
• Enclosure Characteristics:
    Antenna Feed: Outdoor UV Stabilized Plastic
    Dish Reflector: Powder-Coated SPCC
• Mounting: Pole-Mounting Kit (included)
• Wind Loading: 380N @ 200km/h (85.4lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
• ESD/EMP Protection: Air: ±24kV / Contact: ±24kV
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• RoHS Compliance: Yes
• Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
• Vibration Test: IEC 68-2-6
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40°C (104°F), Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
• Certifications: CE, FCC, IC
• Operating Frequency:
    2412 - 2472MHz
    USA U-NII-1: 5150 - 5250MHz
    USA U-NII-2A: 5250 - 5350MHz
    USA U-NII-2C: 5470 - 5725MHz
    USA U-NII-3: 5725 - 5850MHz

Product Includes:
• (1) Dish Reflector
• (1) Antenna Feed
• (1) Rear Housing
• (1) Adjustment Bracket
• (1) Mounting Bracket
• (4) Hex Bolts with Washers
• (1) Pole Clamp
• (2) Long Carriage Bolts
• (2) Flange Nuts
• (1) Gigabit PoE (24V, 0.5A) with Mounting Bracket
• (1) Power Cord
• (1) Quick Start Guide
