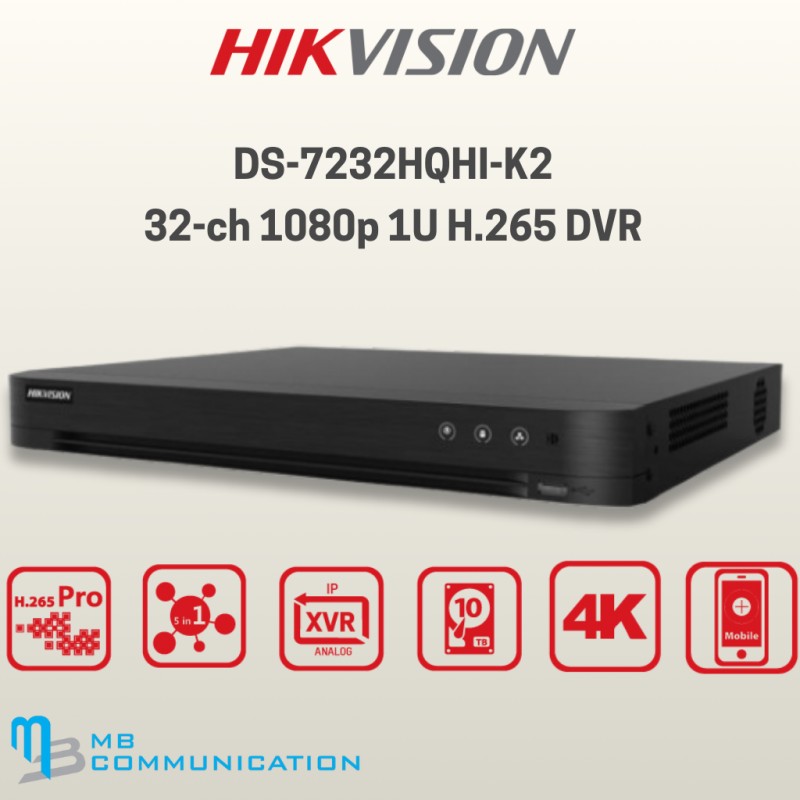

Hikvision DS-7232HQHI-K2
32-ch 1080p 1U H.265 DVR
(Support 2MP and 5MP)
Rating:
Be the first to write a review!
- 100% genuine, brand-new stock
- Delivered across Pakistan
- Showroom: TechnoCity, Karachi
- Bulk & corporate pricing on request
More info
Hikvision DS-7232HQHI-K2 overview
32-ch 1080p 1U H.265 DVR
- 32 channels and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 40 network cameras can be connected
Specification
Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding ResolutionWhen 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
- Frame RateMain stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access: ,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
- Video Bit Rate32 Kbps to 6 Mbps
- Dual StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bit Rate64 Kbps
Video And Audio
- IP Video Input8-ch (up to 40-ch),Up to 6 MP resolution,Support H.265+/H.265/H.264+/H.264 IP cameras,
- Analog Video Input32-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- HDMI/VGA OutputVGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, ,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback16-ch
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),,resolution: PAL: 704 × 576, NTSC: 704 × 480,
Network
- Remote Connections128
- Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface1,RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 10 TB capacity for each disk
- Alarm In/OutN/A
- USB InterfaceFront panel: 1 × USB 2.0;,Rear panel: 1 × USB 3.0
- Serial InterfaceRS-485 (half-duplex)
General
- Power Supply12 VDC
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimensions (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- Weights (Without HDD)≤ 2 kg (4.4 lb)
- Consumption(Without HDD)≤ 65 W
Hikvision DS-7232HQHI-K2 price in Pakistan
Rs 67,080 Same price in every city · updated 04 September 2025
- Delivery2–5 working days after your order is confirmed, depending on your city and the courier you choose.
- CitiesDelivered all over Pakistan: Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad, Multan, Peshawar, Quetta, Hyderabad, Sialkot, Gujranwala and every other city.
- PaymentCash on delivery or bank transfer. Invoices on request.
- WarrantyGenuine Hikvision product with brand warranty.
