View larger

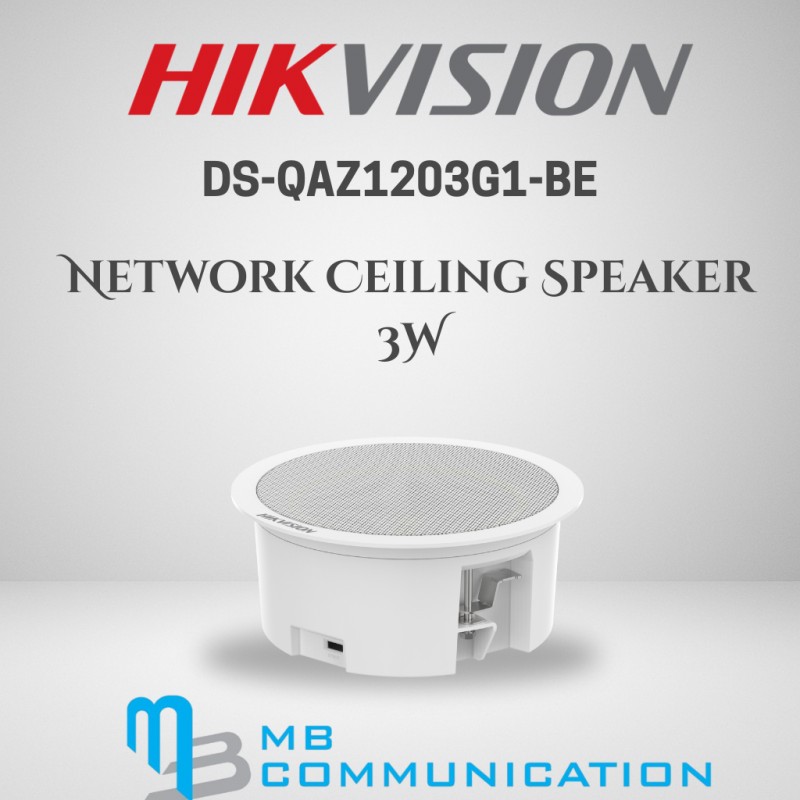

Hikvision DS-QAZ1203G1-BE
Network Ceiling Speaker 3W
- Full frequency 5′′ × 1
- Rated Power: 3W
- Sensitivity(1 m, 1 W): 110 dB
- Max. SPL: 97 dB
- Frequency Response: 300 Hz to 15 kHz
- Support PoE
Rating:
Be the first to write a review!
- 100% genuine, brand-new stock
- Delivered across Pakistan
- Showroom: TechnoCity, Karachi
- Bulk & corporate pricing on request
More info
Hikvision DS-QAZ1203G1-BE overview
Hikvision DS-QAZ1203G1-BE - Network Ceiling Speaker 3W.
Key Features
- Full frequency 5′′ × 1
- Rated Power: 3W
- Sensitivity(1 m, 1 W): 110 dB
- Max. SPL: 97 dB
- Frequency Response: 300 Hz to 15 kHz
- Support PoE
- Support schedule/live/emergency broadcast, alarm linkage, TTS
- White
Specifications
| Speaker | |
|---|---|
| Rated Power | 3 W |
| Impedance | 8 Ω |
| Max. Acoustic Pressure | 97 dBSPL |
| Sensitivity(1 m, 1 W) | 93 dB |
| Direction | All directions |
| Frequency Response | 300 Hz to 15 kHz |
| SNR | 82 dB |
| Speaker Unit | Full frequency 5′′ × 1 |
| Coverage Angle | Conical Coverage: 130° |
| Function | |
| Audio Algorithm | AEC、AGC、ANS、DRC |
| Audio Bit Rate | G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps) Sampling bit width: 16 bits |
| Audio File Format | MP3, WAV |
| NTP Timing | Support |
| Broadcast | Regular broadcast, live broadcast, emergency broadcast |
| Speech Synthesis | Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French |
| Network | |
| Network Protocol | IPv4, HTTP, HTTPS , SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH |
| Interface Protocol (API) | ISAPI, ISUP, SIP, RTP,ONVIF |
| Client | Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone |
| Functions | |
| Audio Function | Supports digital noise reduction, manually adjustable for 5 gears to ensure communication/audio quality. |
| Communication | |
| Communication Method | Support wired network and bluetoothcommunication |
| Audio | |
| Number of Sub Speaker | PoE+（802.3at） 25W: support 3* 3W sub speakers 12 V, 1.5 A, max. 18W: support 3* 3W sub speakers |
| Sub Speaker Connection Method | Impedance Input |
| Interface | |
| Ethernet Interface | RJ45 10 M/100 M Adaptive Ethernet port × 1 |
| Local Storage | Built-in 4 GB EMMC (Audio file storage is 1 GB.) |
| API | ISAPI, ISUP, SIP,ONVIF |
| Alarm | Alarm input × 2 |
| Audio In | 3.5 mm audio interface × 1 |
| Audio Out | Fixed resistance output × 1，phoenix terminal，8 Ω *The primary speaker(3 W, 8 Ω) can be connected to a maximum of 3 secondary speakers(3 W, 8 Ω). |
| General | |
| Power | PoE: 802.3at，12 VDC/1.5 A |
| Material | Device body: plastic; Mesh cover: metal |
| Mounting Hole Dimension | Ø160 mm (6.30") |
| Language | 41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese |
| Dimension | Ø179 mm × 73.5 mm (Ø7.05" × 2.89") (Hole size: 160 mm） |
| Package Dimension | 255mm × 243mm × 175mm (10.04" × 9.57" × 6.89") |
| With Package Weight | Approx. 0.5 kg (1.1 lb.) |
| Color | White |
| Packing List | Device × 1 Mesh cover × 1 Regulatory Compliance and Safety Information × 1 |
| Bluetooth | Bluetooth 5.0, 10 m |
| Operating Temperature | -10 °C to 50 °C(14 °F to 122 °F) |
| Operating Humidity | ＜90% (No condensation) |
| Mounting Depth | 127 mm (5") |
Specifications as published by Hikvision for model DS-QAZ1203G1-BE.
Hikvision DS-QAZ1203G1-BE price in Pakistan
Rs 17,160 Same price in every city · updated 28 January 2026
- Delivery2–5 working days after your order is confirmed, depending on your city and the courier you choose.
- CitiesDelivered all over Pakistan: Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad, Multan, Peshawar, Quetta, Hyderabad, Sialkot, Gujranwala and every other city.
- PaymentCash on delivery or bank transfer. Invoices on request.
- WarrantyGenuine product with brand warranty.
