New product

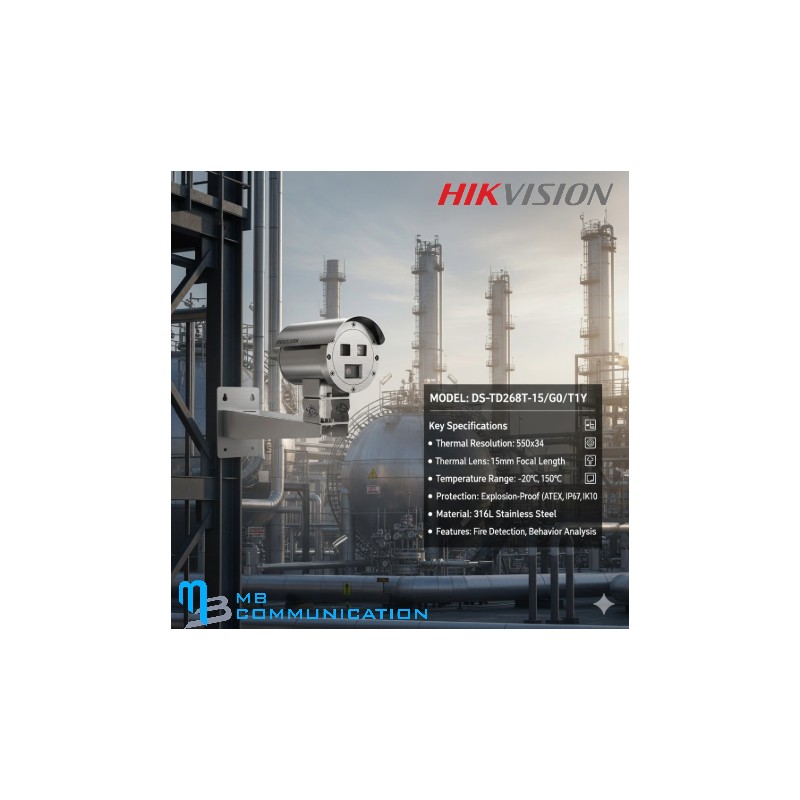

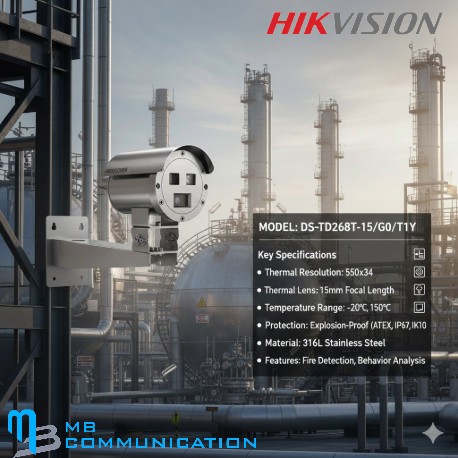

DS-2TD2568T-15/G0/T1Y Explosion-Proof Thermographic Thermal & Optical Bi-spectrum bullet camera
series are applied to perimeter protection and fire-prevention in critical infrastructures such as: oil industry, mine
fields, chemical industry, port, grain processing industry, and so o

More details

In Stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

DS-2TD2568T-15/G0/T1Y Features and Benefits

Features:

DS-2TD2568T-15/G0/T1Y Description

Specification
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 640 x 512
Pixel Pitch 12 μm
NETD ≤ 25 mK (@25° C,F# = 1.0)
Focal Length 15 mm
IFOV 0.8 mrad
Aperture F1.0
Field of View 29.7° × 23.6° (H × V)
Min. Focusing Distance 3 m
Digital Zoom x2, x4
Optical Module
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688 × 1520
Min. Illumination Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON)
Field of View 51.6° × 28°(H × V)
Focal Length 6.4 mm
WDR 120 dB
Image Effect
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Target Coloration Yes. Supported in white hot and black hot mode.
EIS Thermal channel supports EIS, exclusive with all smart functions
Illuminator
IR Distance Up to 30m
IR Intensity and Angle Automatically adjusted
Smart Function
VCA 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting),
up to 8 VCA rules.
Temperature Measurement 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1
line).
Temperature Range -20°C to 650°C (-4°F to 1,202°F)
Temperature Accuracy Max (± 2°C, ± 2%)
Fire Detection Dynamic fire detection, up to 10 fire points detectable
Smoke Detection Support smoke detection on optical channel
Interface
Alarm Input 2-ch inputs (0 to 5 VDC)
Alarm Output 2-ch relay outputs, alarm response actions configurable
Alarm Action SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Audio Input Mic in/Line in interface. Line input: 2 to 2.4V[p-p], output impedance:1 KΩ ± 10%
Audio Output Linear Level; Impedance: 600 Ω
