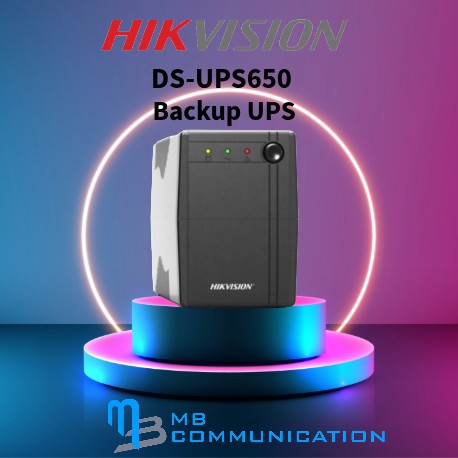

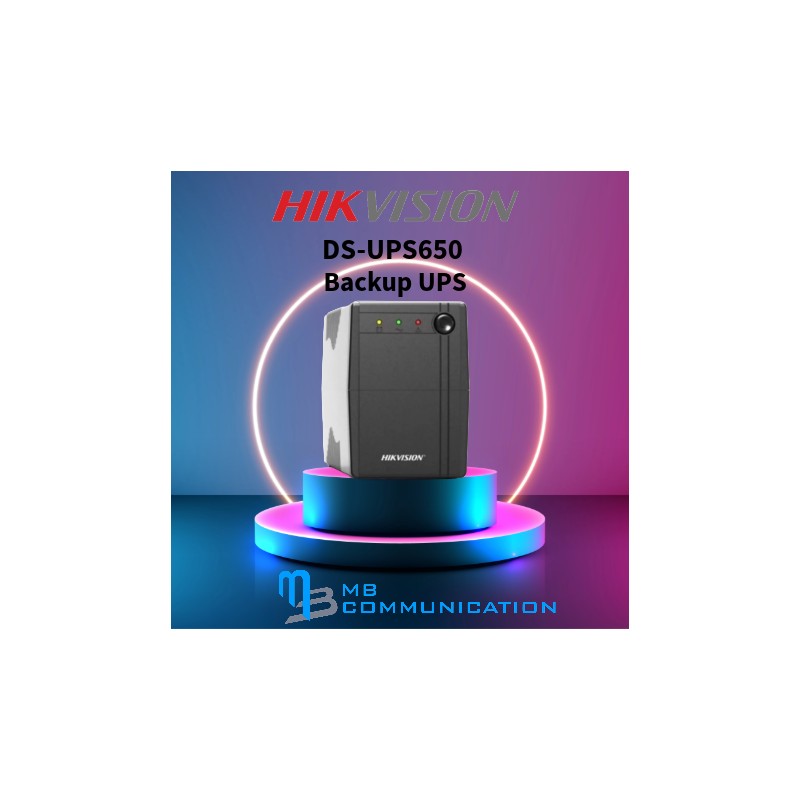

HIKVISION DS-UPS650 | 650VA / 360W UPS | Dry Battery | Line-Interactive | Reliable Backup Power for PCs, Routers, and DVRs

 Built-in AVR
 Super fast charging
 Wide input voltage range
 Overload protection
 Short circuit protection
 Surge protection

More details

Out Of Stock

Whatsapp MB WhatsApp

Rs 11,960

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

DS-UPS650 Features and Benefits

Features:

DS-UPS650 Description

 Specification
Model DS-UPS650-Q/T
Power UPS Capacity 650 VA / 360 W
Input
Input Voltage
Range 140 VAC to 290VAC ±5VAC
Input
Frequency 50/60 Hz self-adaptive
Plug Type UK version: UK TYPE G plug
EU version: Schuko plug
Output
Output
Frequency 50/60 Hz self-adaptive
Transfer Time typical 2-6 ms, 10 ms max
Waveform Simulated Sine Wave
Output
Voltage Range 198VAC to 242VAC
Outlet Type Universal
Outlet
Number 2
Battery
Battery Type 12 V/7 Ah *1 pcs, lead-acid battery
Recharge
Time 4-6 hours recover to 90% capacity
Typical
Backup Time
Run time at 30w: 89 min
Run time at 60w: 38 min
Run time at 150w: 8 min
Interface Communicate
Ports No
Protection Full
Protection Short circuit, Surge protection, Overload protection, Overcharge and overdischarge protection
Indicator
Display LED
Alarm
Charging Mode (DC mode): Sounding every 6 seconds
Low Battery: Sounding every second
Overloading Mode: Sounding every 0.5 seconds
Fault: Continuously sounding
General
Operating
Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating
Humidity 0% to 90% (non-condensing)
Dimension 335 mm × 87 mm × 143 mm (13.35" × 3.43" × 5.63")
Weight Approx. 4.6 kg (10.1 lb)
