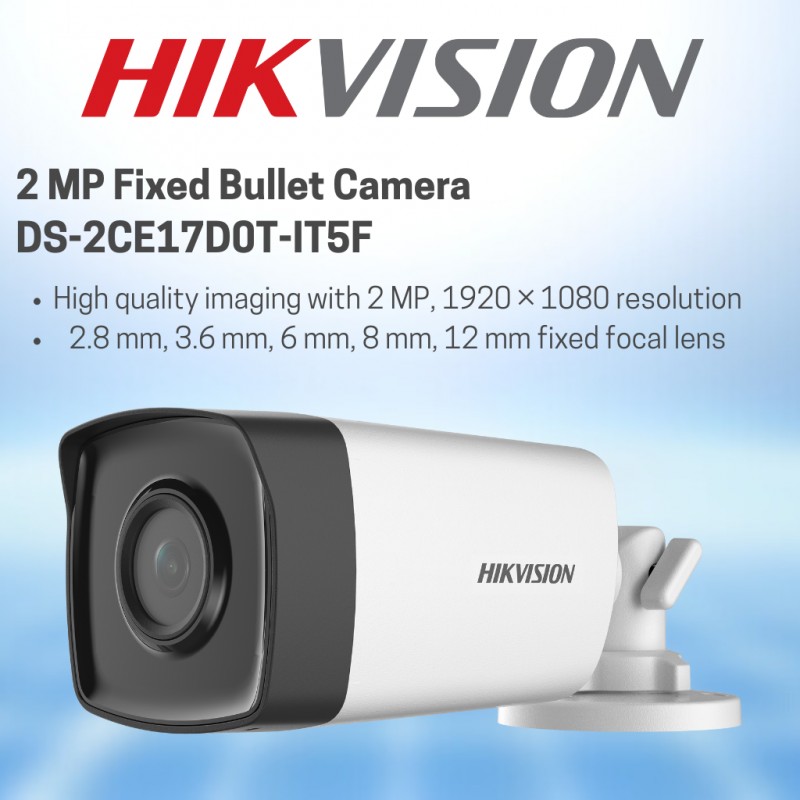

Hikvision DS-2CE17D0T-IT5F

2 MP Fixed Bullet Camera

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 3.6 mm, 6 mm, 8 mm, and 12 mm fixed lens
• Up to 80 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

Specification

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50,000 s

  NTSC: 1/30 s to 1/50,000 s

• Day & NightICR
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
• Signal SystemPAL/NTSC

• Lens
• Lens Type3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
• Focal Length & FOV

  3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

  6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°

  8 mm, horizontal FOV: 39.9°, vertical FOV: 21.9°, diagonal FOV: 46.5°

  12 mm, horizontal FOV: 24.6°, vertical FOV: 13.9°, diagonal FOV: 28.1°

• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate

  TVI: 1080P@30fps, 1080P@25fps

  CVI: 1080P@30fps, 1080P@25fps

  AHD: 1080P@30fps, 1080P@25fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• Noise ReductionYes
• White BalanceAuto/Manual
• AGCYes

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• Material

  Front Cover: Metal

  Main Body: Plastic

• Dimension78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
• Approx. 320 g (0.71 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ± 25%
• ConsumptionMax. 4.7 W
• IR RangeUp to 80 m

• Approval
• ProtectionIP67
