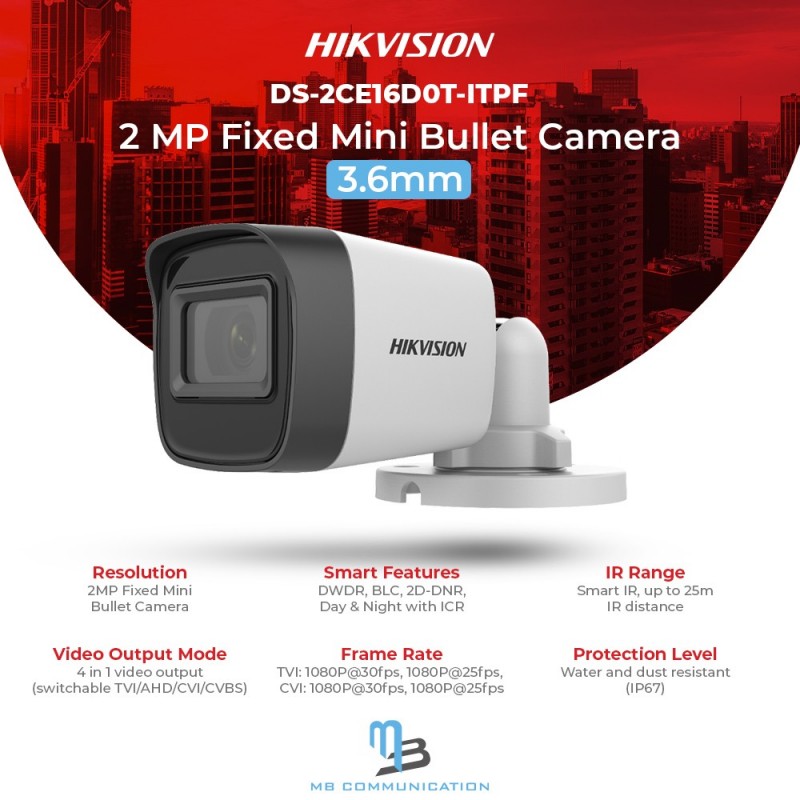

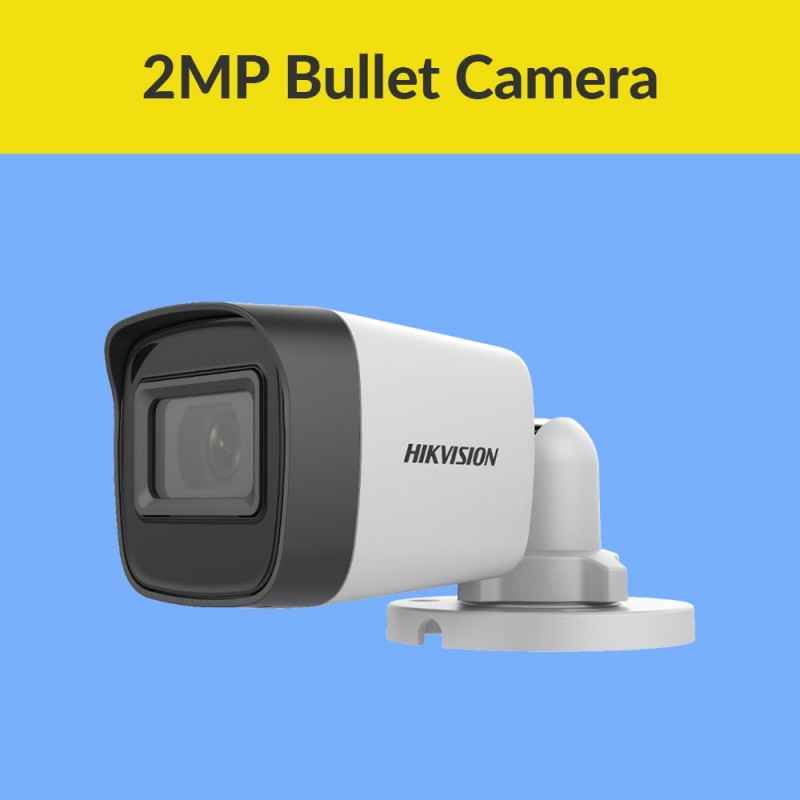

Hikvision DS-2CE16D0T-ITPF

Specification

• Camera
• Image Sensor: 2MP CMOS

• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

• Shutter Time

  PAL: 1/25 s to 1/50,000 s

  NTSC: 1/30 s to 1/50,000 s

• Day & Night: ICR

• Angle Adjustment: Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
• Signal System: PAL/NTSC

• Lens
• Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens

• Focal Length & FOV

  2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°

  3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

  6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8°

• Lens Mount: M12


• Image
• Image Parameters Switch: STD/HIGH-SAT

• Image Settings: Brightness, Sharpness, Smart IR

• Frame Rate

  TVI: 1080P@30fps, 1080P@25fps

  CVI: 1080P@30fps, 1080P@25fps

  AHD: 1080P@30fps, 1080P@25fps

  CVBS: PAL/NTSC

• Day/Night Mode: Auto/Color/BW (Black and White)

• Wide Dynamic Range (WDR): Digital WDR

• Image Enhancement: BLC, HLC

• White Balance: ATW/MANUAL

• AGC: Support


• Interface
• Video Output: Switchable TVI/AHD/CVI/CVBS


• General
• Material: Plastic

• Dimension: 57.9 mm × 60.9 mm × 138.8 mm (2.28" × 2.39" × 5.47") (Approx. 141 g (0.31 lb.)

• Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)

• Communication: HIKVISION-C

• Language: English

• Power Supply: 12 VDC ± 25%

• Consumption: Max. 2.2 W

• IR Range: Up to 25 m


• Approval
• Protection: IP67
