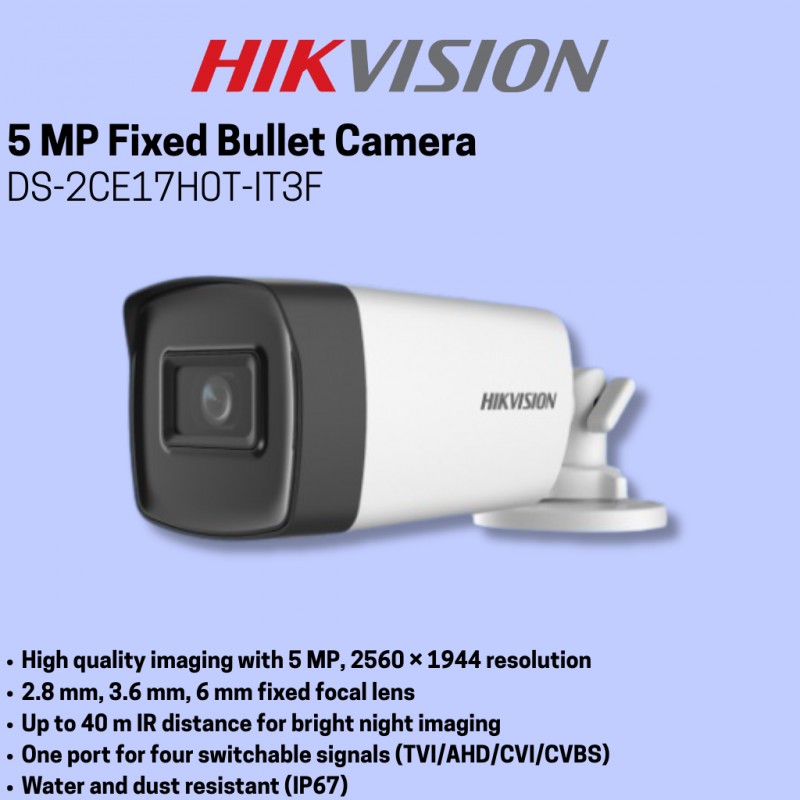

Hikvision DS-2CE17H0T-IT3F

Specification

• Camera
• Image Sensor: 5 MP CMOS
• Max. Resolution: 2560 (H) × 1944 (V)
• Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & Night: ICR
• Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
• Signal System: PAL/NTSC

• Lens
• Lens Type: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°

  3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°

  6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°

  8 mm, horizontal FOV: 41°, vertical FOV: 31°, diagonal FOV:52°

  12 mm, horizontal FOV: 26°, vertical FOV: 19°, diagonal FOV:32°

• Lens Mount: M12

• Image
• Image Parameters Switch: STD/HIGH-SAT
• Image Settings: Brightness, Sharpness, Mirror, Smart IR
• Frame Rate

  TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

  AHD: 5M@20fps, 4M@30fps, 4M@25fps

  CVI: 4M@30fps, 4M@25fps

  CVBS: PAL/NTSC

• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): Digital WDR
• Image Enhancement: DWDR/BLC/HLC/Global
• Noise Reduction: Yes
• White Balance: Auto/Manual
• AGC: Support

• Interface
• Video Output: TVI/AHD/CVI/CVBS

• General
• Material

  Front Cover: Metal

  Main Body: Plastic

• Dimension: 78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53") (Approx. 330 g (0.73 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication: HIKVISION-C
• Language: English
• Power Supply: 12 VDC ± 25%
• Consumption: Max. 4.3 W
• IR Range: Up to 40 m

• Approval
• Protection: IP67
