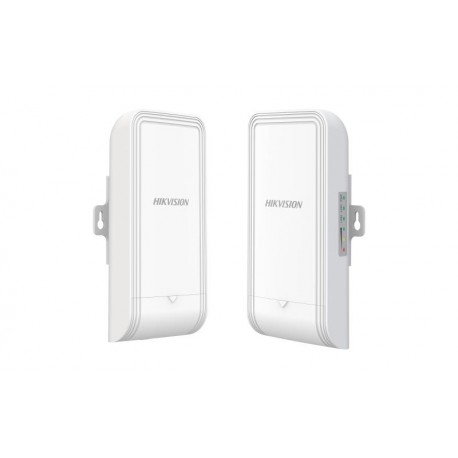

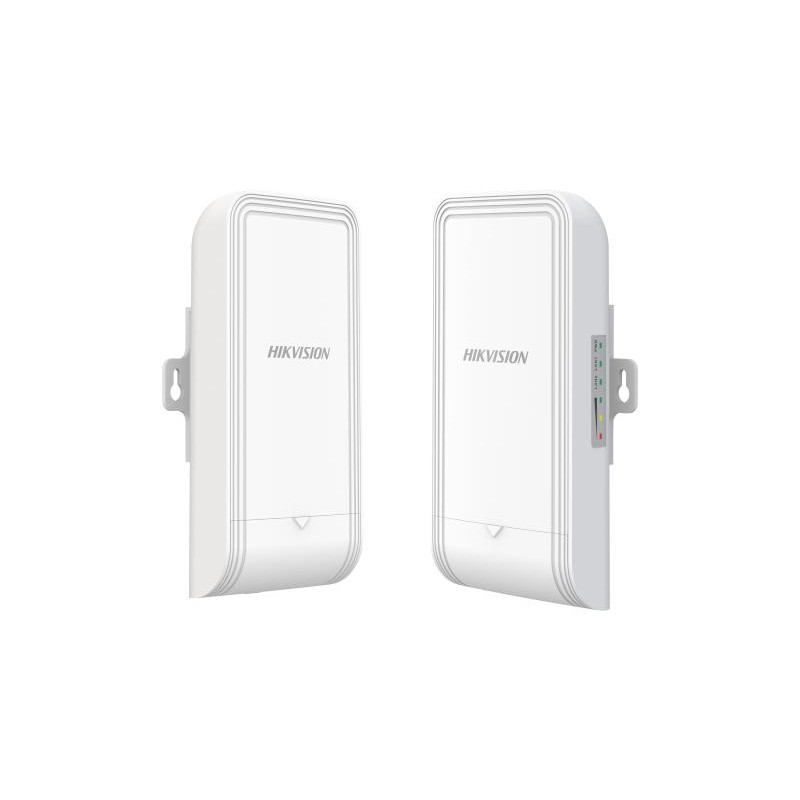

Hikvision DS-3WF02-5AC/D

Specification
Product Dimensions (W × H × D) 90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'')
Package Dimensions (W × H × D) 256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
Net Weight 0.26 kg (0.57 lb) per device
Gross Weight 1.1 kg (2.43 lb)
Packing List Wireless Bridge × 2,PoE Power Supply × 2,AC Cord × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 4
Packing Method Packing in pairs
Working Temperature -30 °C to 65 °C (-22 °F to 149 °F)
Working Humidity 5% to 95% (no condensation)
Storage Temperature -40 °C to 80 °C (-40 °F to 176 °F)
Storage Humidity 5% to 95% (no condensation)
Installation Mode Pole Mounting
Ingress Protection IP55
Power Consumption 2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W
Max. Transmission Rate of Air Interface ≤ 867 Mbps
Wireless Standard IEEE 802.11/a/n/ac
Working Frequency Band 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz,(Note: Available channel may vary with local regulations.)
Antenna Gain 12 dBi
Antenna Angle (H) Beamwidth [3 dB] 35°, (V) Beamwidth [3 dB] 35°
Transmitting Power 22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity -84 ±2dBm@AC80-MCS0
Throughput Rate PTP: 90 Mbps/0.5 KM(AC80),90 Mbps/1 KM(AC80),40 Mbps/5 KM(AC80),PTMP(1 to 4): 80 Mbps/1 KM(AC80)
Network Interface 2 × 10/100 Mbps RJ45 ports
LED Indicator Power indicator,LAN indicator,Signal intensity indicator
Reset Hardware resetting button
Power Supply 48V PoE/12~24V DC;Check the physical interface image below for more details.
Application Function IFM,IPM,DFS,TPC
Channel Width 20/40/80 MHz
Channel Selection Auto/manual selection
Security Mode WPA2-PSK
Security Mechanism Wireless network name hidden
Network Protocol NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
Management Method HCP,Web,iVMS-4200,HPP
System Log Syslog,Control center information
Upgrade Web,iVMS-4200,HCP,HPP
HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Reboot device 2. Restore device 3. Display the topology information 4. Display the connection status between AP and CPEs, including signal intensity, background noise, sending & receiving rate 5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power 6. Bridge alignment 7. Spectrum scanning 8. PoE output management
PoE Port AP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT
PoE Power Budget 10 W
PoE Distance 100 m
EMC CE-EMC(EN 55032, EN 55035, EN 61000-3-2, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4), IC(ICES-003, Issue 7)
Safety CB (IEC 62368-1),CE-LVD (EN 62368-1)
Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,EN 301 489-1, EN 55032, EN 55035, , EN 61000-3-2, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4, EN 50385, EN IEC 62311, EN 62368-1
