  8. Hikvision DS-2CD1T27G2H-LIU
Hikvision DS-2CD1T27G2H-LIU View larger

Hikvision DS-2CD1T27G2H-LIU

DS-2CD1T27G2H-LIU

New product

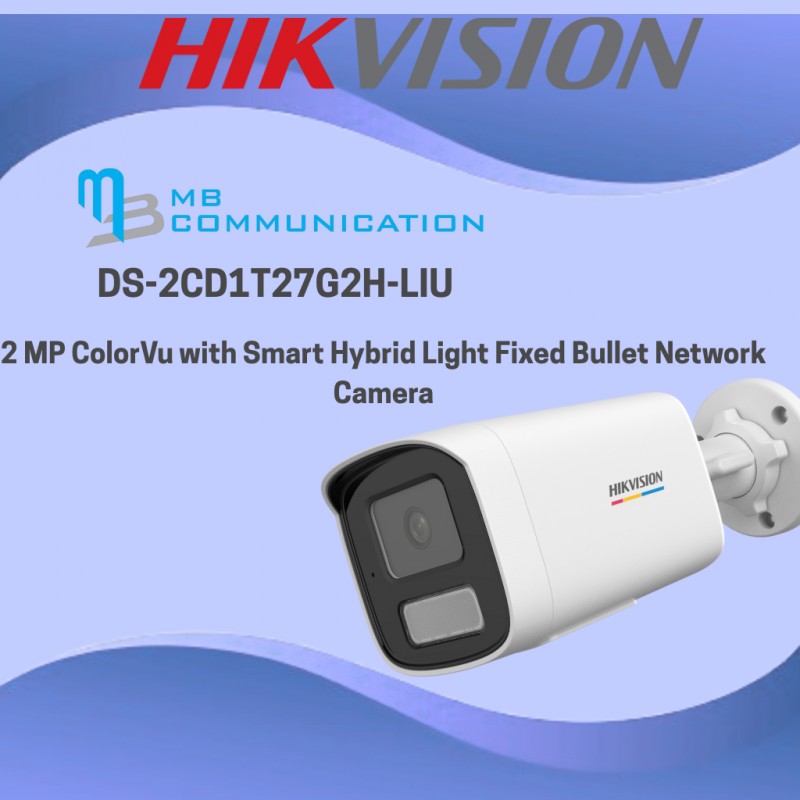

2 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology

More details

In Stock

Whatsapp MB WhatsApp

Rs 12,160

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1T27G2H-LIU Features and Benefits

Features:

Hikvision DS-2CD1T27G2H-LIU Description

CategorySpecification
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–355°, Tilt: 0°–180°, Rotate: 0°–355°
Lens Type Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV 2.8 mm: HFOV 115°, VFOV 60°, DFOV 143°; 4 mm: HFOV 94°, VFOV 50°, DFOV 110°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
DORI Distance 2.8 mm: D64 m / O25 m / R12 m / I6 m; 4 mm: D77 m / O30 m / R15 m / I7 m
Supplement Light Type IR, White Light
Supplement Light Range Up to 50 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream Video 50 Hz: 25 fps (1920×1080,1280×720); 60 Hz: 30 fps (1920×1080,1280×720)
Sub Stream Video 50 Hz: 25 fps (1280×720,640×480,640×360); 60 Hz: 24 fps (1280×720,640×480,640×360)
Video Compression Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Profiles Baseline, Main, High
H.265 Profile Main
Bit Rate Control CBR, VBR
ROI 1 fixed region (main stream)
Audio Type Mono
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz / 16 kHz
Noise Filtering Yes
Network Protocols IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S/T/G for F model), ISAPI, SDK
Users/Hosts Up to 32 (Admin, Operator, User)
Security Password, watermark, digest auth, MAC auth, audit log
Clients iVMS-4200, Hik-Connect
Web Browser Support IE 10/11 (plugin), Chrome 57+, Firefox 52+, Edge 89+
Image Settings Rotate, saturation, brightness, contrast, sharpness, gain, white balance
Day/Night Switch Auto, Day, Night, Schedule
Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Image Enhancements BLC, HLC, 3D DNR
Privacy Mask 4 programmable polygon masks
Ethernet Interface 1× RJ45 10/100M self-adaptive port
On-board Storage (F model) MicroSD/SDHC/SDXC, up to 512 GB
Built-in Microphone Yes
Reset Key (F model) Yes
Basic Events Motion detection (human/vehicle), tampering, exception
Event Linkage Upload to SD (F), FTP, trigger recording (F), email, capture
Power 12 VDC ±25% (0.52 A, Max 6.2 W), PoE IEEE 802.3af Class 3 (Max 7.5 W)
Material Front: metal; Body & Bracket: plastic
Dimensions (Camera) 81×83.7×201.96 mm (3.17"×3.29"×7.95")
Package Dimensions 150×150×141 mm (5.91"×5.91"×5.55")
Weight (Camera) 550 g (1.2 lb)
Weight (With Package) 800 g (1.8 lb)
Operating & Storage Conditions -30°C to 60°C (-22°F to 140°F), Humidity ≤95% (non-condensing)
Language Support English, Ukrainian
General Functions Heartbeat, anti-banding, mirror, password protection, reset via email
Certifications (EMC) CE-EMC, RCM, ICES-003
Certifications (Safety) CB IEC 62368-1, CE-LVD EN 62368-1, BIS IS 13252 (Part 1)
Environmental Compliance CE-RoHS, WEEE, Reach
Protection IP67 (IEC 60529:2013)
