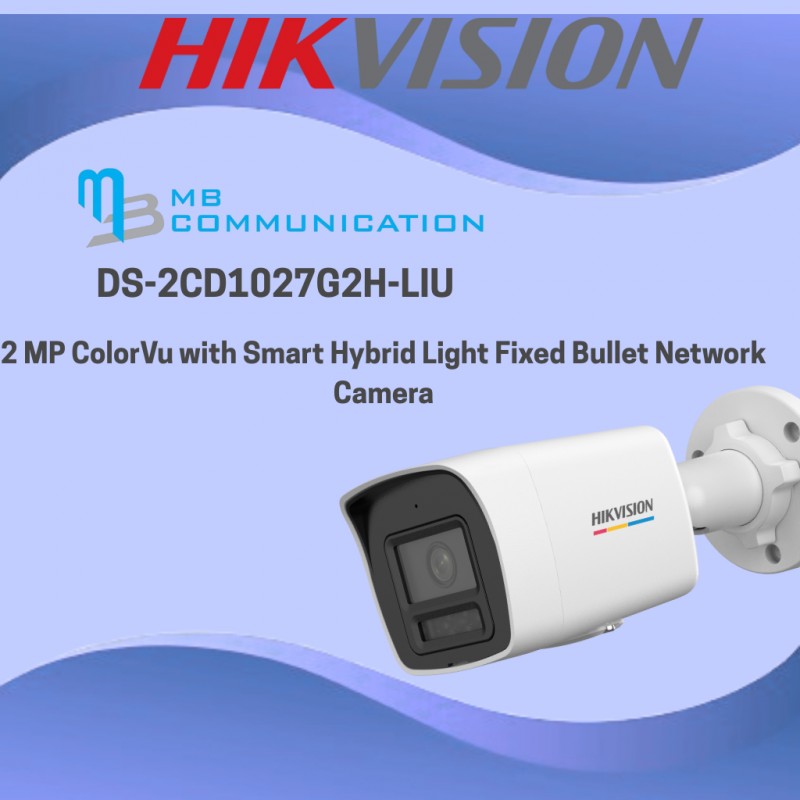

  8. Hikvision DS-2CD1027G2H-LIU
Hikvision DS-2CD1027G2H-LIU View larger

Hikvision DS-2CD1027G2H-LIU

DS-2CD1027G2H-LIU

New product

2 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology

More details

In Stock

Whatsapp MB WhatsApp

Rs 9,560

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1027G2H-LIU Features and Benefits

Features:

Hikvision DS-2CD1027G2H-LIU Description

CategorySpecification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°
Lens
Lens Type Fixed focal lens, 2.8 mm / 4 mm optional
Focal Length & FOV 2.8 mm: HFOV 115°, VFOV 60°, DFOV 143°4 mm: HFOV 94°, VFOV 50°, DFOV 110°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
DORI
2.8 mm D: 64 m, O: 25 m, R: 12 m, I: 6 m
4 mm D: 77 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (1920×1080, 1280×720)60 Hz: 30 fps (1920×1080, 1280×720)
Sub-Stream 50 Hz: 25 fps (640×480, 640×360)60 Hz: 24 fps (640×480, 640×360)
Video Compression Main: H.265+/H.265/H.264+/H.264Sub: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline, Main, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
ROI 1 fixed region for main stream
Audio
Audio Type Mono
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711), 16 Kbps (G.722.1), 16 Kbps (G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz / 16 kHz
Noise Filtering Yes
Network
Protocols IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S/T/G - only -F model), ISAPI, SDK
Users/Host Up to 32 users (Admin/Operator/User)
Security Password protection, watermark, MAC authentication, security audit log
Client Software iVMS-4200, Hik-Connect
Web Browser IE10/IE11 (plug-in), Chrome 57+, Firefox 52+, Edge 89+
Image Settings Rotate, saturation, brightness, contrast, sharpness, gain, white balance (via client/web)
Day/Night Switch Day, Night, Auto, Schedule
WDR Digital WDR
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 programmable polygon masks
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive port
On-board Storage -F: microSD/microSDHC/microSDXC, up to 512 GB
Built-in Mic Yes
Reset Key -F: Yes
Events
Basic Event Motion detection (human/vehicle), tampering, exception
Linkage Upload to memory card (-F), FTP, email, capture, notify surveillance center
General
Power 12 VDC ±25%, 0.45 A, max. 5.4 W; PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material Front: Metal, Body/Bracket: Plastic
Dimension 69.8×67.9×172.9 mm (2.7"×2.7"×6.8")
Package Dimension 150×150×141 mm (5.91"×5.91"×5.55")
Weight 550 g (1.2 lb), With package: 800 g (1.8 lb)
Storage Conditions -30°C to 60°C, ≤95% RH (non-condensing)
Operating Conditions -30°C to 60°C, ≤95% RH (non-condensing)
Language English, Ukrainian
General Functions Heartbeat, anti-banding, mirror, password reset via email
Approvals
EMC CE-EMC, RCM, IC (ICES-003)
Safety CB, CE-LVD, BIS
Environment CE-RoHS, WEEE, Reach
Protection IP67 (IEC 60529:2013)
