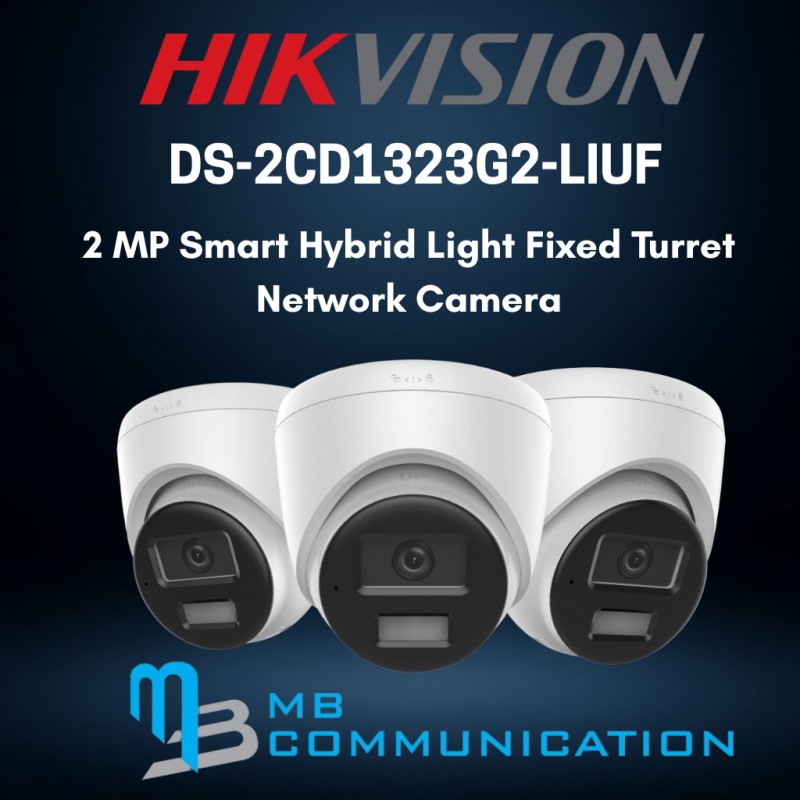

Hikvision DS-2CD1323G2-LIUF View larger

Hikvision DS-2CD1323G2-LIUF

DS-2CD1323G2-LIUF

New product

2 MP Smart Hybrid Light Fixed Turret Network Camera

  • High quality imaging with 2 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology

More details

In Stock

Whatsapp MB WhatsApp

Rs 10,190

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1323G2-LIUF Features and Benefits

Features:

Hikvision DS-2CD1323G2-LIUF Description

CategorySpecification
Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°
Lens
Lens Type Fixed focal lens, 2.8 mm or 4 mm optional
Focal Length & FOV 2.8 mm: H 103°, V 56°, D 121°; 4 mm: H 83°, V 44°, D 99°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
2.8 mm D: 45 m, O: 18 m, R: 9 m, I: 4 m
4 mm D: 56 m, O: 22 m, R: 11 m, I: 5 m
Illuminator
Supplement Light Type IR, White Light
Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50Hz: 25 fps (1920×1080, 1280×720); 60Hz: 30 fps (1920×1080, 1280×720)
Sub-Stream 50Hz: 25 fps (640×480, 640×360); 60Hz: 30 fps (640×480, 640×360)
Video Compression Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG
Bitrate 32 Kbps–8 Mbps
H.264 Profile Baseline, Main, High
H.265 Profile Main
Bitrate Control CBR, VBR
ROI 1 fixed region for main stream
Audio
Audio Type Mono
Sampling Rate 8 kHz / 16 kHz
Noise Filtering Yes
Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Bitrate 64 Kbps (G.711), 16 Kbps (G.722.1), 16 Kbps (G.726), 32–192 Kbps (MP2L2), 16–64 Kbps (AAC-LC)
Network
Security Password protection, watermark, digest authentication, security audit log, MAC authentication
Simultaneous Live View Up to 6 channels
API Support ONVIF (Profile S/T/G), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4/IPv6, UDP, QoS, FTP, SMTP
User/Host Up to 32 users (admin/operator/user)
Client iVMS-4200, Hik-Connect
Web Browser Live view: IE10/11; Local: Chrome 57+, Firefox 52+, Edge 89+
WDR Digital WDR
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancements BLC, HLC, 3D DNR
Settings Rotate, saturation, brightness, contrast, sharpness, gain, white balance (via client/web)
Privacy Mask 4 programmable rectangles
Interface
Ethernet 1×RJ45 10/100M self-adaptive port
On-Board Storage microSD/microSDHC/microSDXC, up to 512 GB
Built-in Mic Yes
Built-in Speaker Max 1.5 W, SPL 95 dB (10 cm)
Reset Key Yes
Event
Basic Events Motion detection (human/vehicle), tamper alarm, exception
Linkage Upload to FTP/memory, email, trigger recording/capture, audible warning, flashing light
General
Power 12 VDC ±25% (0.66 A, max 8 W), PoE IEEE 802.3af Class 3 (max 9.5 W)
Material Metal & Plastic
Dimension Ø110 × 102.7 mm (Ø4.33" × 4.04")
Package Dimension 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Weight 340 g (0.7 lb), with package 560 g (1.2 lb)
Storage Conditions -30°C to 60°C, ≤95% RH non-condensing
Operating Conditions -30°C to 60°C, ≤95% RH non-condensing
Language English, Ukrainian
Functions Heartbeat, anti-banding, mirror, password reset via email
Flashing Light Yes
Approvals
EMC CE-EMC, RCM, IC
Safety UL, CB, CE-LVD, BIS
Environment CE-RoHS, WEEE, Reach
Protection IP67
