  8. Hikvision DS-2CD1323G2-LIU
Hikvision DS-2CD1323G2-LIU View larger

Hikvision DS-2CD1323G2-LIU

DS-2CD1323G2-LIU

New product

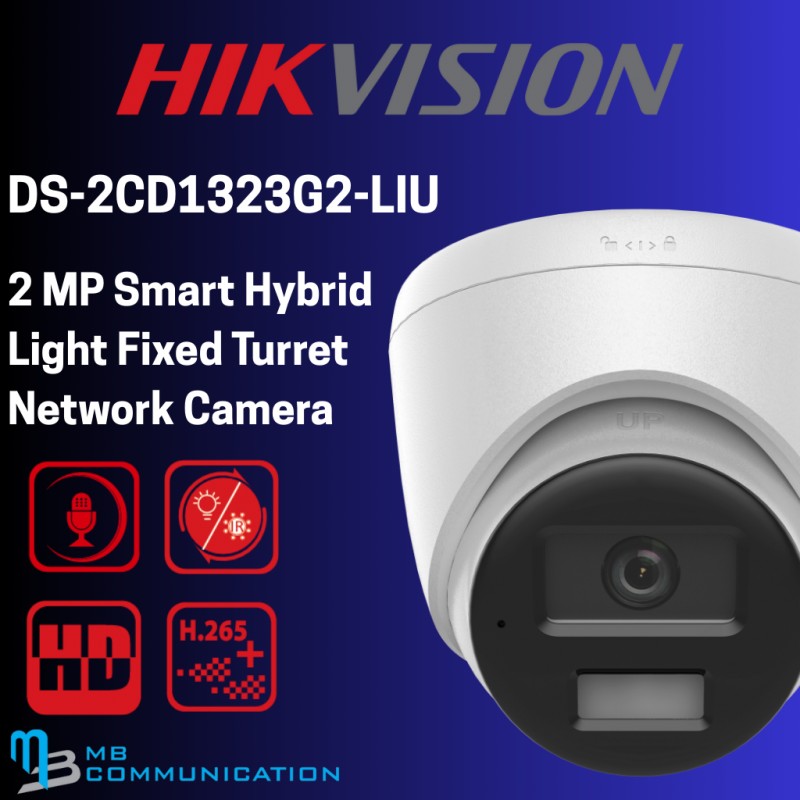

2 MP Smart Hybrid Light Fixed Turret Network Camera

  • High quality imaging with 2 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Built-in microphone for real-time audio security
  • Efficient H.265+ compression technology

More details

In Stock

Whatsapp MB WhatsApp

Rs 9,560

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1323G2-LIU Features and Benefits

Features:

Hikvision DS-2CD1323G2-LIU Description

CategorySpecification
Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°
Lens
Lens Type Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV 2.8 mm: H 103°, V 56°, D 121° 4 mm: H 83°, V 44°, D 99°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI 2.8 mm: D 45 m, O 18 m, R 9 m, I 4 m 4 mm: D 56 m, O 22 m, R 11 m, I 5 m
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (1920×1080, 1280×720) 60 Hz: 30 fps (1920×1080, 1280×720)
Sub Stream 50 Hz: 25 fps (640×480, 640×360) 60 Hz: 30 fps (640×480, 640×360)
Video Compression H.265+/H.265/H.264+/H.264 (Main) H.265/H.264/MJPEG (Sub)
Video Bit Rate 32 Kbps – 8 Mbps
H.264 Type Baseline, Main, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
ROI 1 fixed region (main stream)
Audio
Audio Type Mono sound
Noise Filtering Yes
Sampling Rate 8 kHz / 16 kHz
Compression G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC
Bit Rate 64 Kbps (G.711), 16–64 Kbps (others)
Network
Security Password protection, authentication, watermark, audit log
Simultaneous Live View Up to 6 channels
API ONVIF (S/T/G -F), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4/IPv6, UDP, QoS, FTP, SMTP
User/Host Up to 32 users (Admin/Operator/User)
Client iVMS-4200, Hik-Connect
Browser Support IE 10/11 (plugin), Chrome 57+, Firefox 52+
WDR Digital WDR
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Settings Rotate, saturation, brightness, contrast, sharpness, gain, WB (via client/web)
Privacy Mask 4 polygon masks
Interface
Ethernet 1 RJ45 10M/100M adaptive
On-board Storage MicroSD/SDHC/SDXC up to 512 GB (-F)
Microphone Built-in
Reset Key Yes (-F)
Event
Basic Event Motion detection (human/vehicle), tampering, exception
Linkage FTP/memory card, email, surveillance center, recording (-F), capture
General
Power 12 VDC ±25% (0.4A, max 5W), PoE IEEE 802.3af Class 3 (max 6.5W)
Material Metal & Plastic
Dimension Ø110 mm × 89.2 mm (Ø4.3" × 3.5")
Package Dimension 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Weight 340 g (0.7 lb), with package 560 g (1.2 lb)
Storage Conditions -30 °C to 60 °C, Humidity ≤ 95% (non-condensing)
Operating Conditions -30 °C to 60 °C, Humidity ≤ 95% (non-condensing)
Language English, Ukrainian
Functions Heartbeat, anti-banding, mirror, password reset via email
Approval & Protection
EMC FCC, CE-EMC, RCM, IC
Safety UL, CB, CE-LVD, BIS
Environment CE-RoHS, WEEE, REACH
Protection IP67
