  8. Hikvision DS-2CD1T43G2-LIUF
Hikvision DS-2CD1T43G2-LIUF View larger

Hikvision DS-2CD1T43G2-LIUF

DS-2CD1T43G2-LIUF

New product

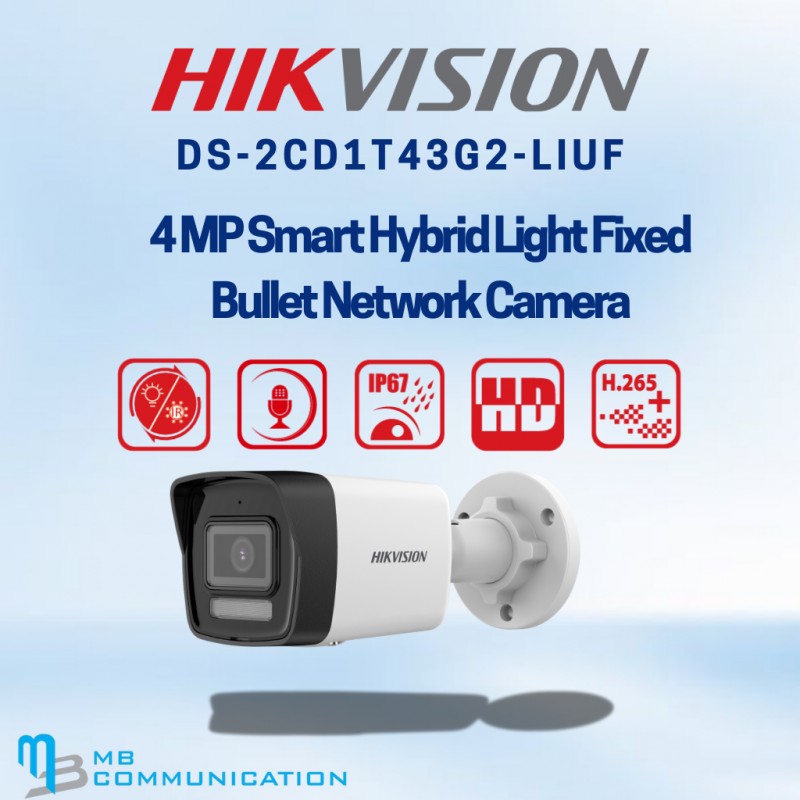

4 MP Smart Hybrid Light Fixed Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Support Human and Vehicle Detection
  • Smart Dual-Light: advanced technology with long range
  • Built-in microphone for real-time audio security

More details

In Stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1T43G2-LIUF Features and Benefits

Features:

Hikvision DS-2CD1T43G2-LIUF Description

CategorySpecification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0°–360°, Tilt: 0°–180°, Rotate: 0°–360°
Day & Night IR cut filter
Lens
Type Fixed focal lens, 4 mm or 6 mm optional
Aperture F1.6
Iris Type Fixed
Lens Mount M12
FOV (4 mm) H: 78°, V: 42°, D: 93°
FOV (6 mm) H: 49°, V: 26°, D: 57°
DORI (4 mm) D: 78 m, O: 31 m, R: 15 m, I: 7 m
DORI (6 mm) D: 128 m, O: 50 m, R: 25 m, I: 12 m
Illuminator
Range Up to 50 m
Type IR & White Light (Smart Supplement Light)
IR Wavelength 850 nm
Video
Main Stream 20 fps @ 2560 × 1440; 25/24 fps @ 1920 × 1080, 1280 × 720
Sub-Stream 25/24 fps @ 1280 × 720, 640 × 480, 640 × 360
Compression H.265+/H.265/H.264+/H.264, MJPEG
Profiles H.265: Main Profile; H.264: Baseline/Main/High
Bit Rate 32 Kbps – 8 Mbps (CBR/VBR)
ROI 1 fixed region
Audio
Compression G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC
Sampling Rate 8 kHz / 16 kHz
Bit Rate 16–160 Kbps depending on codec
Features Mono, noise filtering
Network
Interface 1 RJ45 10/100 Mbps
Browser Support IE 10/11 (plugin), Chrome 57+, Firefox 52+ (local service)
Client iVMS-4200, Hik-Connect
Protocols TCP/IP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Security Password protection, authentication, watermark, audit log
Users Up to 32 (Admin, Operator, User)
API ONVIF (S/T/G on -F model), ISAPI, SDK
Live View Up to 6 channels
Functions BLC, HLC, 3D DNR, WDR (120 dB), Privacy Mask (×4)
Settings Rotate, brightness, contrast, sharpness, gain, white balance
Day/Night Switch Auto/Schedule/Manual
SNR ≥ 52 dB
Interface
Storage -F: microSD up to 512 GB
Built-in Mic Yes
Reset Button -F: Yes
Events
Motion Detection Human/vehicle target type
Alarms Tampering, exception
Linkage FTP/microSD/email/recording (-F)
General
Power 12 VDC ±25% (0.5 A, max. 6 W), PoE (802.3af, Class 3, max. 7 W)
Material Metal & Plastic
Dimensions 83.7 × 80.7 × 205.6 mm
Weight 580 g (net), 635 g (packaged)
Operating Temp -30 °C to 60 °C, ≤95% RH (non-condensing)
Language English, Ukrainian
Functions Heartbeat, mirror, password reset via email
Certifications
Protection IP67 (IEC 60529)
EMC FCC, CE-EMC, RCM, IC
Safety UL, CB, CE-LVD, BIS
Environment CE-RoHS, WEEE, REACH
