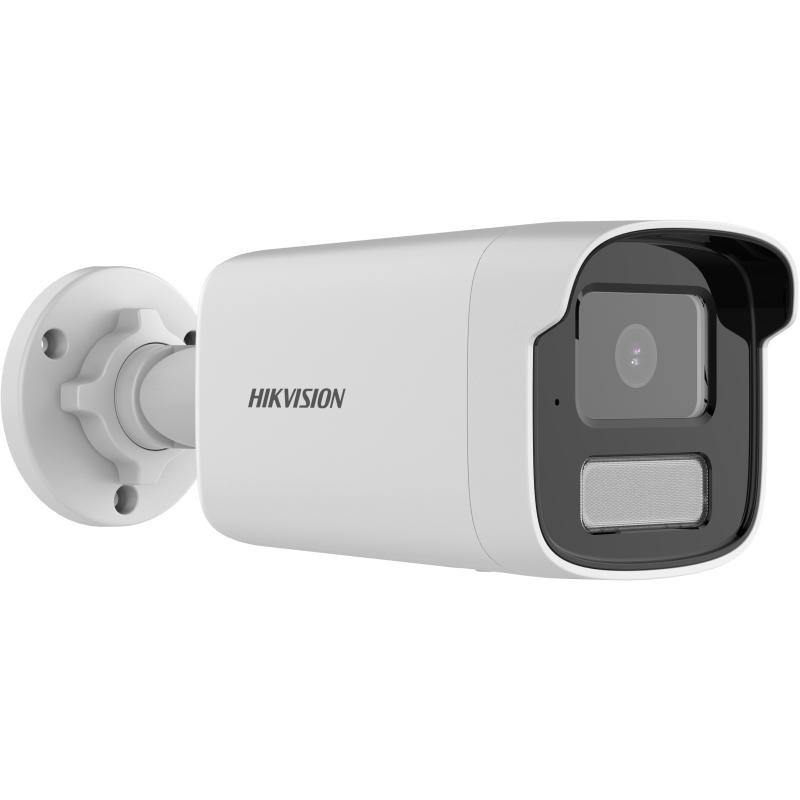

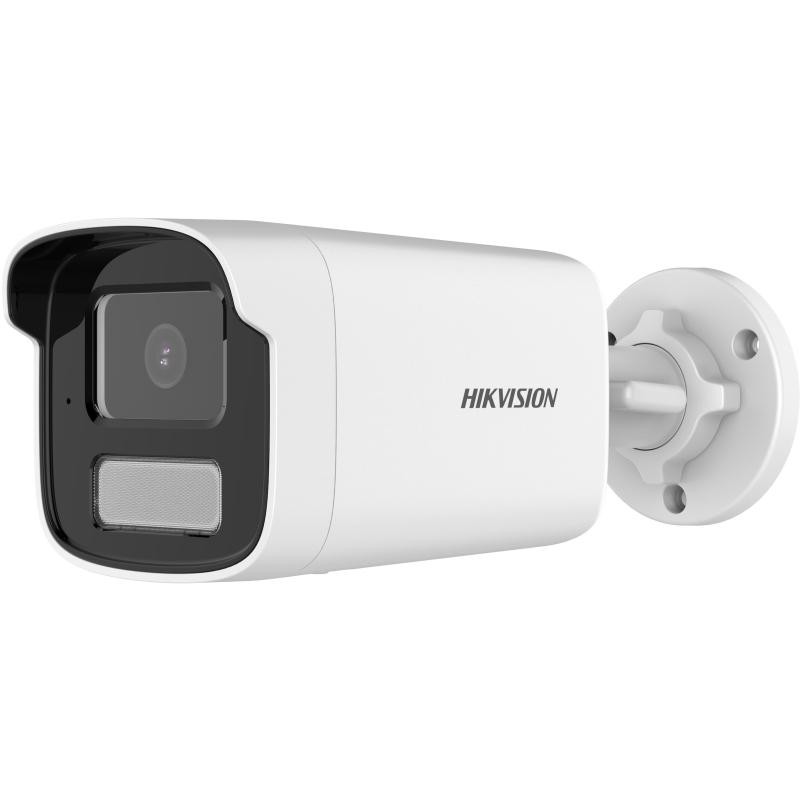

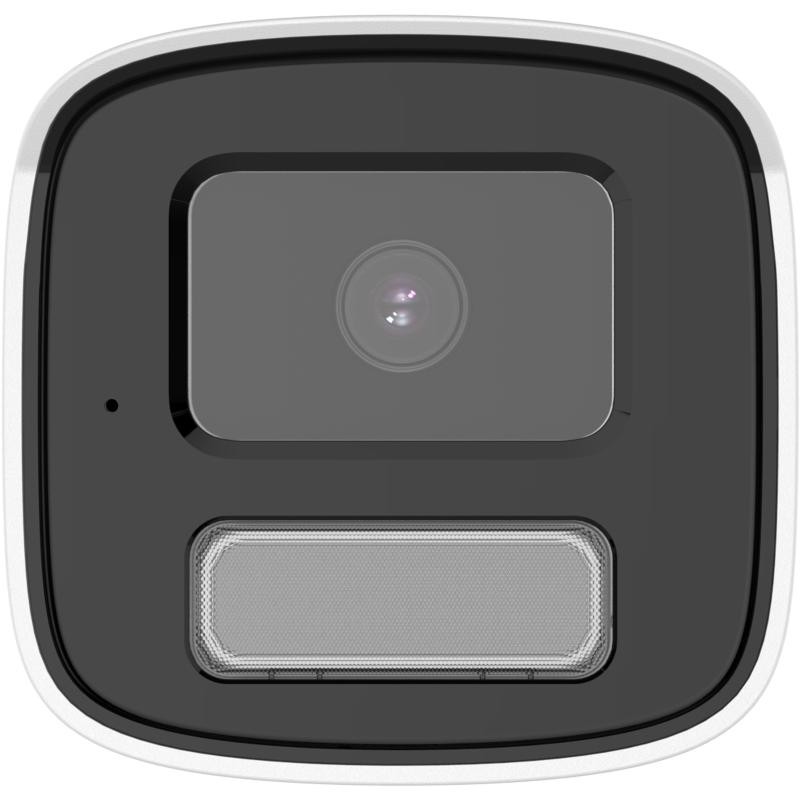

Hikvision DS-2CD1T43G2-LIU

Specification
Image Sensor 1/3" Progressive Scan CMOS
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Lens Type Fixed focal lens, 4 and 6 mm optional
Focal Length & FOV 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°; 6 mm, horizontal FOV 49°, vertical FOV 26°, diagonal FOV 57°
Aperture F1.6
Lens Mount M12
DORI 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m; 6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m
Supplement Light Type IR, White Light
Supplement Light Range Up to 50 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
Audio Type Mono sound
Built-in Microphone Yes
Environment Noise Filtering Yes
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 programmable polygon privacy masks
Basic Event Motion detection (alarm triggering by human and vehicle), video tampering alarm, exception
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
API Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
Client iVMS-4200, Hik-Connect
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users; 3 user levels: administrator, operator, and user
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Power 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 7 W
Material Metal & Plastic
Dimension 83.7 mm × 80.7 mm × 205.6 mm
Weight Approx. 580 g
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Protection IP67: IEC 60529-2013
